Framed Scroll Panel 500 x 1000mm, 12 x 6mm Flat Bar, Gate and Window Guard Infill

A complete decorative infill panel, ready to drop into a gate, railing or window guard. This panel is 1000mm high in 12 x 6mm flat bar. Two straight side legs 412mm apart are joined by a top and bottom rail, and inside them three bars sweep out into four large C-scrolls that form a bold flower shape, 500mm across at its widest, with small curls and forged collars. A pair of curled scrolls sits on the top rail as a crest, and the legs stand a little proud above and below the rails for welding or fixing. It comes in raw steel, ready to weld and finish. The price shown is for one panel.

Why fabricators use it

A whole bay in one piece. Frame, scrolls, collars and crest are already made up, so a single panel gives you a finished decorative section. Weld it into a gate frame or between posts and the job is most of the way done.

Straight legs make fitting simple. The two side legs are straight flat bar 412mm apart, so the panel sits square against a gate stile, post or neighbouring panel and welds along its length.

Works singly or in a row. One panel fills the centre of a garden gate; two or three side by side make a window guard, balcony front or railing bay.

Takes any finish. Raw mild steel can be painted, powder coated or hot-dip galvanised to match the rest of the job.

Where it is used

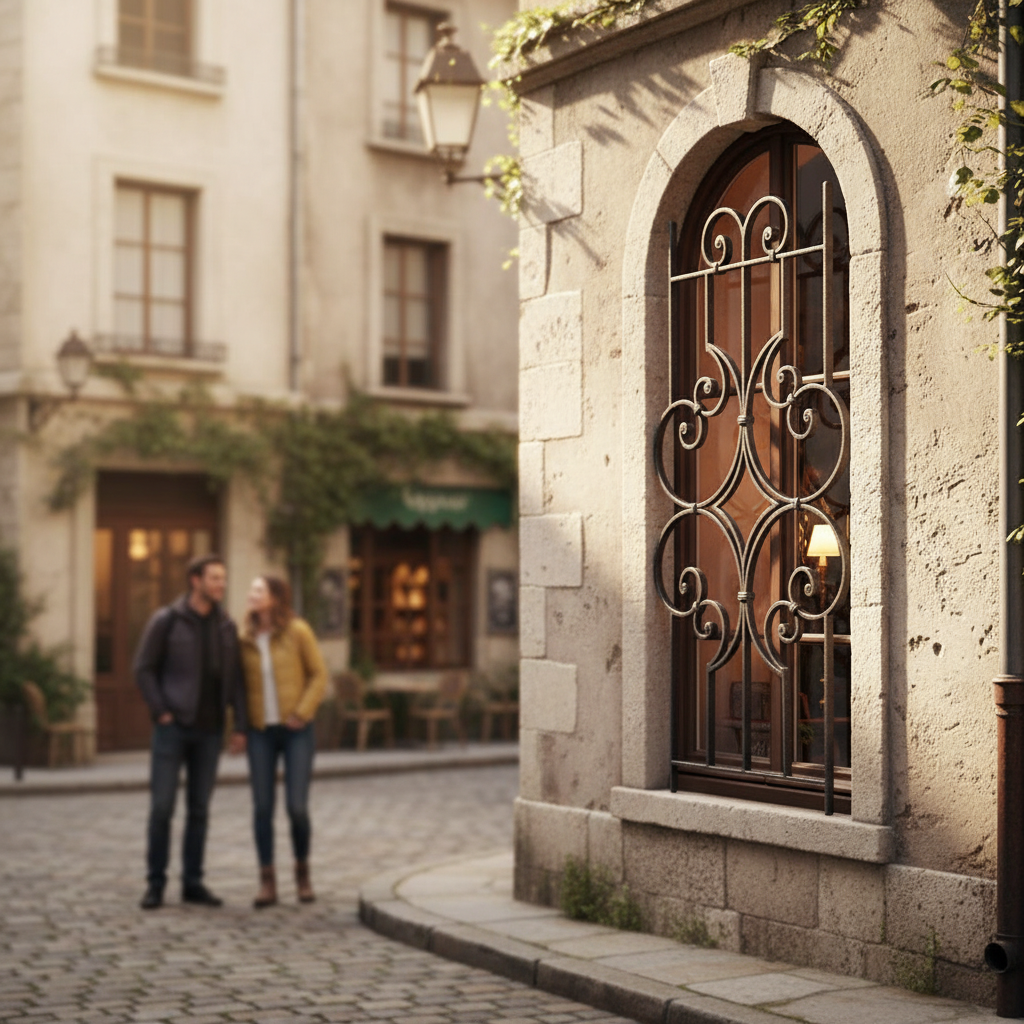

Infill for single garden and side gates, window guards and security grilles on period houses, Juliet balcony fronts, railing bays between posts, decorative screens and trellis, and fire surrounds or interior feature panels.

Specifications

How many do you need?

The big scrolls stand 44mm out past each leg, so allow for this when you set panels side by side or next to a post. Stairs, landings and balconies in homes: no gap may let a 100mm sphere pass. Some openings inside the scrolls are larger than that, so for domestic guarding check every opening with a 100mm gauge and add bars or a mesh backing where needed.

Choosing the right panel

Other larger panels in flat bar:

• 1000 x 470mm panel in 12 x 6mm flat bar
• 800 x 400mm panel for lower gates and window guards
• 1100 x 460mm panel in 16 x 8mm flat bar, taller and heavier
• 290 x 1000mm ornate scroll panel, a narrower centrepiece

See every design in our decorative panels range.

Fitting and care

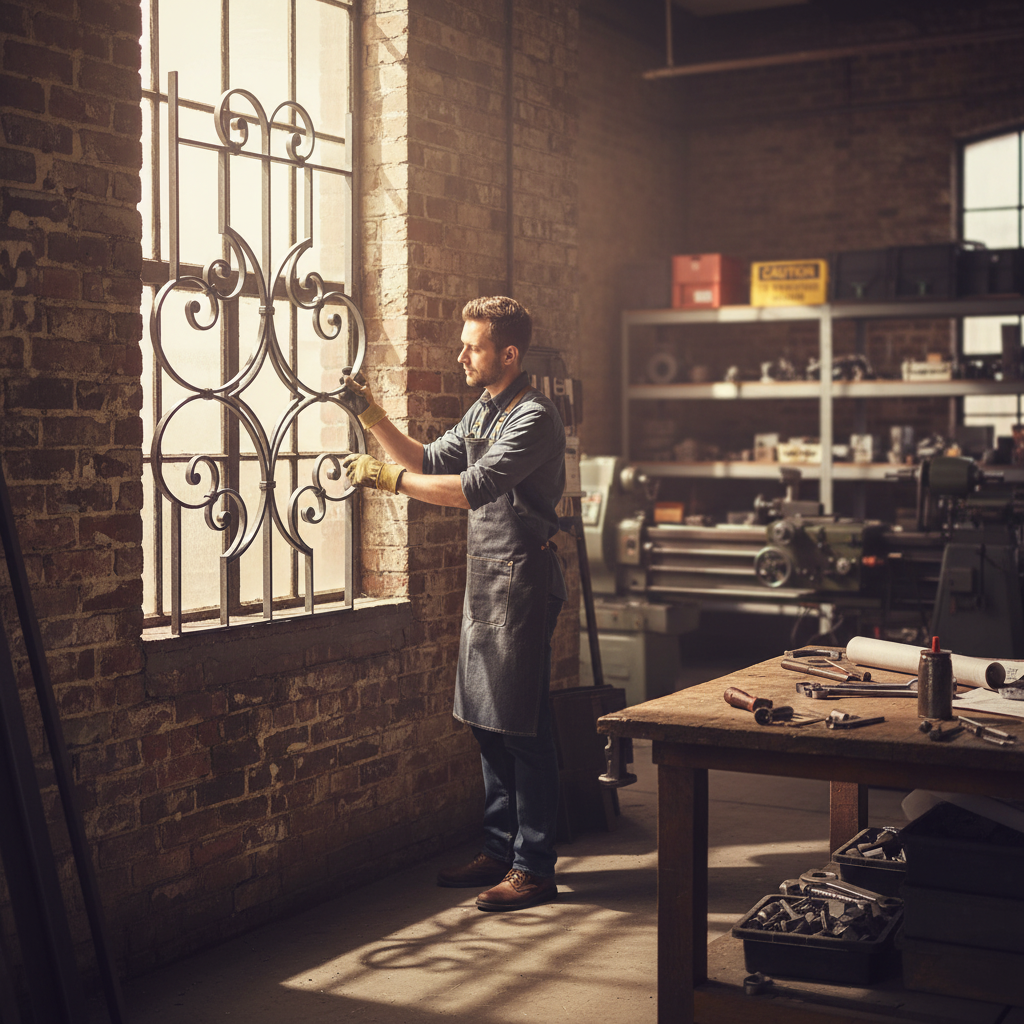

Offer the panel into the opening and check the legs are plumb. In a gate, weld the legs to the gate rails or stiles and tack the outer scrolls to the frame for stiffness. For a window guard, weld fixing lugs to the legs and bolt into the brick reveal with masonry anchors. Raw steel will rust if left bare, so finish it promptly. Outdoors, have it hot-dip galvanised, or degrease, prime with a zinc-rich or etch primer and top coat with metal paint, working paint into the collars and joints. Check paintwork each spring and touch up chips.

Frequently asked questions

Ordering and delivery

Order online with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For matching sets or a larger job, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm availability and delivery before you order.
