Acoustic Soundproofing Rubber Sheet – Up to 110dB Noise Reduction | Heavy Duty Sound Deadening, 2-25mm Thick, Sold Per Metre

Premium Acoustic Soundproofing Rubber Sheet Matting – Up to 110dB Noise Reduction

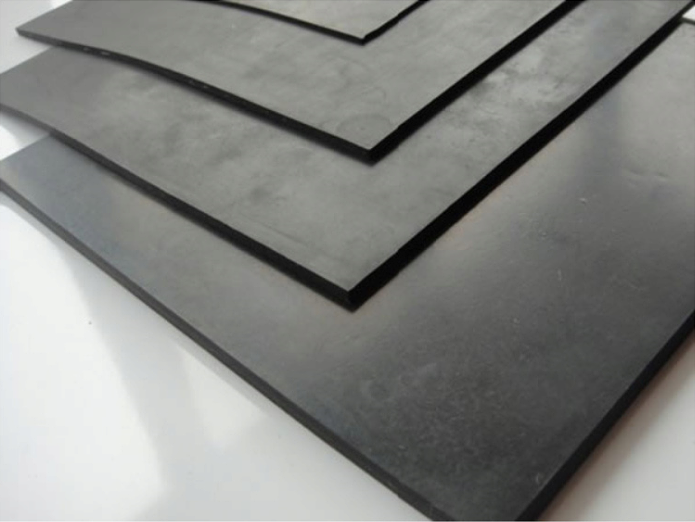

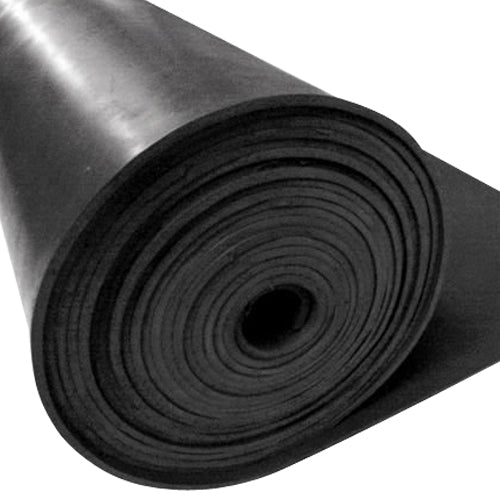

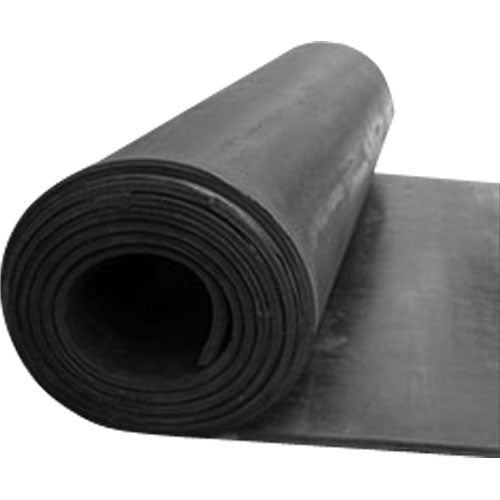

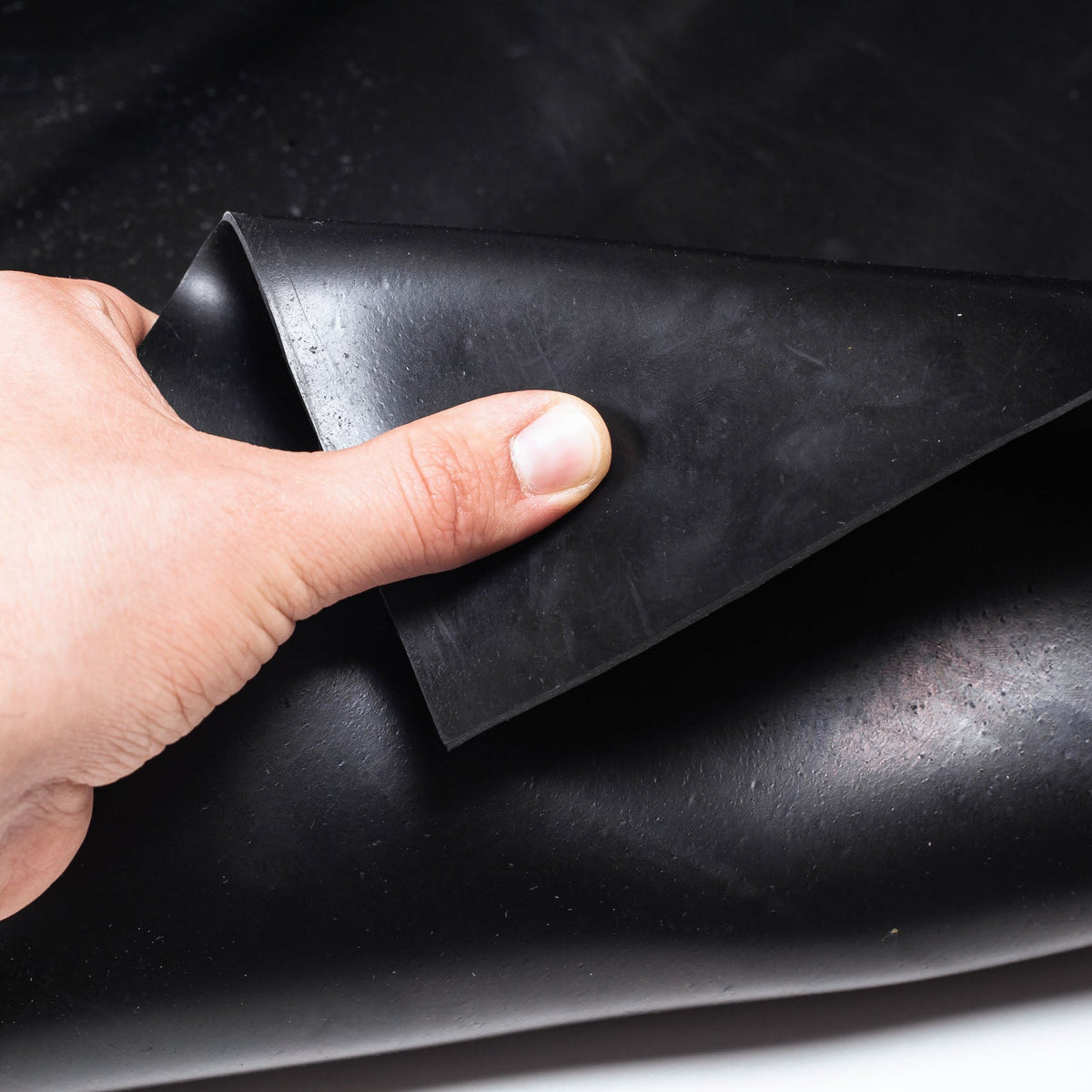

If you are responsible for a noisy compressor, pump set, generator, fan or machine enclosure, this is the layer that goes between the source of the noise and everything around it. It is a dense, flexible rubber sheet sold by the metre, which you cut on site with a utility knife and fit under plant, around guards, onto panels or across floors.

Achieve superior noise control with our heavy-duty acoustic rubber sheet matting, engineered to deliver up to 110dB sound reduction performance. Available in 12 thickness options from 2mm to 25mm, perfect for industrial facilities, factories, workshops, plant rooms and commercial premises where effective noise and vibration control is essential. Results shown are based on in-house testing as part of an installed floor system and vary depending on thickness and installation method.

• Thickness: 2mm to 25mm – use the guide below to match it to your job
• Width: 1.25m (3mm is also available 2.0m wide)
• Length: as many whole metres as you need – enter the metres as your quantity
• Price shown: per linear metre, including VAT

Quick Thickness Guide for Industrial Applications

• Vehicle, van & cab lining, panel damping: 2–4mm
• HVAC ductwork, air handlers & plant room treatment: 3–6mm
• Machinery enclosures & guard panel lining: 6–10mm
• Factory & workshop floors under equipment: 8–15mm
• Heavy machinery isolation, compressors, generators & equipment mounting: 12–25mm

Sound Reduction by Thickness Chart

How It's Sold – Ordering Guide for Trade & Industrial Buyers

• Sold per linear metre: choose your thickness, then enter the length you need in metres as the quantity. Example: for a 1.25m x 6m area, select your thickness and enter 6.
• Width: 1.25m on every thickness (2.0m wide also available in 3mm).
• Working out coverage: each metre ordered at 1.25m width covers 1.25m². Divide your total area (m²) by 1.25 to get the metres to order – or by 2.0 for the 3mm x 2.0m option. Allow a little extra for trimming around machinery and fixings.
• Cuts easily on site: trim to shape with a sharp utility knife – no specialist tools needed.
• Prices include VAT – ideal for business purchasing and site orders.
• Trade, bulk & project orders: large areas, multiple rolls and repeat site orders quoted on request – call 01744 520110 or email sales@industrialsuppliesco.co.uk.

How Many Metres Do I Need?

Find your floor, wall or panel area below and enter the metres as your quantity. Figures are rounded up to whole metres, before any allowance for trimming.

Covering a wide area in 3mm? The 2.0m width means fewer joins to seal, and joins are where noise most often gets through.

How Rubber Sheet Reduces Noise: The Three Jobs It Does

Noise problems are rarely just one thing, so it helps to know which job you need the sheet to do.

Blocking airborne noise. Sound passing through a wall, guard or panel has to move it. A dense, flexible layer makes that harder, which is why thicker sheet is the route for louder, lower-pitched sources such as compressors and generators.

Stopping vibration travelling. A machine fixed directly to a slab or steel frame makes that structure part of the noise source, and you hear it in rooms well away from the machine. A resilient layer between machine and structure reduces how much vibration gets through.

Damping panel ring. Thin sheet metal rings like a drum. Bonding rubber flat to the panel deadens it, which is why 2–4mm is the usual choice for machine guards, cabinets and thin steel enclosure panels: it does the job without adding much bulk or weight.

Real-World Noise Reduction Examples

Understanding Decibel (dB) Reduction

What does 110dB reduction mean? A reduction of up to 110dB represents exceptional soundproofing performance achieved with our 25mm thickness as part of an installed floor system (results vary by installation method). For context:

• 10 dB reduction: Perceived as approximately 50% quieter
• 20 dB reduction: Perceived as approximately 75% quieter
• 30+ dB reduction: Dramatic noise suppression – transforms loud industrial environments into comfortable workspaces
• Up to 110 dB reduction (installed floor system): Maximum-grade acoustic isolation – reduces even the loudest industrial machinery noise to near-silent levels in the space below

Key Benefits

• 12 Thickness Options: From 2mm to 25mm – choose the perfect thickness for your noise reduction needs
• Exceptional Sound Reduction: Up to 110dB noise attenuation with 25mm thickness for maximum acoustic control
• Heavy-Duty Construction: Industrial-grade rubber compound for long-lasting performance
• Versatile Applications: Ideal for walls, floors, ceilings, machinery enclosures, and equipment isolation
• Easy Installation: Flexible material cuts to size and installs quickly with adhesive or mechanical fixing
• Durable & Resilient: Resistant to oils, chemicals, moisture, and environmental wear
• Cost-Effective Solution: Professional-grade soundproofing at competitive UK prices
• Multi-Layer Capability: Stack multiple sheets for enhanced acoustic performance

Technical Specifications

Common Applications

• Industrial: Machinery noise control, factory soundproofing, equipment enclosures
• Commercial: Office acoustic treatment, retail space noise barriers, restaurant kitchens
• Workshops: Tool noise reduction, compressor rooms, fabrication areas
• HVAC: Air handler isolation, ductwork dampening, mechanical room treatment
• Automotive: Vehicle sound deadening, van conversions, mobile workshops
• Studios: Recording studios, practice rooms, broadcast facilities

Installation Guide

Simple 3-Step Process:

1. Measure & Cut: Measure your space and cut the acoustic rubber sheet to size using a sharp utility knife
2. Prepare Surface: Clean and dry the installation surface thoroughly for optimal adhesion
3. Install: Apply using acoustic adhesive, mechanical fixings, or double-sided tape depending on application

Getting the Result You Paid For

How the sheet is fitted matters as much as which thickness you buy. These are the checks worth making on any noise job:

• Seal the gaps. Sound takes the easiest route, so an open joint or cable hole can undo much of the gain. Butt joints tightly and seal them with acoustic sealant.
• Cover the whole face. Treating part of a wall or guard leaves a path around the sheet. Noise also travels through adjoining walls, floors and ducts, so look at those too.
• Do not bridge an isolating layer. A bolt running straight through the sheet gives vibration a direct path into the floor. If a machine must be bolted down, ask the machine maker about isolated fixings.
• Keep cooling clear. Never line over vents, louvres or motor cooling routes on an enclosure, and check the machine maker's guidance on airflow.
• Tell us the load. Compressive load figures are not published for this line. For heavy plant, give us the machine weight and foot size before you order.
• Measure before and after. Use a sound level meter at the same point with the machine at the same load, and keep the sheet as one part of your wider noise risk assessment.

Frequently Asked Questions (FAQ)

Why Choose Our Acoustic Rubber Matting?

Experience the difference of professional-grade soundproofing materials. Our acoustic rubber sheets combine proven noise reduction technology with industrial durability, giving you a reliable solution that performs year after year. With 12 thickness options from 2mm to 25mm, you can select the exact level of noise control you need. Whether you're controlling machinery noise, creating a quieter workspace, or meeting workplace noise regulations, this heavy-duty matting delivers measurable, quantifiable results.

UK-based industrial supplies specialist with competitive trade pricing, and expert technical support. Order your acoustic soundproofing rubber sheet today and transform your noisy environment into a controlled, comfortable, compliant space.

Ordering & Delivery

Choose your thickness, enter the metres you need as the quantity and add to cart. The delivery charge is shown at checkout before you pay. For large areas or repeat site orders, call 01744 520110 for a project quote.

Compliance & Standards

Suitable for applications requiring noise control in accordance with UK workplace noise regulations (Control of Noise at Work Regulations 2005).
