Description

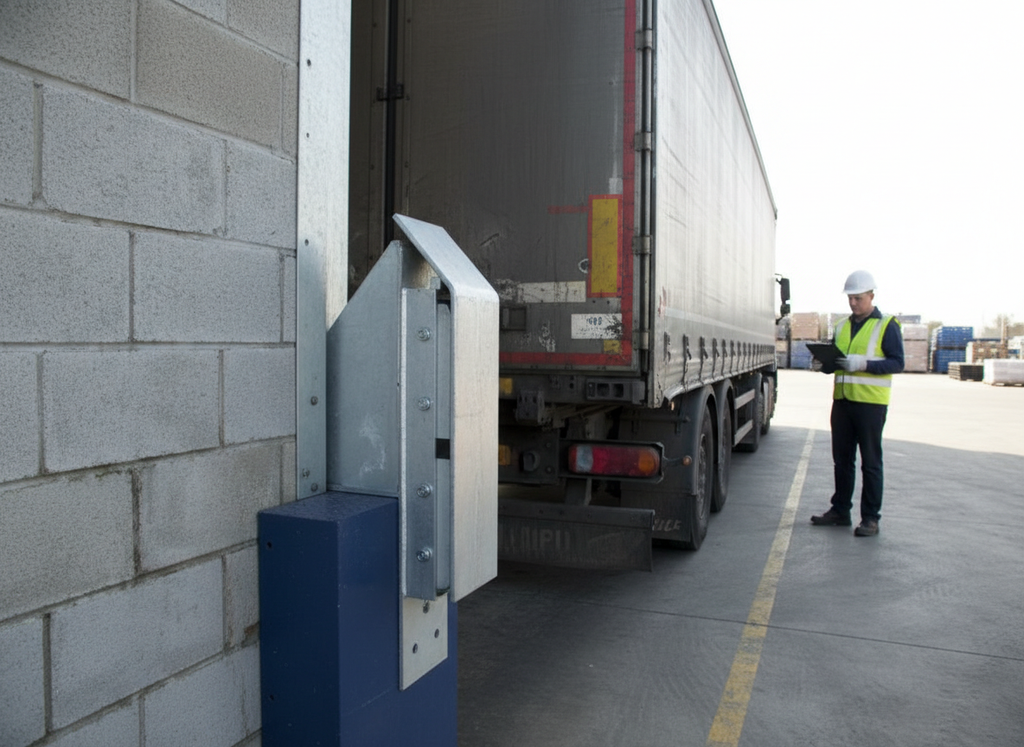

When HGV trailers ride up over ordinary bumpers, this one stands about 560mm above the dock to stop them. It is an extremely large and robust dock bumper for bays where trailers override by a considerable height. Despite the steel construction it can still compress, because there is a rubber core behind the steel hood. The fixings are included free. It suits warehouse managers, site maintenance teams and loading bay installers with docks where smaller bumpers get overrun or destroyed.
- 960 x 590 x 200mm, weighing 85kg
- Free fixings included: nine M16 through-anchor studs and nine washers
- Stands about 560mm above the dock and goes 400mm below it
- Steel hood over a conveyor belt rubber core
- 450mm base plate and large gusset on top of the dock
- Nine fixing holes, 20mm, taking M16 anchor bolts
- Sold singly, and most doors use two
Why It Works
Made for trailers that override
Air-suspended trailers can ride well above dock level, so a low bumper never gets touched and the trailer meets the building or the leveller instead. This bumper carries its steel face about 560mm above the dock top, so a high trailer still meets steel.
Steel outside, rubber core inside
Solid steel would pass the shock straight into your dock. Here a conveyor belt rubber core sits behind the 12.5mm steel hood, so compression is still possible and it absorbs impact while the steel takes the wear.
A big gusset to carry the load
A bumper this tall needs holding at the top. A large triangular gusset runs back to a 450mm base plate on the dock surface, with six of the nine fixing holes in it. So the load goes into the top of the dock as well as its face.
Load figures
No compression or load figure is published for this line. If your specification needs one, call us before you order.
Where It's Used

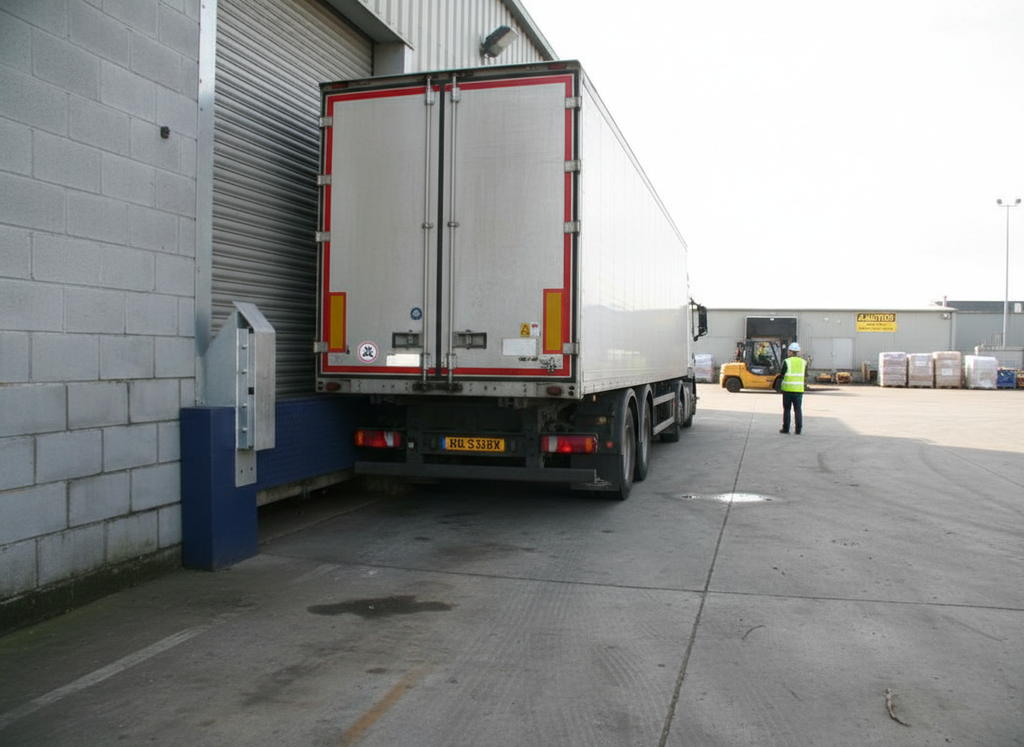

This bumper goes either side of a dock leveller or door opening, on bays that see trailers overriding: busy distribution centres, supermarket and parcel depots, and sites taking a wide mix of trailer heights. Before you order, check the door, its seals and any leveller frame clear a bumper standing about 560mm above the dock, and that there is 450mm of solid dock top behind the face.
Specifications
| What you get | One complete bumper: hood, rubber core, back plate, gusset and base plate, plus free fixings |
|---|---|
| Size | 960 tall x 590 deep x 200mm wide |
| Weight | 85kg |
| Material | Steel with a conveyor belt rubber core |
| Above the dock top | About 560mm |
| Below the dock top | 400mm |
| Base plate on the dock | 450mm long, with six 20mm holes |
| Lower plate on the dock face | Three 20mm holes |
| Fixing holes | Nine in all, taking M16 anchor bolts or studs |
| Stand-off from wall | About 137mm: 127mm plus the 10mm back plate |
| Hood plate | 12.5mm steel |
| Wall fixings | Free fixings included: 9 M16 through-anchor studs, 125 to 140mm long, and 9 washers (50mm OD, 16mm ID, 3mm thick) |
| Load rating | Not published for this line |
| SKU | R_ISP535 |
| Sold as | Each |
Dimensions are indicative. Check them against your dock before ordering.
Is This the Right Bumper?
| Your situation | Choose |
|---|---|
| Trailers overriding by a considerable height | This 960 x 590 x 200mm bumper |
| A smaller steel hood, about 280mm above the dock | 730 x 280 x 140mm bumper with a steel hood |
| Wider and shorter, with a steel front plate | 620 x 360 x 140mm steel dock bumper |
| A low friction yellow face that slides with the trailer | 760 x 275 x 165mm sliding bumper |
| Plain conveyor belt, no steel front | 900 x 400 x 105mm laminated bumper |
| Several doors, or spares to hold on site | Call us and we will go through the quantities |
You can also browse all dock bumpers.
Installation, Use & Care
At 85kg this is a mechanical lift, so plan for it. Fit one each side of the dock opening, with the base plate flat on the dock top and the lower plate flat against the dock face. Sit it in place and mark through the holes before you drill, because the hole positions are not dimensioned. All nine holes are 20mm, and the free M16 through-anchor studs and washers are for fixing into sound concrete. Have a competent installer confirm that the wall and anchors suit the loads at your dock, because a bumper can only pass on what its fixing point can take.
Check the hood, bolts and fixings during routine bay inspections. This bumper protects against docking contact. It is not a vehicle restraint and does not replace wheel chocks or safe docking procedures.
FAQ
How many do I need per door?
Most bays use two, one either side of the opening. The price shown is for one bumper, so add two to your basket for a standard door.
Are fixings included?
Yes. Free fixings are included with each bumper: nine M16 through-anchor studs, 125 to 140mm long, and nine washers (50mm OD, 16mm ID, 3mm thick), for fitting into sound concrete. That is one for each of the three holes in the lower plate and the six in the base plate.
Why is it described as 590mm when it stands off the wall so much less?
The 590mm is the whole depth from the front of the hood to the back of the base plate. The bumper stands only about 137mm off the wall. The rest sits on top of your dock, so allow for that 450mm on the dock surface.
Will it get in the way of my door?
It can, because it stands about 560mm above the dock top. Check your door track, seals and leveller frame before you order, and call us if you are unsure.
Can it compress if it is steel?
Yes. The rubber core behind the hood lets it compress under load, despite the steel construction.
Ordering & Delivery
Add the quantity you need at the top of the page. Orders placed before 2pm, Monday to Friday, are dispatched the same day by Express UK Delivery. Because of the weight, make sure someone is on site with suitable lifting equipment. For several doors, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will go through it with you.
