Description
A forged feature baluster with leaves and scrolls, made to weld into a railing, balcony or gate. It is a 1000mm length of 12mm square mild steel bar with a decorative centre: ball-end scrolls at the top, a tall teardrop frame either side of a twisted section of the bar, forged collars, and three pairs of forged leaves. It measures 250mm across the leaves. The plain ends, 130mm at the top and 150mm at the bottom, let you cut it to height and weld it between your rails. It comes in raw steel, ready to weld and finish. The price shown is for one panel.

Why fabricators use it
One forged piece, nothing to assemble. The scrolls, frame and leaves are already fixed to the centre bar with forged collars. You treat it like any other 12mm square baluster: mark it, cut it, tack it and weld it.
Real forged leaves. Six hand-finished leaves give the panel depth and catch the light, so one panel lifts a plain run of bars in a way flat scrollwork cannot.
Matches standard 12mm square bar. The bar is the same size as the plain balusters most railing and gate makers already stock, so the panel sits in line with the rest of the run and welds to the same rails.
Mild steel takes any finish. Raw steel can be painted, powder coated or hot-dip galvanised, so the panel finishes exactly like the rest of the job.
Where it is used
Juliet balconies, front garden railings, side and garden gates, driveway gates, window guards, pub and shop frontages, garden screens and decorative room dividers.
Specifications
| What you get | One decorative baluster panel |
|---|---|
| Overall length | 1000mm |
| Width | 250mm across the leaves |
| Bar | 12 x 12mm square, twisted inside the frame and scrolls |
| Section lengths | 130mm plain top, 195mm scrolls, 435mm teardrop frame, 90mm leaf curls, 150mm plain bottom |
| Decoration | Ball-end scrolls, teardrop frame, forged collars, three pairs of forged leaves |
| Material | Mild steel |
| Finish | Raw steel, unpainted |
| Weight | About 2.48 kg |
How to space them
At 250mm wide, one panel takes the place of about two plain bars. Most railings and gates look best with one panel in the centre of a short run, or one panel every metre or so on a longer railing, with plain bars at even centres between them. On a gate, two panels placed evenly across the leaf give a balanced look.
Choosing the right panel
Pick the panel by the bar size of your railing first, then by the look you want. This one is 12mm square bar, 1000mm long, and the most decorative of the leaf designs. For a slimmer feature, compare these panels in 12mm bar:
- 160 x 1000mm basket and scroll panel
- 220 x 1000mm panel in 12mm square bar
- 170 x 1000mm panel
- 165 x 1000mm panel in 12mm twisted bar
See every design in our decorative panels range.
Stairs, landings and balconies in homes: the gaps in the guarding must not let a 100mm sphere pass. The teardrop frame leaves openings either side of the centre bar that can be wider than 100mm, so check them with a 100mm gauge before using this panel in domestic guarding, or use it on gates, garden railings and window guards where that rule does not apply.
Fitting and care

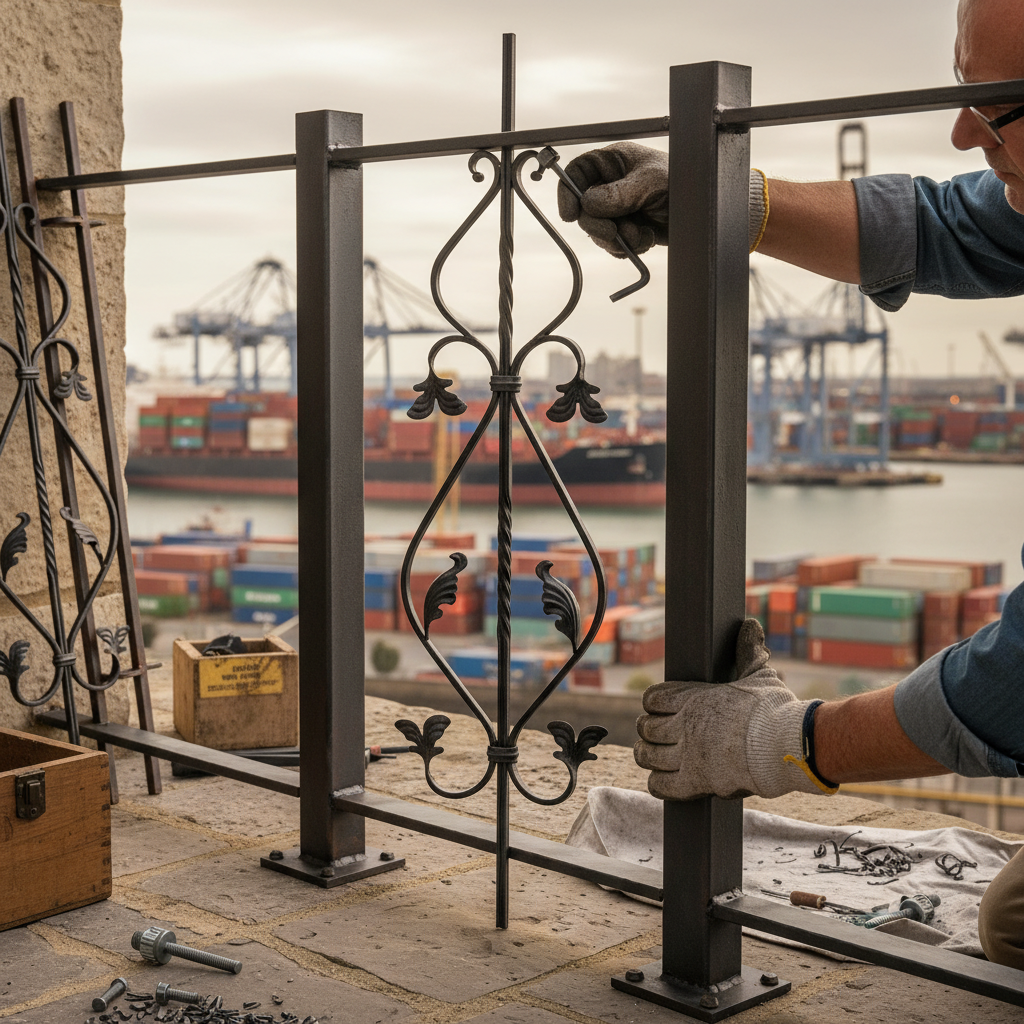

Measure the clear height between your rails and trim the plain ends so the decoration sits where you want it. Square the cut ends, tack the panel to the bottom rail, check it is plumb in both directions, tack the top, then weld out. Grind the welds flush. Raw steel will rust if left bare, so finish it the same day or keep it dry. Outdoors, have it hot-dip galvanised, or degrease, prime with a zinc-rich or etch primer and top coat with metal paint. Inspect painted railings each spring and touch up any chips straight away.
Frequently asked questions
Is the price for one panel?
Yes. The price is for one decorative baluster panel. For a full railing or a larger quantity, call us for a price.
Can I cut it shorter?
Yes. Trim the plain ends, 130mm at the top and 150mm at the bottom. Cut the bar square on the plain section for the neatest weld.
Is it painted or galvanised?
No. It is supplied as raw mild steel so you can weld it first and finish it with the rest of the railing. It will show surface rust if it is stored outside unpainted.
Which way up does it go?
The ball-end scrolls go at the top and the leaf curls at the bottom, as in the photos. The plain end at the top is 130mm and at the bottom 150mm.
Can it be used without welding?
It is made to be welded. You can drill the rails and pass the plain ends through, then fix them with a plug weld, but it is not a bolt-on part.
Ordering and delivery
Order online with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a full railing, mixed parts or a larger job, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm availability and delivery before you order.
