Description

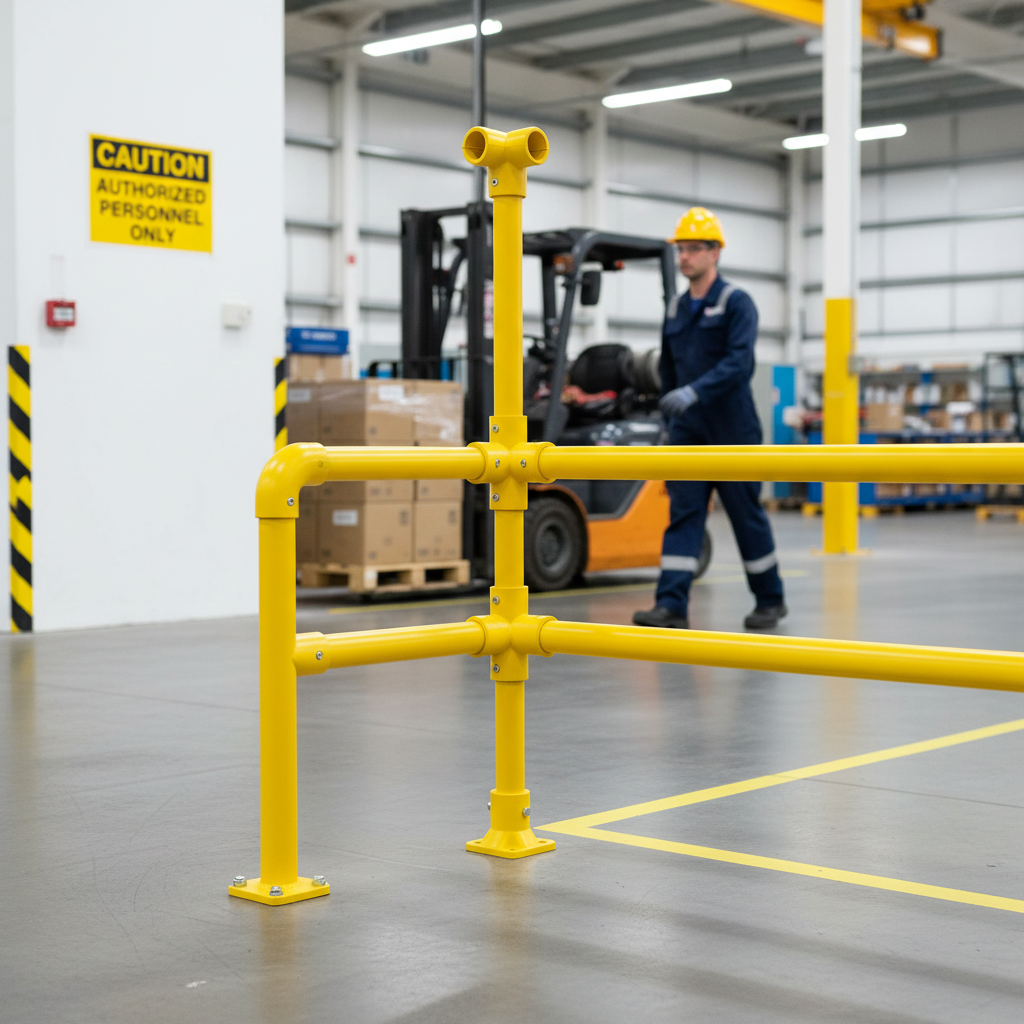

A ready-built corner post for yellow GRP guard rails. This 1100mm post comes assembled: a 50mm GRP tube with its base foot, a top corner fitting that takes two top rails at 90 degrees, and a middle corner at 550mm for the two knee rails. Use it at every right-angle turn in a run. Bolt the foot down, slide the rails in and the guard rail goes up with no fittings to set out on site. The price shown is for one.
Why choose it
Ready to fix. Fittings and base foot come assembled at the right heights.
Standard heights. 1100mm top rail and 550mm knee rail, the usual layout for industrial guard rails.
Neat corners. Both rails meet the post at a clean right angle.
No rust. GRP with stainless fixings, for wet and corrosive sites.
Where it is used
Corners of platforms, tank tops, roof edges and walkways at water and wastewater treatment works, chemical plants, rail depots, roofs and electrical sites.
Specifications
| What you get | One pre-assembled corner post |
|---|---|
| Height | 1100mm to top of rail |
| Top fitting | Corner, two rails at 90 degrees |
| Knee rail fitting | Middle corner at 550mm, two rails at 90 degrees |
| Tube | 50mm outside diameter GRP |
| Base | Moulded base foot, fitted |
| Colour | Safety yellow |
| Weight | 3.5kg |
Load tested system
The 50mm GRP tube handrail system these parts belong to has been load tested by an independent UK laboratory as a straight two-rail balustrade, 1100mm high with a mid rail at 550mm and posts at 1000mm centres. It carried 0.4 kN/m, above the 0.36 kN/m general duty load for industrial handrails in BS 4592-0.
Planning a run
Use an end post at each end and beside each opening, a corner post at every 90 degree turn, and intermediate posts at no more than 1000mm centres in between, joined with 50mm GRP tube.
Building a complete GRP handrail
- End post
- Mid post
- Tube: 5000mm lengths
- Tube: 3500mm lengths
- Internal joint for long runs
- M10 bolt set for the base foot
- M6 rivet nut and bolt set
See the whole range in GRP handrail.
Fitting

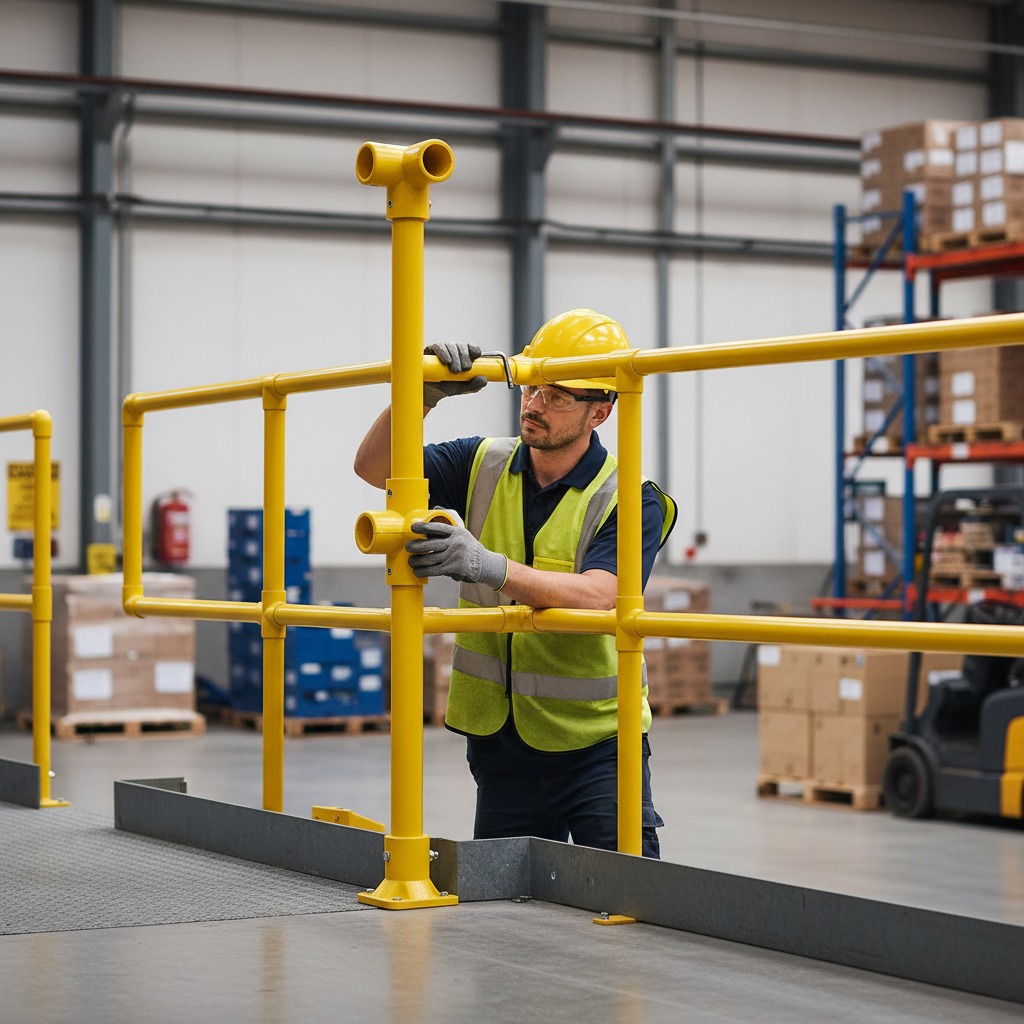

Set the posts out on the line of the rail. Mark through the base foot holes, drill and fix with anchors to suit the concrete or steel. Slide the 50mm tubes into the fittings, check the rails are level, then drill and fix each with M6 rivet nuts and bolts.
Care
Wash down with water and mild detergent. Check the bolts once a year and after any impact. GRP needs no painting.
Frequently asked questions
Is the price for one post?
Yes, one pre-assembled corner post.
Are floor fixings included?
No. Choose anchors to suit the concrete, steel or GRP grating you are fixing to.
Can the height be changed?
Yes. The post can be cut down before fitting; ask us if you need a non-standard height.
Ordering and delivery
Order online with Express UK Delivery. For a full GRP guard rail, send us a sketch with the lengths, corners and openings: call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will list every post, tube, fitting and fixing you need.
