Description

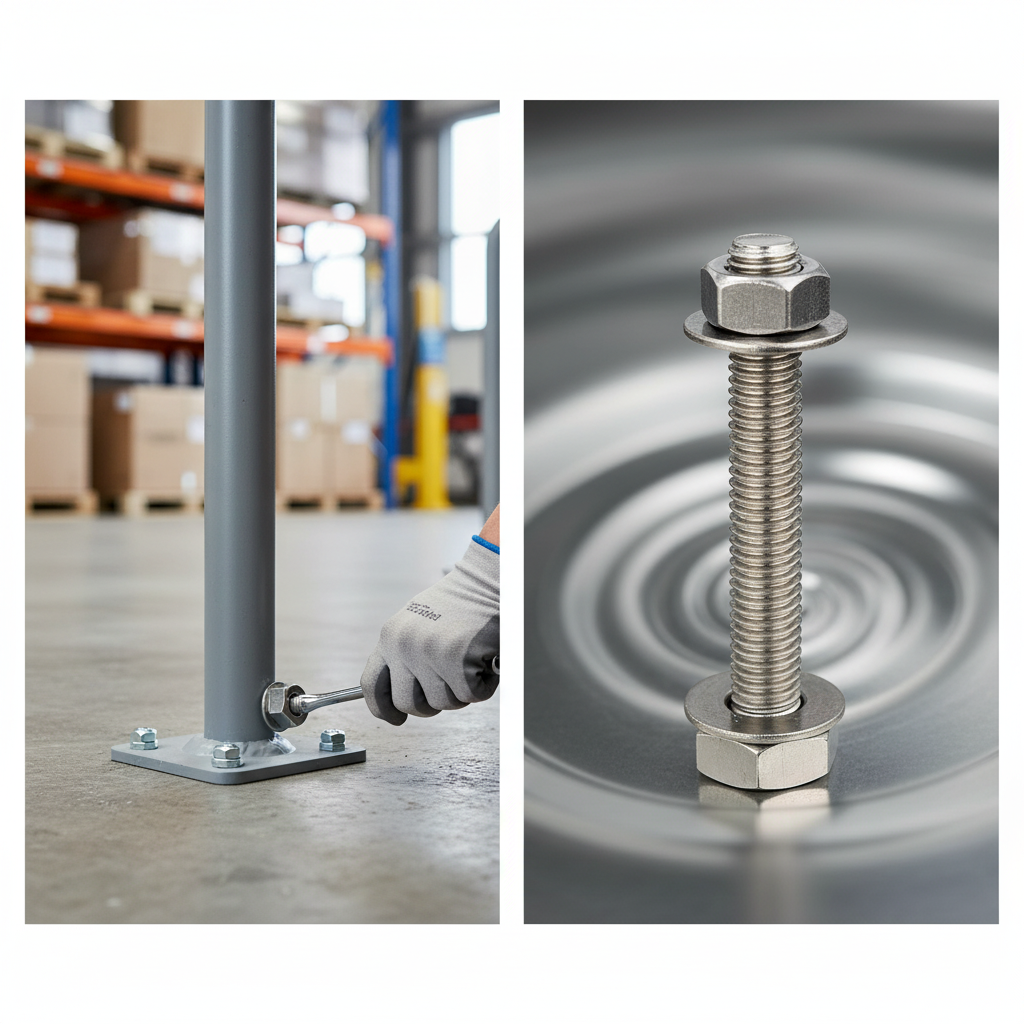

The bolt that locks each GRP handrail post into its base foot. Each set is an M10 x 80mm stainless steel hex head bolt, a stainless nut and two stainless washers. Drill a 10mm hole straight through the base foot and the post, pass the bolt through with a washer each side and tighten. Stainless steel will not rust or stain the yellow GRP. The price shown is for one set, with a minimum order of 10.
Why choose it
Made for the base feet. Sized for our triangular base flange and square base flange on 50mm GRP posts.
Stainless steel. Bolt, nut and both washers are stainless for wet and corrosive sites.
Washers both sides. Spread the load on the GRP so the bolt can be done up tight.
One drill bit. A single 10mm hole through foot and post.
Where it is used
Yellow GRP handrail and guard rail posts at water and wastewater treatment works, chemical plants, rail depots and walkways; spare fixings for maintenance.
Specifications
| What you get | One bolt, one nut and two washers, minimum order 10 |
|---|---|
| Bolt | M10 x 80mm hex head, 17mm across flats |
| Nut | M10 hex, 17mm across flats, 8mm thick |
| Washers | 2 x M10 flat washers, 24mm diameter, 1.5mm thick |
| Material | Stainless steel |
| Hole | 10mm, straight through foot and post |
| Weight | 0.07kg per set |
Load tested system
The 50mm GRP tube handrail system these parts belong to has been load tested by an independent UK laboratory as a straight two-rail balustrade, 1100mm high with a mid rail at 550mm and posts at 1000mm centres. It carried 0.4 kN/m, above the 0.36 kN/m general duty load for industrial handrails in BS 4592-0.
How many do you need?
One set for every post base foot.
Building a complete GRP handrail
- Triangular base flange
- Square base flange
- M6 rivet nut and bolt set for the other fittings
- Tube: 5000mm lengths
- Tube: 3500mm lengths
See the whole range in GRP handrail.
Fitting
Push the post fully into the base foot and stand it plumb. Drill a 10mm hole with an HSS bit straight through the foot and the post. Pass the bolt through with a washer under the head, fit the second washer and the nut on the far side, and tighten. Then fix the foot to the floor or wall.
Care
Stainless steel needs no maintenance. Check base bolts are tight once a year and after any impact.
Frequently asked questions
Is the price for one set?
Yes, one bolt, nut and pair of washers. The minimum order is 10.
Does it fix the foot to the floor?
No. It fixes the post into the foot. Choose floor anchors to suit your concrete or steel.
Can I use it on the other fittings?
Tees, crosses and corners use the M6 rivet nut and bolt set instead.
Ordering and delivery
Order online with Express UK Delivery. For a full GRP handrail, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will count the fixings for you.
