Description

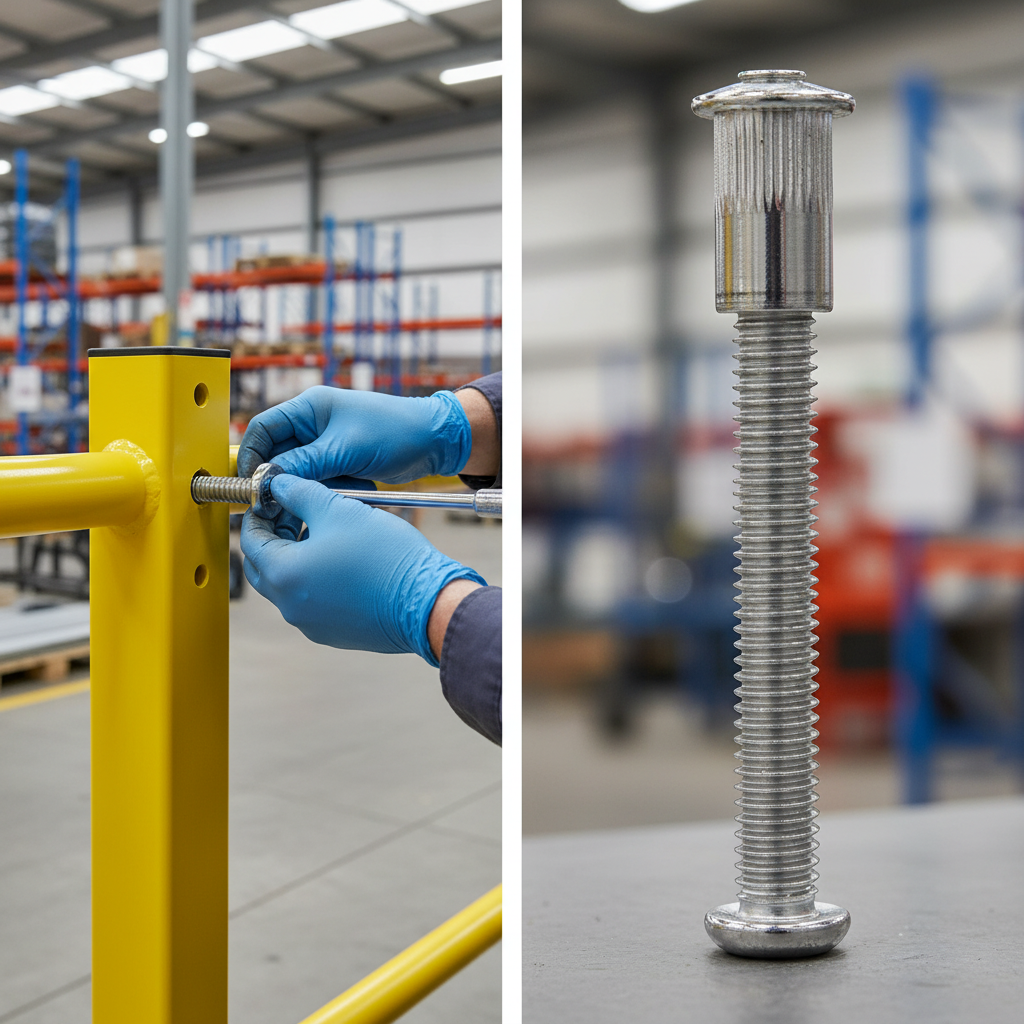

The fixing that holds every moulded GRP handrail fitting to its tube. Each set is an M6 x 60mm stainless steel button head socket bolt and a matching stainless steel rivet nut. The bolt head and the rivet nut both sit inside the moulded recesses of the fitting, so nothing sticks out to catch a hand or snag clothing, and stainless steel will not rust in wet or corrosive plant. The price shown is for one set, with a minimum order of 10.
Why choose it
Flush finish. Bolt head and nut recess into the fitting, leaving a smooth handrail.
Stainless steel. No rust stains on yellow GRP, even at water treatment works and chemical plants.
Fits every moulded fitting. Tees, crosses, corners, elbows, joints and flanges for 50mm GRP tube all take this set.
Simple tools. A drill, a 9mm bit and a hex key.
Where it is used

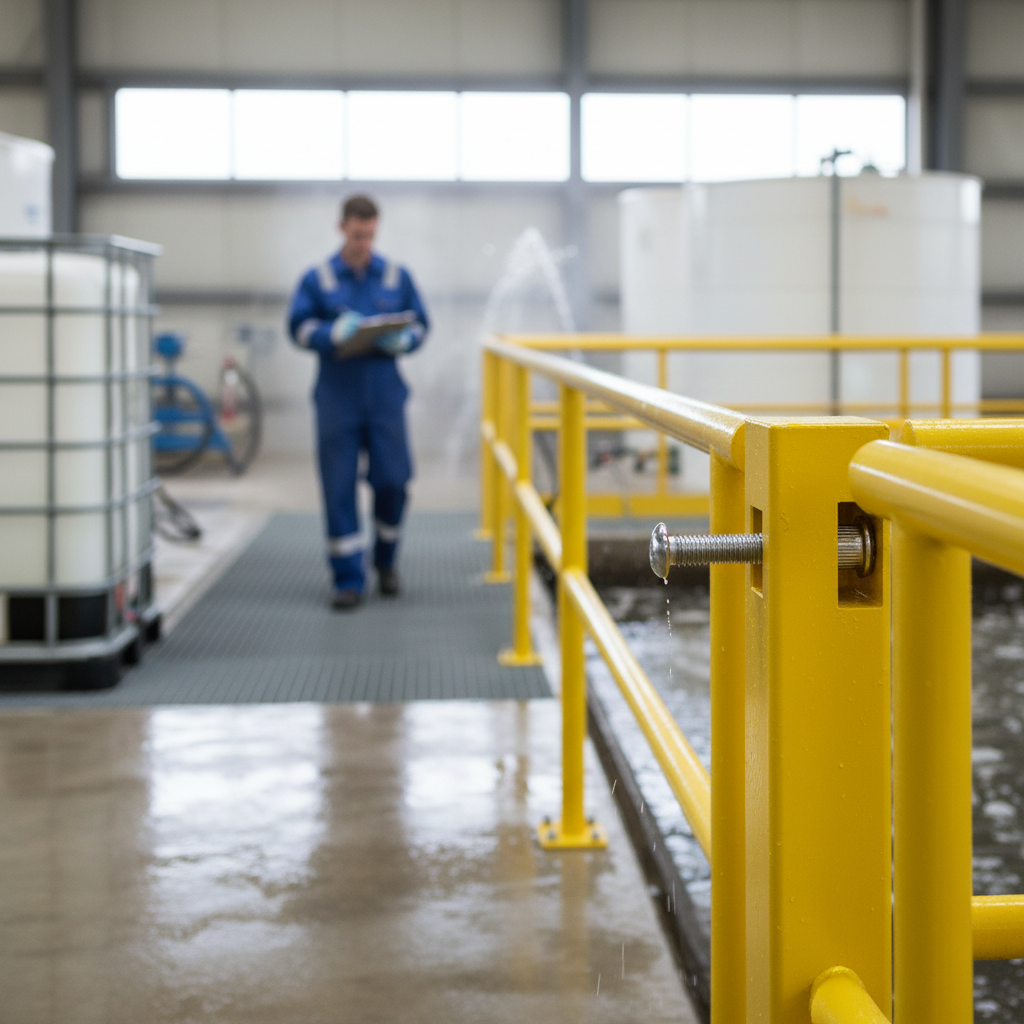

Yellow GRP tube handrails and guard rails at water and wastewater treatment works, chemical plants, rail depots, food factories and electrical sites; spares for maintenance.
Specifications
| What you get | One bolt and one rivet nut, minimum order 10 |
|---|---|
| Bolt | M6 x 60mm button head socket screw |
| Bolt head | 10mm diameter |
| Rivet nut | M6, 15mm long with a 12mm flange |
| Material | Stainless steel |
| Holes | Bolt side drilled for M6; nut side 9mm through fitting and tube |
| Weight | 0.02kg per set |
Load tested system
The 50mm GRP tube handrail system these parts belong to has been load tested by an independent UK laboratory as a straight two-rail balustrade, 1100mm high with a mid rail at 550mm and posts at 1000mm centres. It carried 0.4 kN/m, above the 0.36 kN/m general duty load for industrial handrails in BS 4592-0.
How many do you need?
One set for each fixing hole in each fitting. Count the holes on the fittings in your order; most tees and crosses take two or three.
Building a complete GRP handrail
- M10 bolt set for base feet
- Swivel short tee
- Short tee, rail to post at 90 degrees
- Mid rail cross
- Triangular base flange
- Yellow end cap
See the whole range in GRP handrail.
Fitting
Set the fitting on the tube. On the bolt side, drill through the fitting for the M6 bolt. On the nut side, drill a 9mm hole through the fitting and the tube. Push the rivet nut into the 9mm hole so its flange sits in the recess, pass the bolt through from the other side and tighten with a hex key until the fitting grips the tube.
Care
Stainless steel needs no maintenance. Check fittings are tight once a year and after any impact.
Frequently asked questions
Is the price for one set?
Yes, one bolt and one rivet nut. The minimum order is 10.
Does it fit the base feet?
Base feet are fixed to the post with the M10 hex bolt set, not this one.
What drill bit do I need?
A 9mm bit for the rivet nut side, and a bit to suit M6 on the bolt side.
Ordering and delivery
Order online with Express UK Delivery. For a full GRP handrail, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will count the fixings for you.
