Description

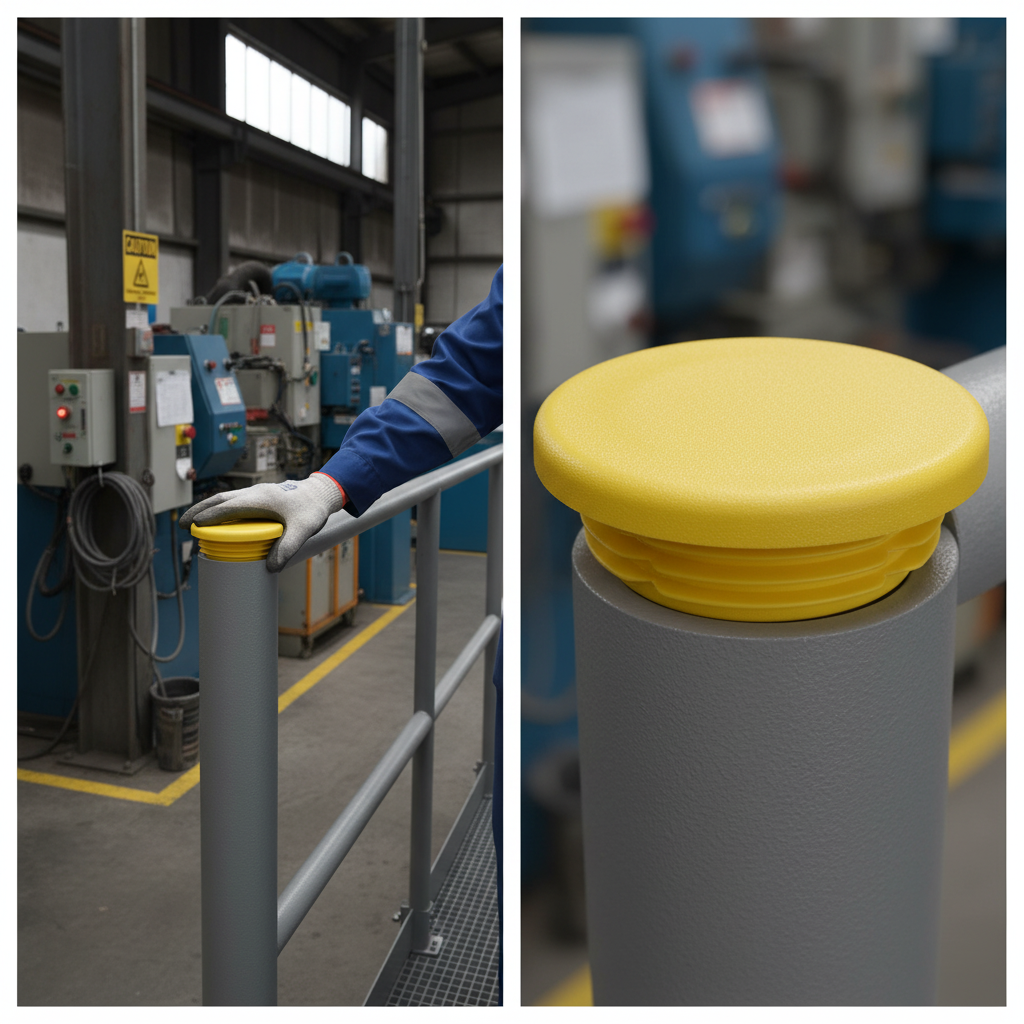

The finishing piece for every open end on a yellow GRP handrail. This safety yellow plastic cap knocks into the end of 50mm GRP tube with a 5mm wall. Ribbed fins grip the bore and the 50mm head sits flush with the outside of the tube, so the rail end is smooth to the hand, matches the rail and keeps out water, dirt and nesting insects. The price shown is for one cap, with a minimum order of 10.
Why fit end caps
Safer rail ends. A cut tube end has a sharp edge; a capped end is smooth to hands and clothing.
Keeps the tube clean. Stops rain, grit and insects getting inside the rail.
Flush and matching. The head is the same 50mm diameter and the same yellow as the tube, so it looks finished.
Quick to fit. No glue or tools beyond a soft mallet.
Where it is used

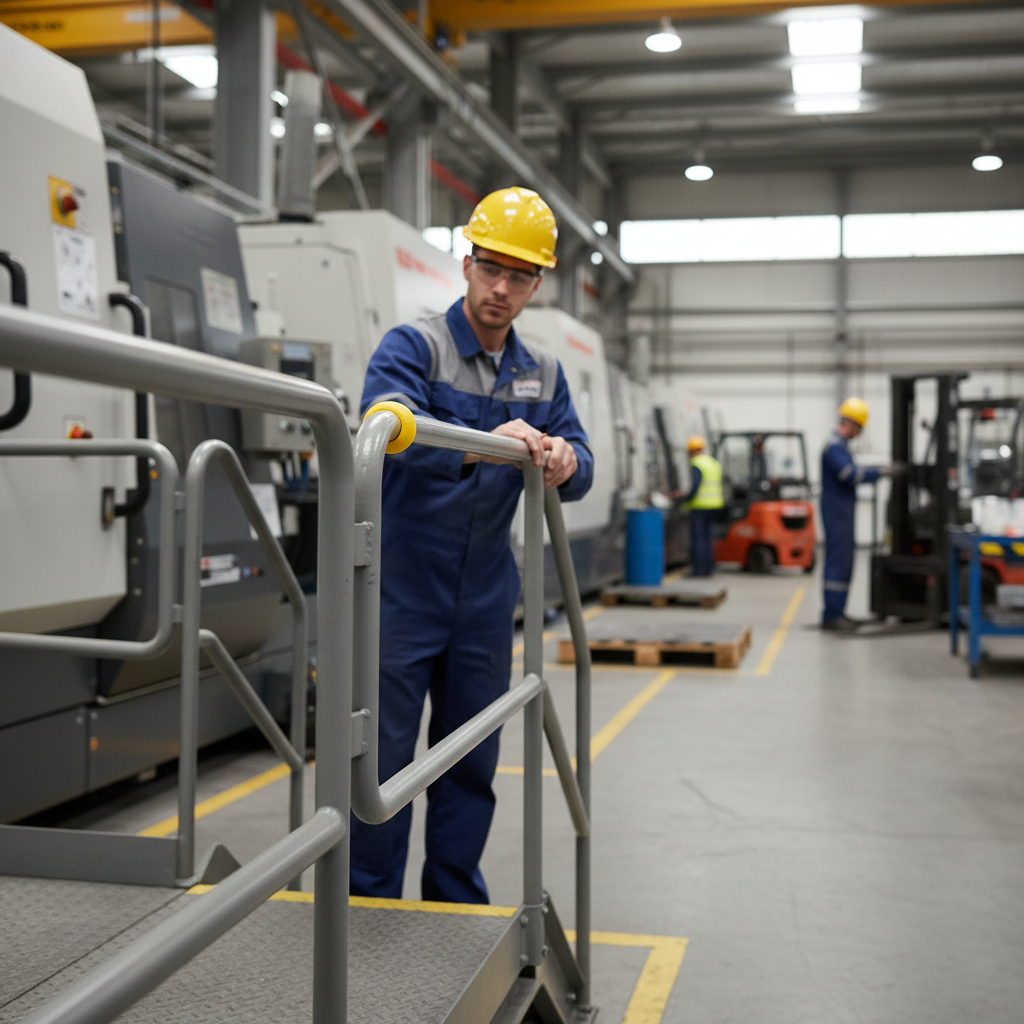

Every open tube end on yellow GRP guard rails and handrails: the ends of top and knee rails, the tops of posts, at water and wastewater treatment works, chemical plants, rail depots, food factories and electrical sites.
Specifications
| What you get | One end cap, minimum order 10 |
|---|---|
| Suits tube | 50mm outside diameter GRP handrail tube |
| Tube wall | 5mm (40mm bore) |
| Cap head | 50mm diameter, flush with the tube |
| Fixing | Push-in, ribbed fins, no glue needed |
| Material | Plastic |
| Colour | Safety yellow |
| Weight | 0.01kg |
How many do you need?
One for every open tube end: usually two per run of rail (top and knee rail each end) plus one for the top of any post that is not closed by a fitting.
Building a complete GRP guard rail
- Tube: 5000mm lengths or 3500mm lengths
- Level runs: short tee and mid rail cross
- Stairs: 60 degree short tee
- Feet: triangular base flange
- Thin wall tube (1 to 3mm): end cap for thin wall tube
See the whole range in GRP handrail.
Fitting
Cut the tube end square and remove any loose fibres. Push the cap into the bore and tap it home with a soft mallet until the head sits tight against the tube end.
Care
Wash down with the rest of the rail using water and mild detergent. Replace any cap that is knocked out or damaged.
Frequently asked questions
Is the price for one cap?
Yes, one end cap. The minimum order is 10.
Will it fit steel tube?
It is sized for 50mm GRP tube with a 5mm wall. Steel tube has a different bore, so the cap will not grip properly.
My GRP tube has a thinner wall. Which cap do I need?
For 1 to 3mm wall tube, use the thin wall end cap.
Ordering and delivery
Order 10 or more online with Express UK Delivery. For a full GRP guard rail, call 01744 520 110 or email sales@industrialsuppliesco.co.uk with a sketch and we will list every tube, fitting and cap you need.
