Fleur-de-lis Framed Panel 170 x 750mm, 12 x 6mm Flat Bar, Gate Insert and Window Grille

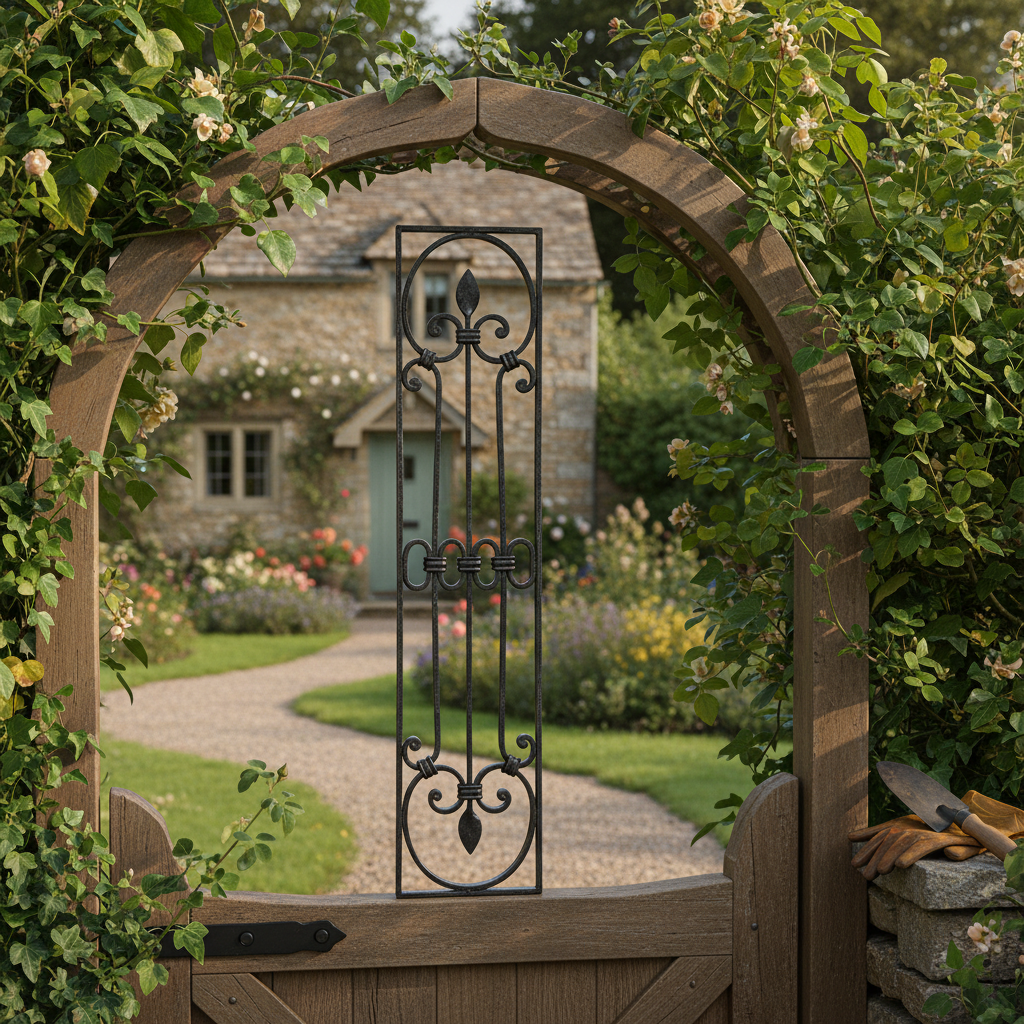

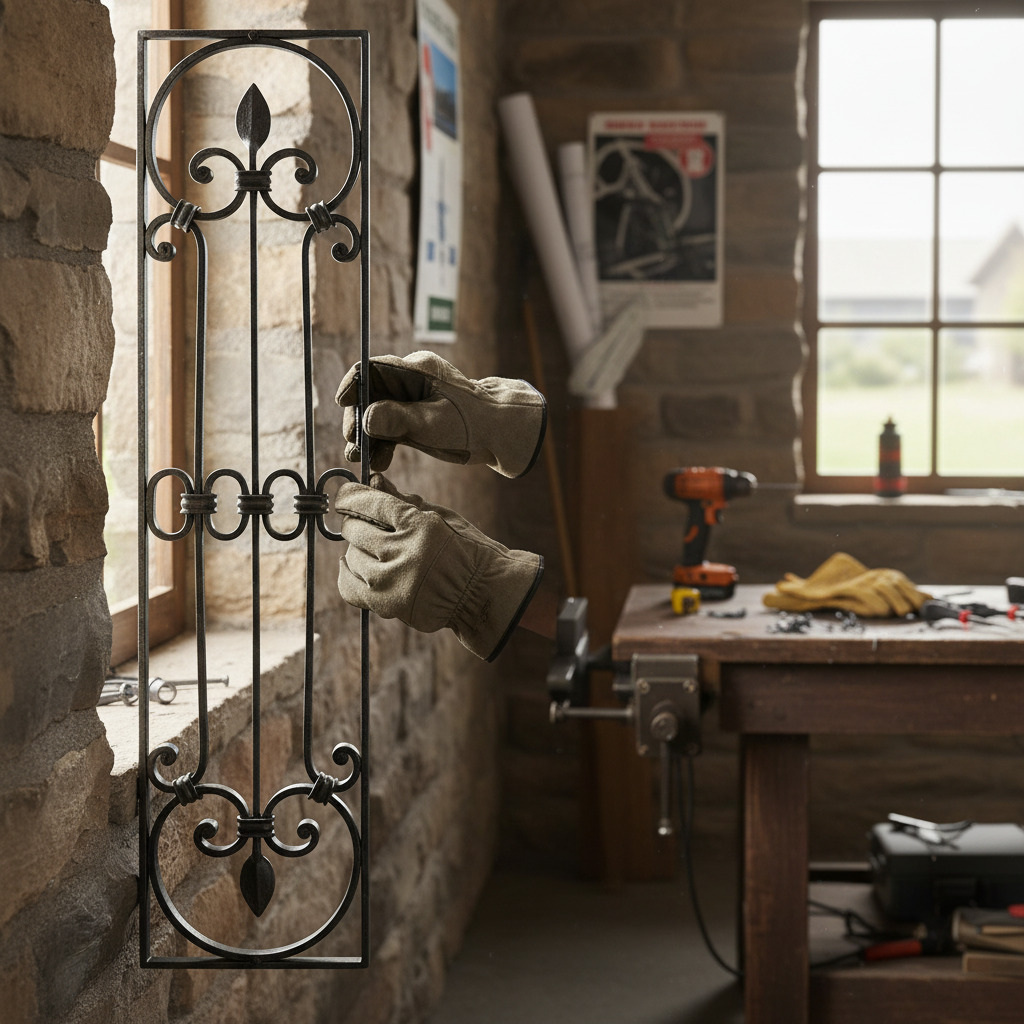

A slim, framed decorative panel for gates, railings and window grilles. This panel is 750mm tall and 170mm wide in 12 x 6mm flat bar, with its own straight rectangular frame. Inside, a rounded arch at the top and bottom holds a forged fleur-de-lis with a pointed leaf and curled scrolls. Three bars run between the arches, linked across the middle by a band of small curled loops and collars. Because it comes framed, it drops straight into a gate or railing bay and welds along its edges, or can be fixed on its own as a grille. It comes in raw steel, ready to weld and finish. The price shown is for one panel.

Why fabricators use it

Framed, so it fits like a module. The straight outer frame gives a flat edge to weld to a gate stile, rail or neighbouring panel, and several can sit side by side without gaps.

Classic detail, already made. The fleur-de-lis, scrolls, loops and collars are forged and fixed, so you get a traditional look without bending a single scroll.

Slim enough for small spaces. At 170mm wide it suits narrow side windows, door side lights and slim gate bays where a wide panel will not fit.

Takes any finish. Raw mild steel can be painted, powder coated or hot-dip galvanised.

Where it is used

Side and garden gate inserts, feature bays in front railings, grilles over narrow side windows and door side lights, balcony fronts, fire screens and room dividers, and planters or trellis.

Specifications

How many do you need?

Stairs, landings and balconies in homes: some openings inside the arches are larger than 100mm, so for guarding check every opening with a 100mm gauge and add bars or backing where needed.

Choosing the right panel

• 500 x 1000mm framed scroll panel, wider, for gate centres
• 975 x 190mm panel in 12 x 6mm flat bar, taller
• 170 x 1000mm panel in 12 x 6mm flat bar, same width, taller
• 1000 x 470mm panel in 12 x 6mm flat bar

See every design in our decorative panels range.

Fitting and care

Set the panel into the bay, check it is square and plumb, and tack the frame to the gate rails, stiles or neighbouring bars at the corners, then weld along the edges and grind flush. As a window grille, weld small fixing lugs to the frame and fix into the brick reveal with masonry anchors. Raw steel will rust if left bare, so finish it promptly. Outdoors, have it hot-dip galvanised, or degrease, prime with a zinc-rich or etch primer and top coat with metal paint, working paint into the collars and scrolls. Check paintwork each spring and touch up chips.

Frequently asked questions

Ordering and delivery

Order online with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For sets or a larger job, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm availability and delivery before you order.
