Black Square Key Clamp Three Way Top Corner for 25mm Box Section, Indoor Use


Price:
Sale price£15.90
Inc. Vat

Express UK Delivery (2 Working Days)

In stock, ready to ship

Trusted by Industry Professionals

Description

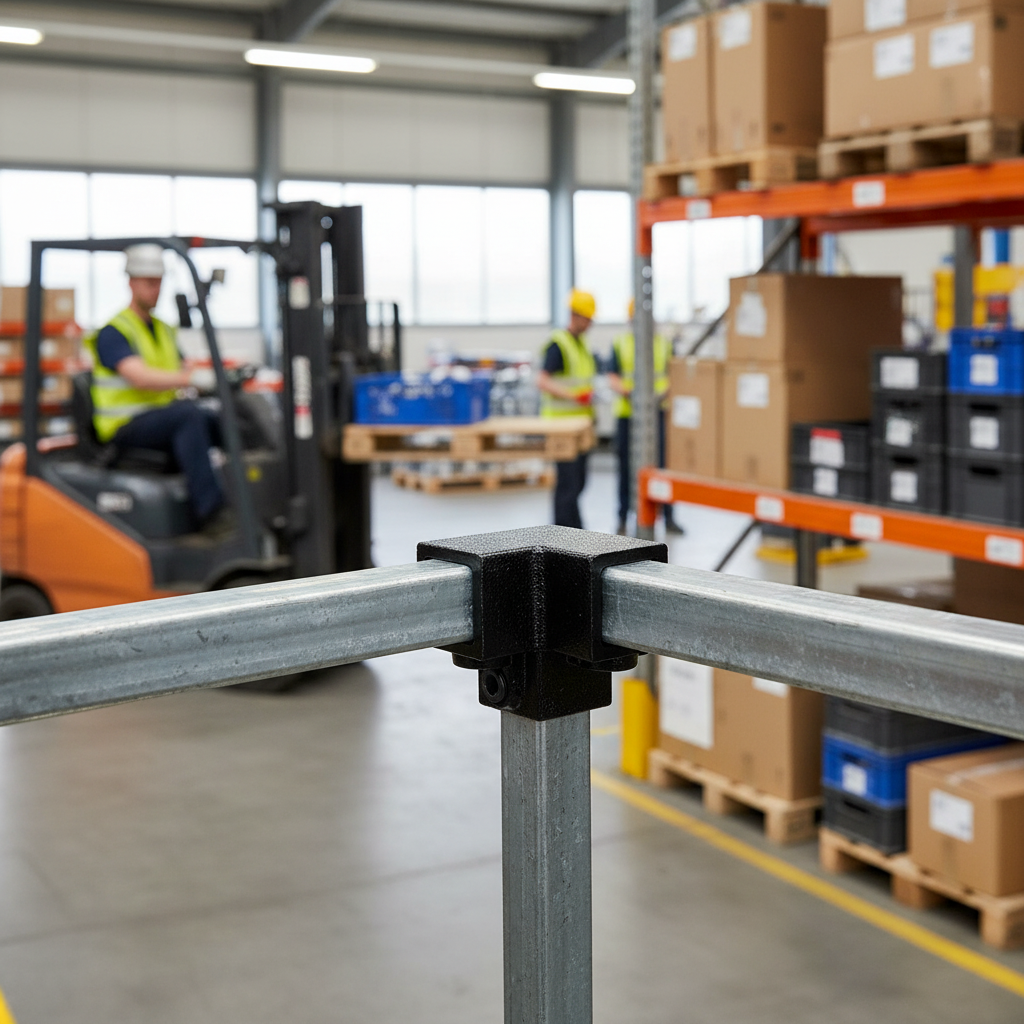

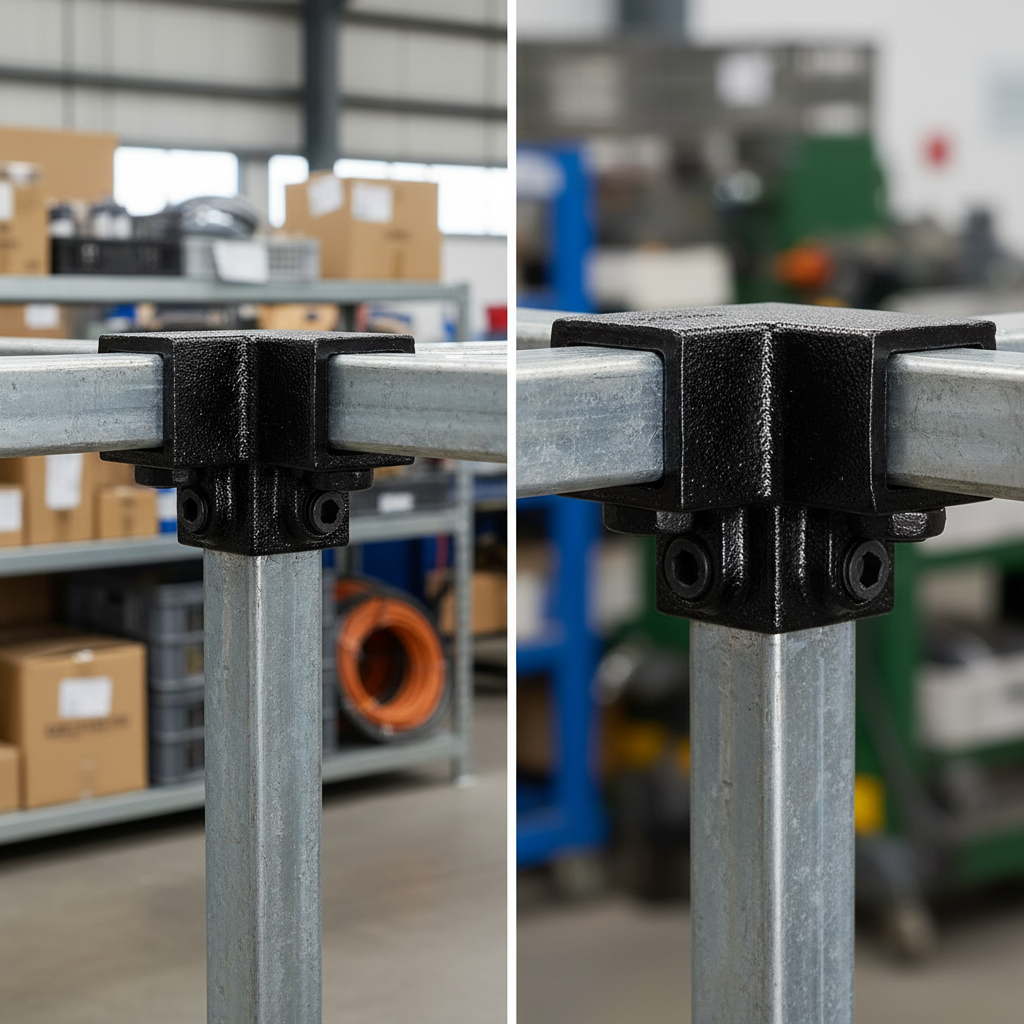

The black square key clamp three way top corner joins the top rail at a corner post, with two rails meeting at 90° on top of the upright. The upright pushes up into the fitting and the two top rails push into the sockets either side; hex socket grub screws lock all three. It suits 25 x 25mm square box section and is mild steel with a black electrophoretic finish, for indoor use only, so square tube frames can be built without welding. The price shown is for one fitting, with a minimum order of 5.

Dimension drawing of the black square key clamp three way top corner for 25 x 25mm box section

Why use a square key clamp three way top corner

A neat top corner. The post, and both rails, end in one fitting, so the corner is closed with no open tube ends.

No welding. Square box section frames go together with a hex key and can be taken apart, altered or extended later.

A clean, modern look. Square section suits architectural handrails, shop fitting, display frames and furniture where a round tube would look out of place.

A dark, tidy finish. The black electrophoretic coat suits shop fitting, display frames and furniture, and is for indoor use only.

Where it is used

Shop fitting and display stands, office and reception partitions, café and bar frames, garment rails, shelving, tables and furniture, and any indoor frame built from 25 x 25mm box section.

Specifications

What you get One square key clamp three way top corner with grub screws fitted, minimum order 5
Suits box section 25 x 25mm square
A 41mm
B 44mm
C 61mm
Material Mild steel
Finish Black electrophoretic coat
Grub screws Hex socket; screw size not published
Weight About 0.4 kg

Letters refer to the dimension drawing above. Dimensions are for guide only and may vary slightly.

Know its limits

It fits 25 x 25mm square box section only; it will not grip round tube or other square sizes. No load rating is published; for a frame that must carry a set load, ask a structural engineer to check the design.

Which 25 x 25mm square fitting?

Joint Fitting
Top rail over an intermediate post Short tee
Upright passing a rail, rail ending Long tee
Top rail ending at an end post 90° elbow
Top rail turning a corner at a post This three way top corner
Mid rail turning a corner, post passing through Three way mid corner
Rail and post crossing, both passing through Four way cross
Upright fixed to a floor Rectangular base plate
Post or rail end fixed to a wall or floor Footplate base (wall flange)

How many do you need?

One at each joint of this type. Sketch the frame, mark each joint and count the fittings for each type before you order.

Choosing the right size

Square key clamps are sized by the outside of the box section. Measure across the flats of your tube: this fitting suits 25 x 25mm. The same fitting is made for 40 x 40mm box section.

Fitting and care

Cut the box section square and deburr the ends. Slide or push the tubes into the fitting, set the frame square and tighten the grub screws firmly with a hex key. Check the screws after the first week and once a year after that. touch up scratches with black paint.

Frequently asked questions

Is the price for one fitting?

Yes. The price is for one fitting with its grub screws fitted, with a minimum order of 5.

Does the upright pass through?

No. The upright ends inside; for a mid rail corner where it passes through, use the three way mid corner.

Will it fit round tube?

No. It is made for 25 x 25mm square box section only.

Can I use it outdoors?

No. The black electrophoretic finish is for indoor use only. For outdoor frames, use the galvanised version.

Ordering and delivery

Order 5 or more online, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a full frame kit, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm availability and delivery before you order.
