Description

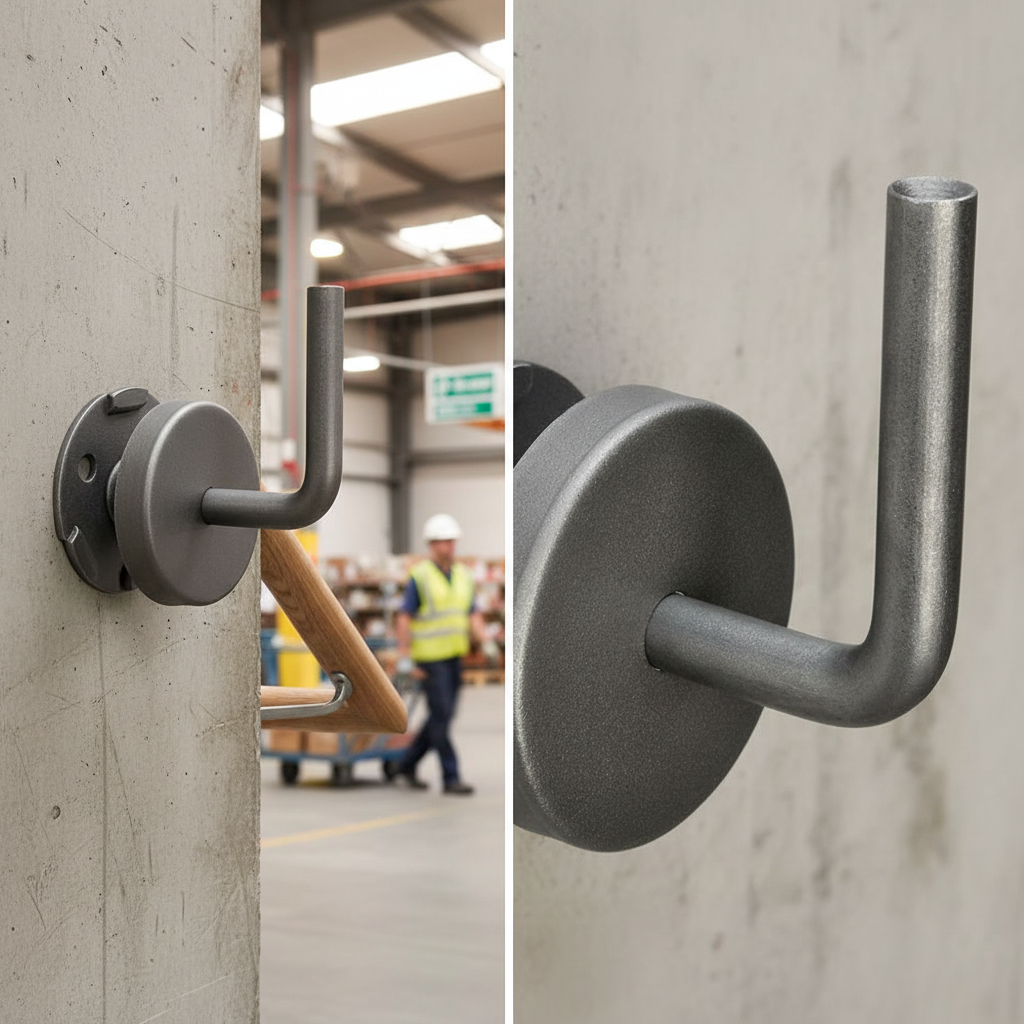

A clean-looking wall bracket with the fixings hidden. Screw the 68mm wall plate to the wall, then push the 70mm cover plate over it to hide the screws. The 12mm bar arm turns up into a stem with an M6 tapped end, so it can be bolted up into the rail or welded on. Plain mild steel, ready to paint or powder coat. The price shown is for one bracket, with a minimum order of 10.
Why choose this bracket
No visible screws. The push fit cover plate hides the wall fixings for a smooth, modern finish.
Bolt or weld. The M6 tapped stem bolts up into a drilled rail, or can be welded like a standard bracket.
Close to the wall. 75mm projection suits corridors and stairs with limited width.
Paint to match. Plain mild steel takes paint or powder coat with the rail.
Where it is used
Offices, receptions, hotels, schools and new-build stairwells where a tidy finish matters; steel and timber handrails that can take an M6 bolt from above or below.
Specifications
| What you get | One handrail bracket, minimum order 10 |
|---|---|
| Type | Tapped stem with push fit cover plate |
| Projection | 75mm from the wall |
| Stem | 75mm high, M6 tapped 15mm deep |
| Wall plate | 68mm round, 3mm thick, 3 x 8mm holes |
| Cover plate | 70mm round, 12mm deep, push fit |
| Arm | 12mm round bar |
| Material | Mild steel, unpainted |
| Weight | 0.27kg |
| Fixings | Not included: choose wall fixings to suit your wall |
How many do you need?
Space brackets about 1m apart or closer, with one within about 300mm of each end of the rail.
| Handrail length | Brackets |
|---|---|
| Up to 2m | 3 |
| 4m | 5 |
| 6m | 7 |
| 10m | 11 |
Fitting

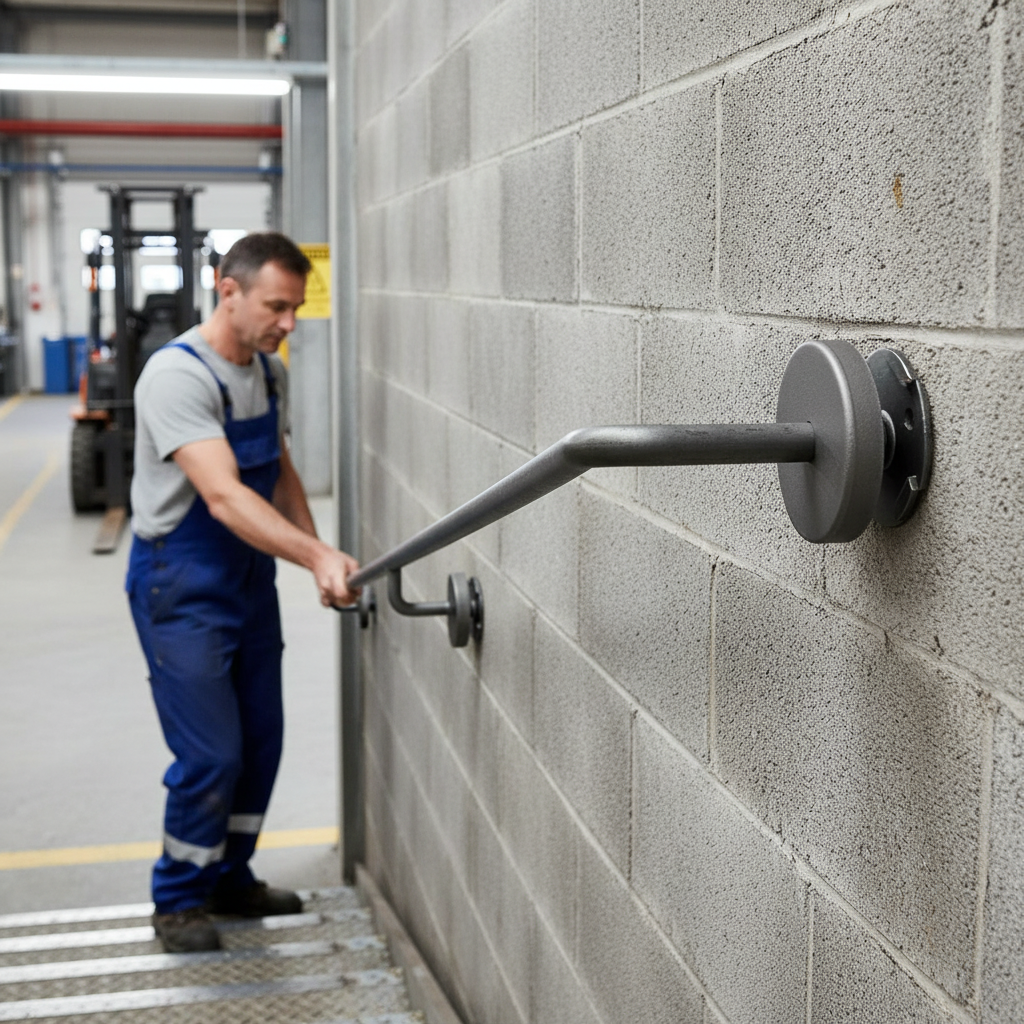

Bolt each bracket to the underside of the handrail first with an M6 bolt through the rail into the tapped stem, or weld the stem on. Offer the rail and brackets up to the wall, mark and fix the wall plates, then push the cover plates on to hide the screws.
Care
Raw steel will rust if left bare, so paint, powder coat or galvanise the brackets before or after fitting, and touch up chips outdoors. Check the wall fixings once a year on busy stairs.
Other brackets in the range
- Spare push fit cover plate, 70mm
- Push fit cover plate bracket, 85mm projection
- Weld-on bracket, 75mm projection
- Weld-on bracket, 85mm projection
- Flat saddle bracket, round plate, 85mm
- Curved saddle bracket, rectangular plate
Frequently asked questions
Is the price for one bracket?
Yes, one bracket. The minimum order is 10.
Is the cover plate included?
Yes, each bracket comes with its push fit cover plate. Spare cover plates are sold separately.
Are screws included?
No. Choose fixings to suit brick, block, concrete or stud walls.
Ordering and delivery
Order 10 or more online with Express UK Delivery. See the full range in Handrails & Brackets, or call 01744 520 110 or email sales@industrialsuppliesco.co.uk for larger quantities.
