Description

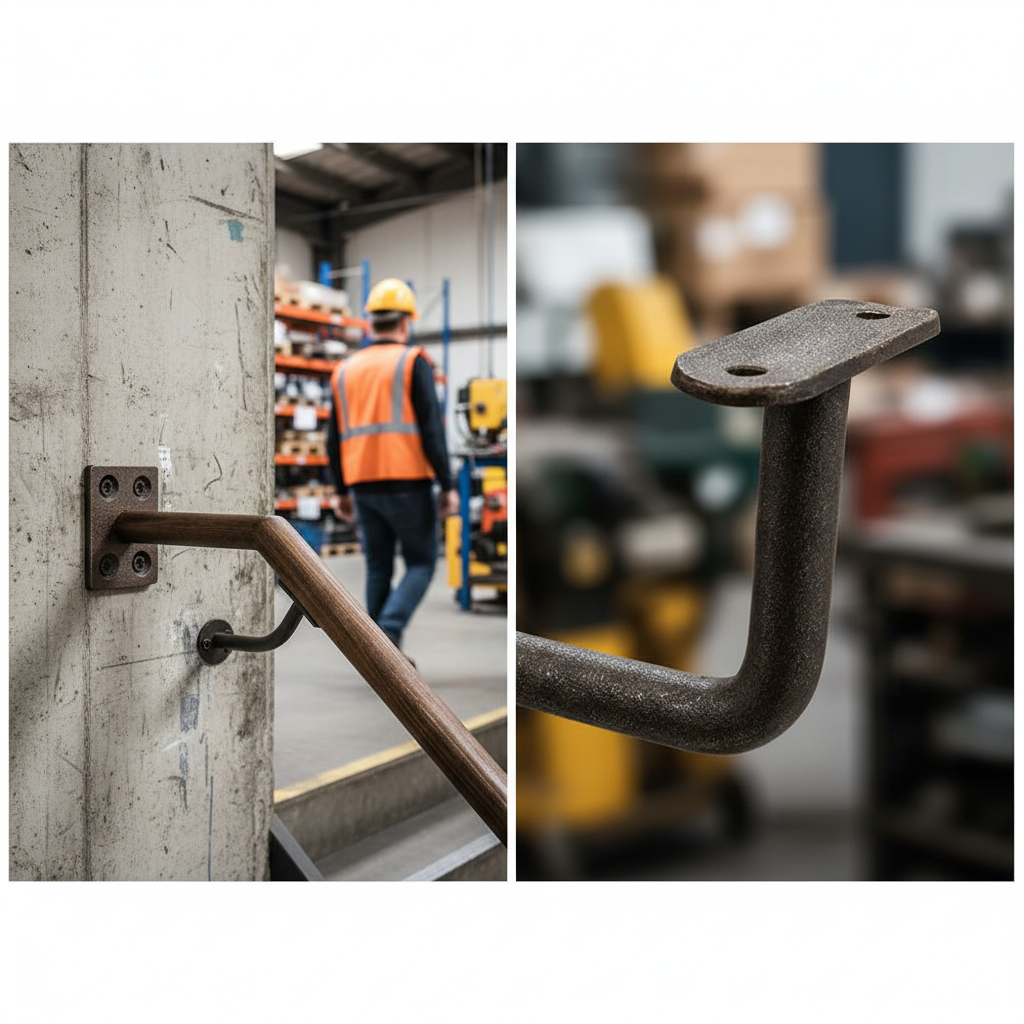

A screw-on bracket for round handrails. A curved 64 x 20mm saddle cradles round steel tube or a timber mopstick rail and screws up into it through two holes, so no welding is needed. The compact 50 x 40mm wall plate takes four screws. Plain mild steel, ready to paint. The price shown is for one bracket, with a minimum order of 10.
Why choose this bracket
No welding. Screw the saddle up into a timber or drilled steel rail on site.
Made for round rails. The curved saddle sits snugly under tube and mopstick handrails.
Four-hole wall plate. A compact rectangular plate with four fixings suits narrow walls and stair strings.
Good hand clearance. 85mm projection from the wall.
Where it is used

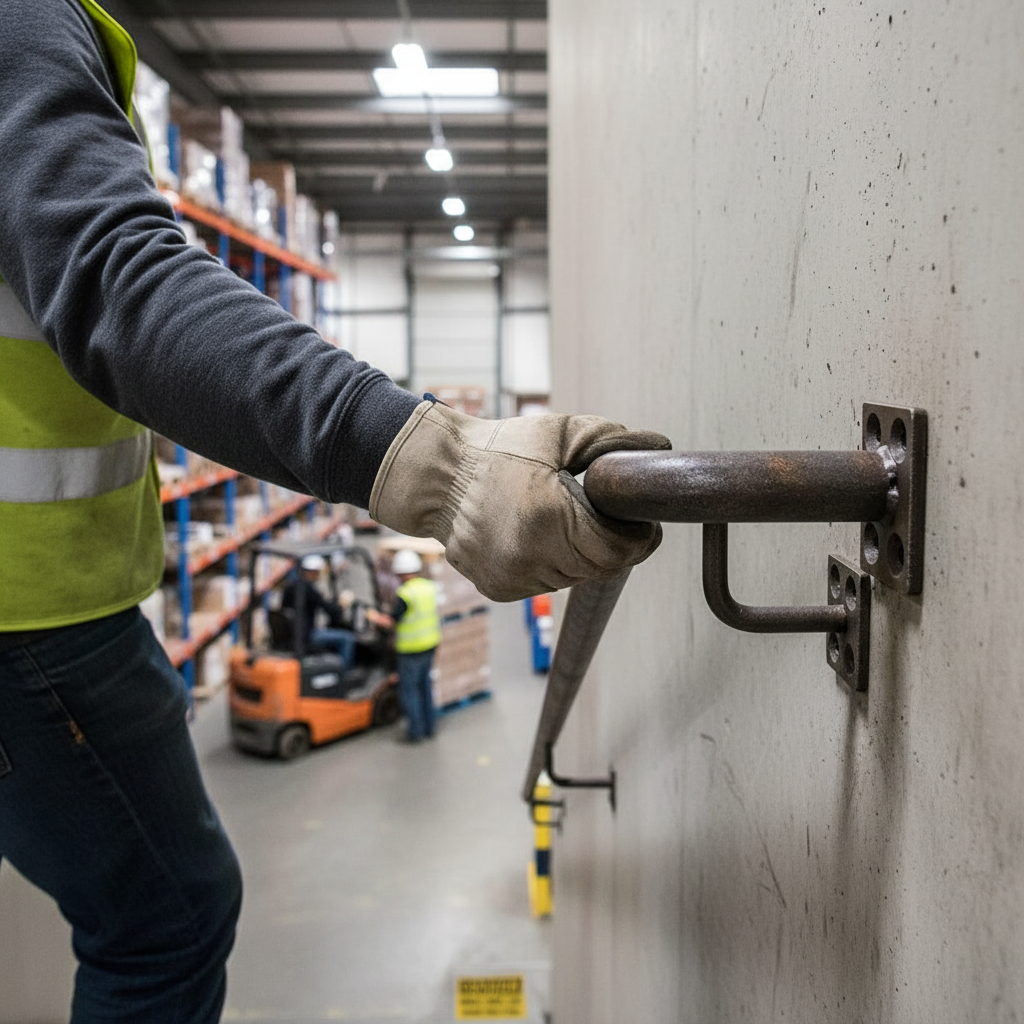

Timber mopstick and round tube wall handrails in houses, churches, schools and offices; replacing old brackets on existing rails.
Specifications
| What you get | One handrail bracket, minimum order 10 |
|---|---|
| Type | Curved saddle, screw fixing |
| Projection | 85mm from the wall |
| Saddle | Curved, 64 x 20mm, 2 x 5mm holes |
| Saddle height | 55mm above the arm |
| Wall plate | 50 x 40 x 5mm, 4 x 6mm holes |
| Arm | 12mm round bar |
| Material | Mild steel, unpainted |
| Weight | 0.21kg |
| Fixings | Not included: choose wall fixings to suit your wall |
How many do you need?
Space brackets about 1m apart or closer, with one within about 300mm of each end of the rail.
| Handrail length | Brackets |
|---|---|
| Up to 2m | 3 |
| 4m | 5 |
| 6m | 7 |
| 10m | 11 |
Fitting
Fix the end brackets to the wall first, string a line between them and fix the rest to it. Sit the round handrail in the curved saddles and screw up through the saddle holes into the rail.
Care
Raw steel will rust if left bare, so paint, powder coat or galvanise the brackets before or after fitting, and touch up chips outdoors. Check the wall fixings once a year on busy stairs.
Other brackets in the range
- Galvanised curved saddle bracket
- Flat saddle bracket, round plate, 85mm
- Flat saddle bracket, 70 x 19mm saddle
- Weld-on bracket, 85mm projection
Frequently asked questions
Is the price for one bracket?
Yes, one bracket. The minimum order is 10.
Are screws included?
No. Choose fixings to suit brick, block, concrete or stud walls.
Ordering and delivery
Order 10 or more online with Express UK Delivery. See the full range in Handrails & Brackets, or call 01744 520 110 or email sales@industrialsuppliesco.co.uk for larger quantities.
