Mild Steel Handrail Bracket with Flat Saddle, 85mm Projection, for Flat Bar and Timber Rails


Price:
Sale price£2.90
Inc. Vat

Express UK Delivery (2 Working Days)

In stock, ready to ship

Trusted by Industry Professionals

Description

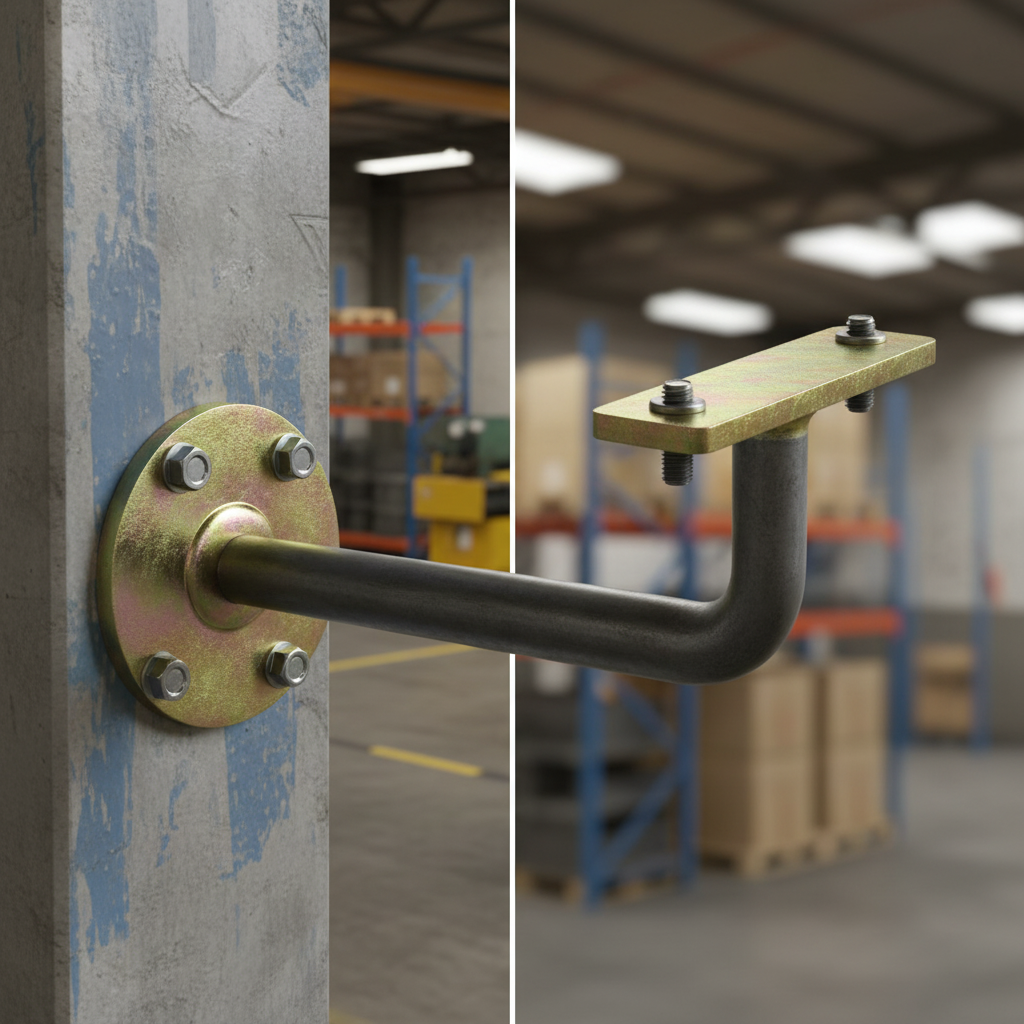

A plain, strong wall bracket for flat-bottomed handrails. The flat saddle suits steel flat bar, square or rectangular tube and timber handrails, screwed up through two holes into the rail. The 85mm projection gives a comfortable hand gap from the wall. It is mild steel, supplied unpainted so it can be painted or powder coated to match the rail. The price shown is for one bracket, with a minimum order of 10.

Dimension drawing of the mild steel handrail bracket: 60mm wall plate, 85mm projection, flat 70 x 19mm saddle 38mm above the arm

Why choose this bracket

Flat saddle. A flat 70 x 19mm plate gives a solid seat for flat bar, square tube and timber rails, where a curved saddle would rock.

Good hand clearance. 85mm projection from the wall.

Paint to match. Plain mild steel takes paint or powder coat, so brackets and rail finish the same colour.

Low cost per metre. Simple, strong and inexpensive for long runs of wall handrail.

Where it is used

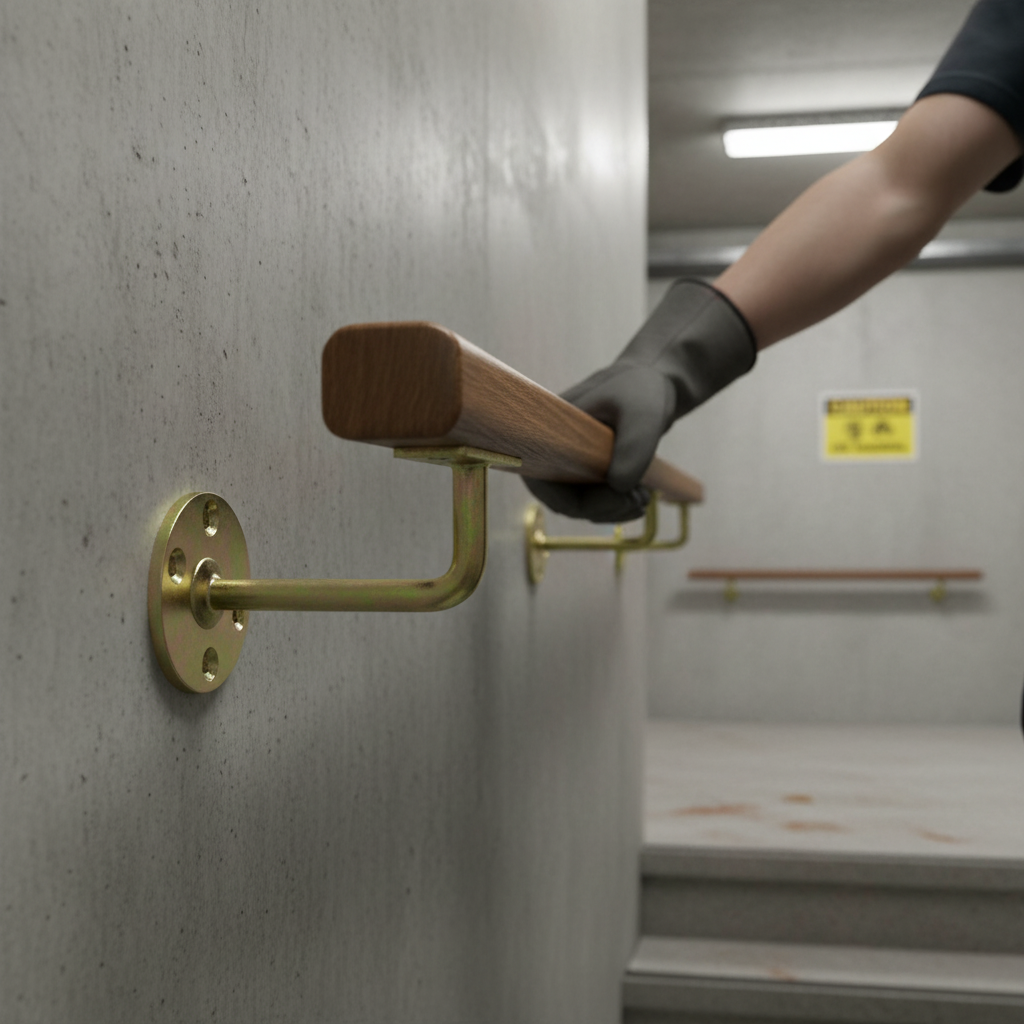

Wall handrails on stairs and steps at factories, warehouses, workshops and farm buildings; timber handrails in stairwells and corridors; flat bar handrails beside external steps and ramps.

Specifications

What you get One handrail bracket, minimum order 10
Saddle Flat, 70 x 19mm, 2 holes 6mm
Suits Flat bar, square or rectangular tube and timber handrails
Projection 85mm from the wall
Saddle height 38mm above the arm
Wall plate 60mm round, 5mm thick, 3 holes on 44mm centres
Arm 10mm round bar
Material Mild steel, unpainted
Weight 0.21kg
Fixings Not included: choose wall fixings to suit your wall

How many do you need?

Space brackets about 1m apart or closer, with one near each end of the rail.

Handrail length Brackets
Up to 2m 3
4m 5
6m 7
10m 11

Fitting

Mark the rail line on the wall, fix the end brackets first, string a line between them and fix the rest to it with three screws each. Lay the rail on the saddles and screw up through the two holes into the rail. Paint or powder coat the brackets before fitting for outdoor use.

Care

Touch up any chipped paint promptly outdoors to keep rust away. Check the wall fixings once a year on busy stairs.

Frequently asked questions

Is the price for one bracket?

Yes, one bracket. The minimum order is 10.

Will it hold a round tube handrail?

A round tube will sit better in a curved saddle bracket. This flat saddle is for flat bar, square tube and timber rails.

Is it galvanised or painted?

No. It is plain mild steel, ready for you to paint or powder coat.

Are screws included?

No. Choose fixings to suit brick, block, concrete or stud walls, and wood or self-tapping screws for the rail.

Ordering and delivery

Order 10 or more online with Express UK Delivery. See more brackets in Handrails & Brackets, or call 01744 520 110 or email sales@industrialsuppliesco.co.uk for larger quantities.
