Description

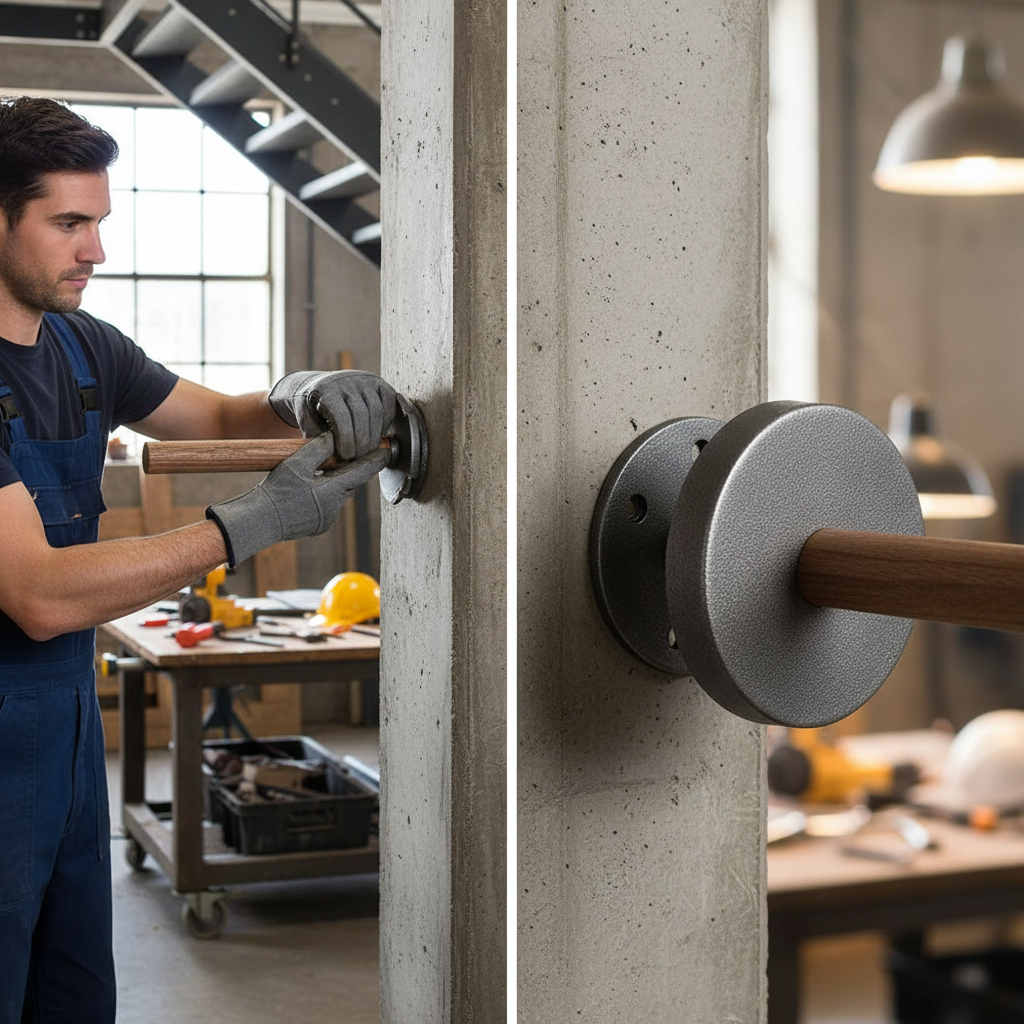

A neat wall bracket whose cover stays put without glue. Screw the 68mm back plate to the wall, push the 70mm cover plate over it and give it a slight turn: lugs on the back plate lock it in place, so it will not pull off but twists off again if you need the screws. The 12mm bar arm comes out 85mm and turns up into a 75mm stem with an M6 tapped end, to bolt into the rail or weld on. The price shown is for one bracket, with a minimum order of 10.
Why choose this bracket
No glue, no visible screws. The twist-lock cover hides the fixings and stays on without adhesive.
Removable. Twist the cover to take it off for redecorating or to check the fixings.
Bolt or weld. The M6 tapped stem bolts into a drilled rail, or welds like a standard bracket.
Good hand clearance. 85mm projection from the wall to the stem.
Where it is used
Offices, schools, hotels, care homes and new-build stairwells where a tidy finish matters; steel and timber handrails that take an M6 bolt; ramps and corridors.
Specifications
| What you get | One handrail bracket, minimum order 10 |
|---|---|
| Type | Tapped stem with push fit, twist-lock cover plate |
| Projection | 85mm from the wall |
| Stem | 75mm high, M6 tapped 15mm deep |
| Back plate | 68mm round, 3mm thick, 3 x 8mm holes |
| Cover plate | 70mm round, 12mm deep, 1.3mm steel |
| Arm | 12mm round bar |
| Material | Mild steel, unpainted |
| Weight | 0.28kg |
| Fixings | Not included: choose wall fixings to suit your wall |
How many do you need?
Space brackets about 1m apart or closer, with one within about 300mm of each end of the rail.
| Handrail length | Brackets |
|---|---|
| Up to 2m | 3 |
| 4m | 5 |
| 6m | 7 |
| 10m | 11 |
Fitting

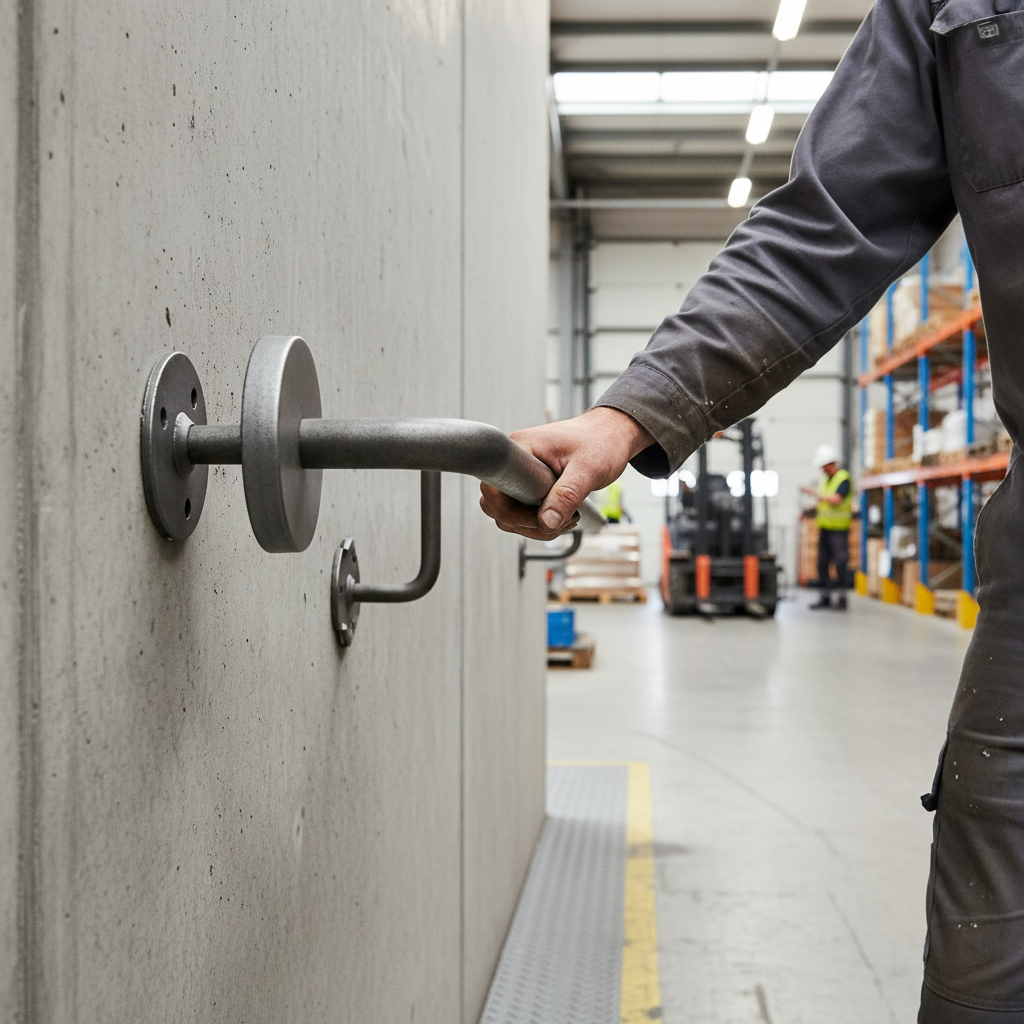

Bolt each bracket to the underside of the handrail first with an M6 bolt through the rail into the tapped stem, or weld the stem on. Offer the rail and brackets up to the wall, mark and fix the wall plates, then push the cover plates on to hide the screws.
Care
Raw steel will rust if left bare, so paint, powder coat or galvanise the brackets before or after fitting, and touch up chips outdoors. Check the wall fixings once a year on busy stairs.
Other brackets in the range
- Bracket with push fit cover plate, 75mm
- Spare push fit cover plate
- Weld-on bracket, 85mm projection
- Flat saddle bracket, round plate, 85mm
Frequently asked questions
Is the price for one bracket?
Yes, one bracket. The minimum order is 10.
Is the cover plate included?
Yes, each bracket comes with its cover plate. Spare covers are sold separately.
How do I take the cover off?
Twist it. Pulling straight off will not move it.
Are screws included?
No. Choose fixings to suit brick, block, concrete or stud walls.
Ordering and delivery
Order 10 or more online with Express UK Delivery. See the full range in Handrails & Brackets, or call 01744 520 110 or email sales@industrialsuppliesco.co.uk for larger quantities.
