316 Stainless Steel Swept Handrail Bracket for 48.3mm Rail, 85mm Projection


Price:
Sale price£17.90
Inc. Vat

Express UK Delivery (2 Working Days)

In stock, ready to ship

Trusted by Industry Professionals

Description

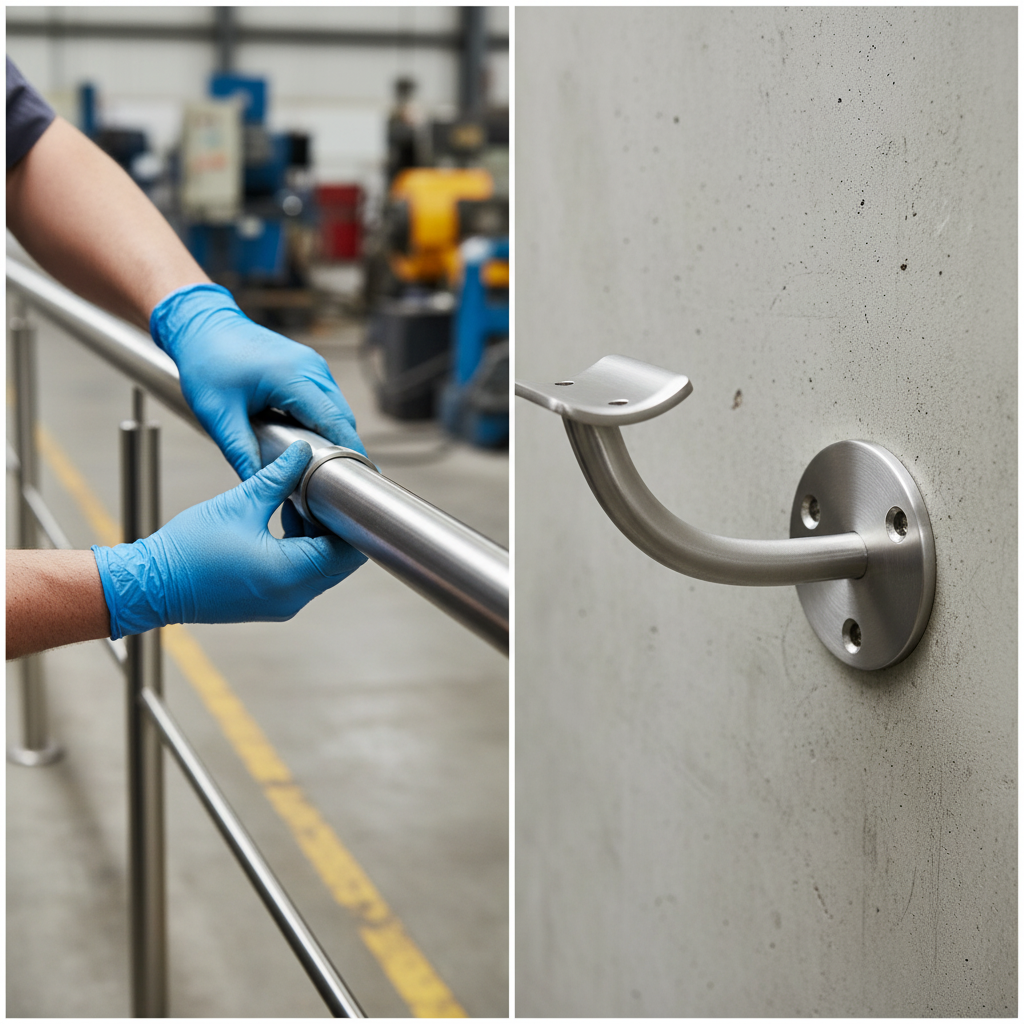

A 316 stainless wall bracket that carries a 48.3mm round handrail on outdoor stairs, ramps and walkways. The 12mm round bar arm leaves the 58mm wall plate level and sweeps up in one long curve to a fixed saddle, so it reads as a softer, more architectural bracket than a square bend. It holds the rail centre 85mm from the wall, a generous hand clearance. Satin 316 suits outdoor, coastal and pool-side work as well as indoors. The price shown is for one bracket, minimum order 5.

Dimension drawing of the 316 swept handrail bracket for 48.3mm rail: 58mm wall plate with three 5mm holes on a 42mm circle, 12mm arm, 85mm wall to rail centre, saddle 50mm above the arm centre, saddle 46 x 35mm with two 6mm holes 30mm apart

What you get

Sold as One bracket, minimum order 5
Bracket Round wall plate, 12mm swept round bar arm and fixed saddle, 316 stainless, satin
Saddle Curved to cradle a 48.3mm round rail (suits 48 to 50mm), with two screw holes
Not included The handrail, wall fixings and the screws into the rail

Why choose this bracket

A clean swept line. The arm curves up instead of turning a sharp corner, which looks lighter on a feature stair or a public frontage and leaves no inside corner to collect dirt.

More room for the hand. At 85mm from the wall to the rail centre it stands a little further out than the common 78mm brackets, and the arm meets the rail from below, so a hand can slide the full length without catching the bracket.

316 grade for outdoors. 316 stainless contains molybdenum, which gives it much better resistance to salt and chlorine than 304, so it is the right choice by the sea, around pools and on exposed entrances.

Specifications

Material 316 stainless steel, satin finish
Fits 48.3mm round handrail (48 to 50mm)
Wall plate 58mm round, 4mm thick, three 5mm holes on a 42mm circle
Arm 12mm round bar, swept upward
Wall to rail centre 85mm
Arm centre to saddle 50mm
Saddle 46mm along the rail x 35mm across, curved, two 6mm holes 30mm apart
Weight About 0.22 kg

Is this the right bracket?

Your situation Choose
48.3mm rail, outdoors, swept look This 316 bracket
48.3mm rail, outdoors, standard 78mm bracket 316 bracket 48.3mm, 78mm out
48.3mm rail, indoors 304 bracket 48.3mm
A saddle that tilts to the stair pitch 316 adjustable bracket 48.3mm
42.4mm rail, outdoors 316 bracket 42.4mm

Fitting

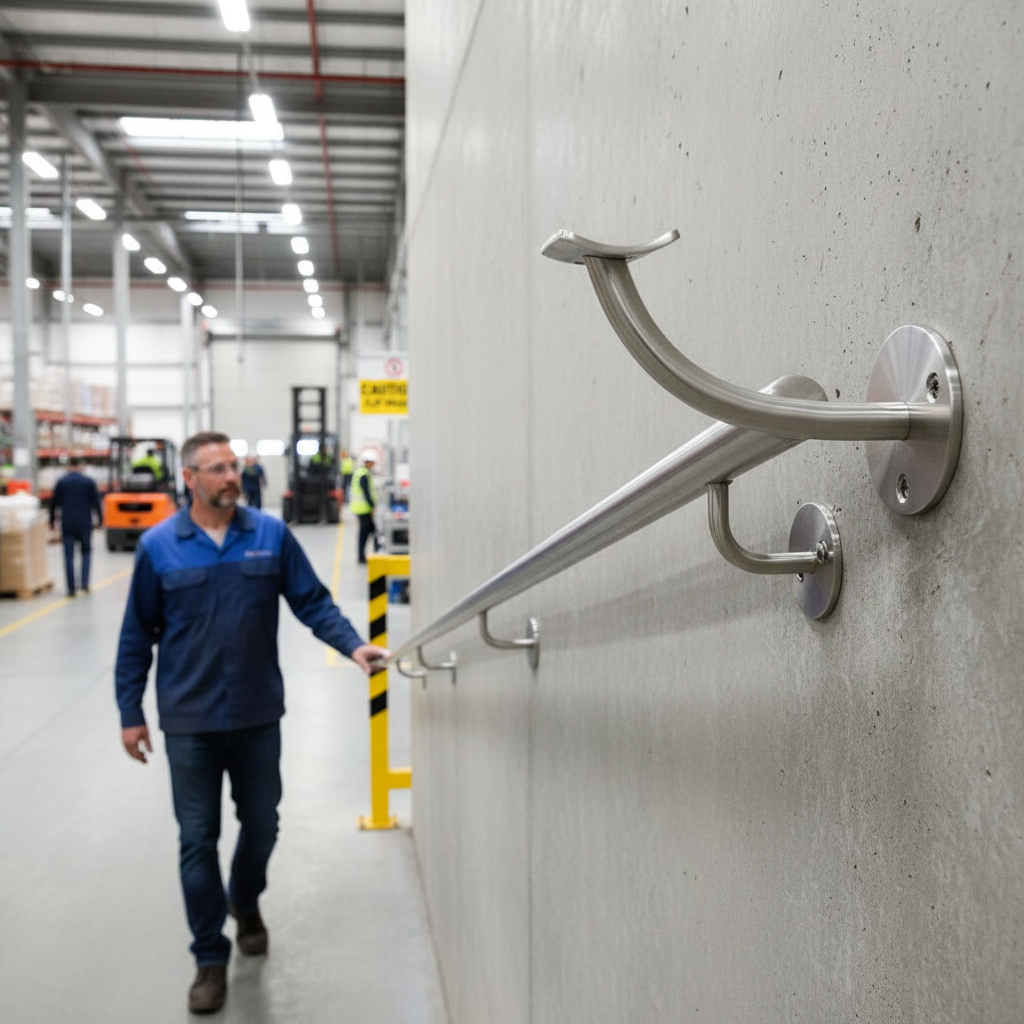

Brackets are usually spaced no more than about 1 metre apart, with one close to each end of the rail; follow your designer where the rail must take guarding loads. Mark the line of the rail on the wall at the height you need. The saddle sits 50mm above the centre of the plate and the rail centre about 74mm above it, so set the plates that far below the rail line. Fix each plate with three screws and plugs or anchors to suit the wall, stainless outdoors, lay the rail on the saddles and fix it to each saddle with two short screws from below into pre-drilled holes. On a stair the rail meets the fixed saddle at the stair angle; where you want the saddle to lie flat along a pitched rail, use the adjustable bracket.

Care

Outdoors, rinse the brackets and rail with fresh water and wipe along the grain every few weeks, more often near the sea or a pool, so salt and chlorine do not leave brown tea staining. Use warm soapy water; avoid chlorine bleach, wire wool and scouring pads, and use stainless screws so they do not rust stain the bracket.

Frequently asked questions

Is the price for one bracket?

Yes, one bracket. The minimum order is 5, which covers a rail of about 4 metres.

How many brackets do I need?

Allow one about every metre plus one near each end. A 3 metre rail usually takes 4.

Are screws included?

No. Choose wall fixings to suit the wall, and use short stainless screws through the saddle into the rail.

Will it fit a 42.4mm rail?

No, the saddle is curved for 48 to 50mm. Use the 316 bracket for 42.4mm rail.

Can it be used indoors?

Yes. 316 looks the same as 304 indoors; it simply costs a little more for its better corrosion resistance.

Ordering and delivery

Order online in any quantity from 5, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a full handrail with tube, bends and end caps, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm the parts and delivery before you order.
