Insert Lock for 50mm Box Section Gates, Stainless Hook and Self-Latching Bolt, Lock Only

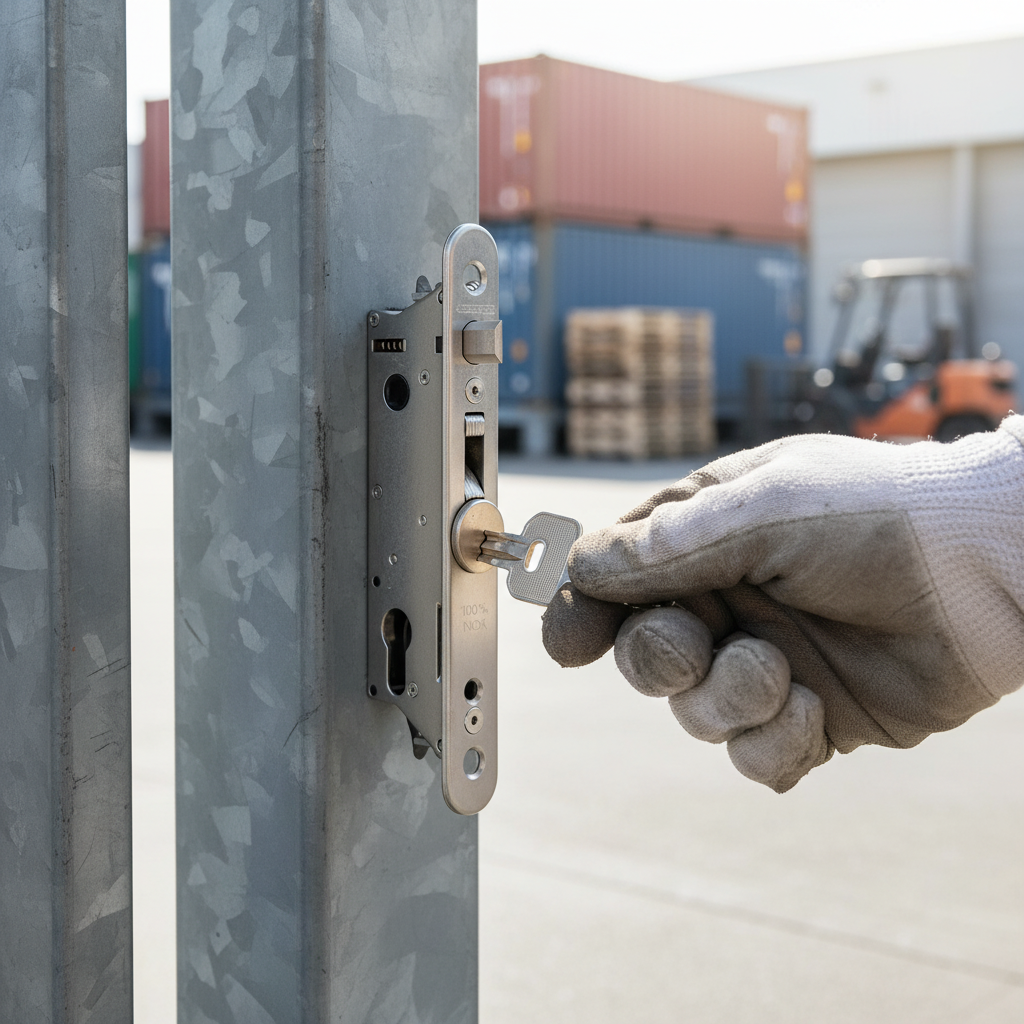

This is an insert lock for gates made from 50mm box section: a lock with a stainless steel mechanism that fits inside the gate stile, with a self-latching latch bolt and a stainless hook that grips the keep. Because the lock sits inside the stile, only the slim faceplate, handles and keyhole show, giving a neat finish and nothing on the face of the gate to attack. It mounts with the Click-It system in seconds, with no threads to tap in the profile. The price shown is for the lock only; handles, cylinder and keep are ordered separately.

Why use this lock

Hook and latch. The self-latching latch bolt catches as the gate closes, and the stainless hook throws 21mm into the keep so the gate cannot be pulled away from the post.

Quick to fit. The Click-It fixing locks it into the profile without tapping threads, and the latch bolt changes over for left or right-hand gates.

Adjustable. The latch bolt adjusts by up to 10mm without removing the lock, so it can be set to reach the keep exactly.

Built for outdoors. The mechanism, hook, front plate and latch bolt are stainless steel, with a cover plate to keep dirt out.

Where it is used

Fabricated steel, aluminium and PVC pedestrian gates in 50mm box section at homes, schools, offices, industrial units, sports grounds and public spaces.

Specifications

What else you need

Choosing the right option

Choose this lock for gates in 50mm box section when you already have, or want to choose, your own handles and euro cylinder. For a new gate, the complete kit adds the handles, cylinder, keep and two pre-cut profiles in one order. Match the lock to the box section: use the 40mm or 60mm insert lock for those sizes.

Fitting and care

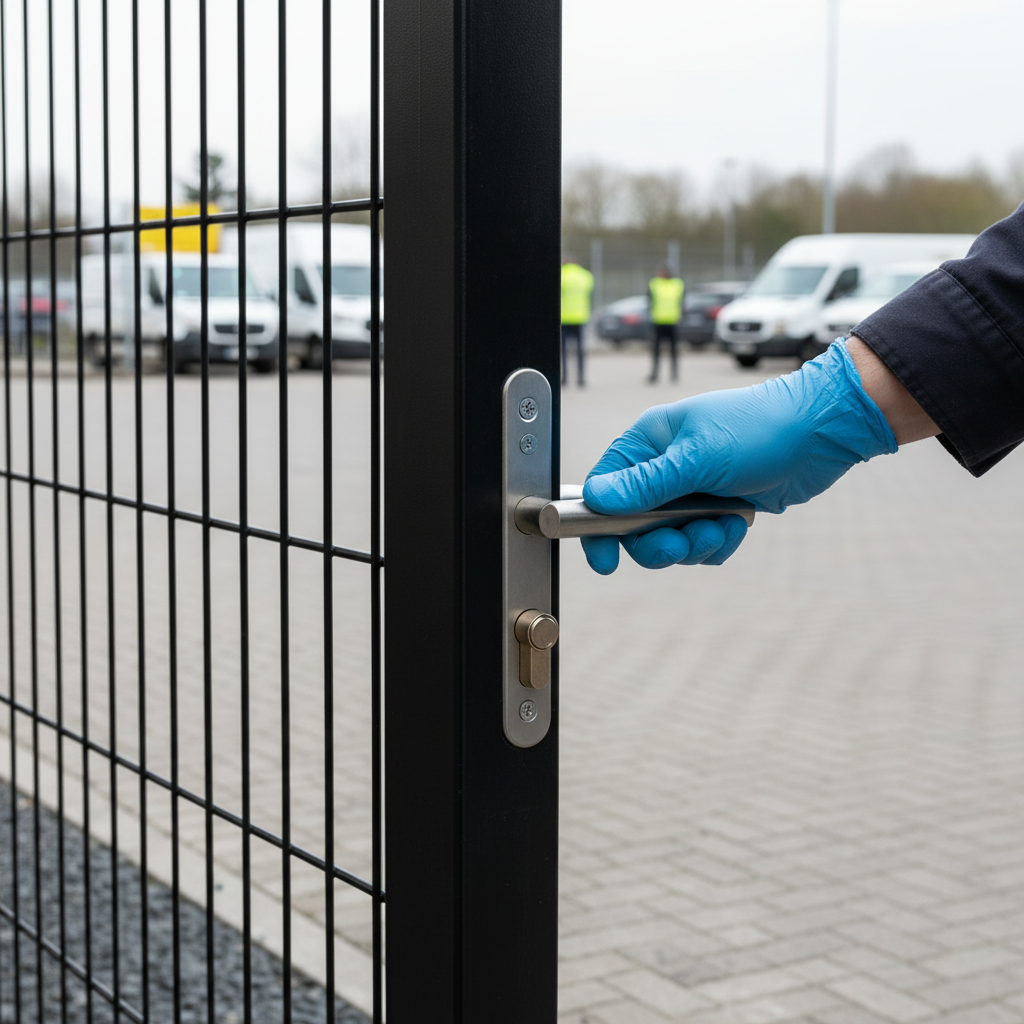

Cut the lock opening in the gate stile, or use a pre-cut profile, and click the lock into place. Fit a euro cylinder and handles on 92mm centres, and fit the keep in the post so the hook and latch bolt engage fully. Set the latch bolt with its 10mm adjustment. Keep the lock clean and put a little graphite in the cylinder once a year.

Frequently asked questions

Ordering and delivery

Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. To check the lock suits your gate, call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
