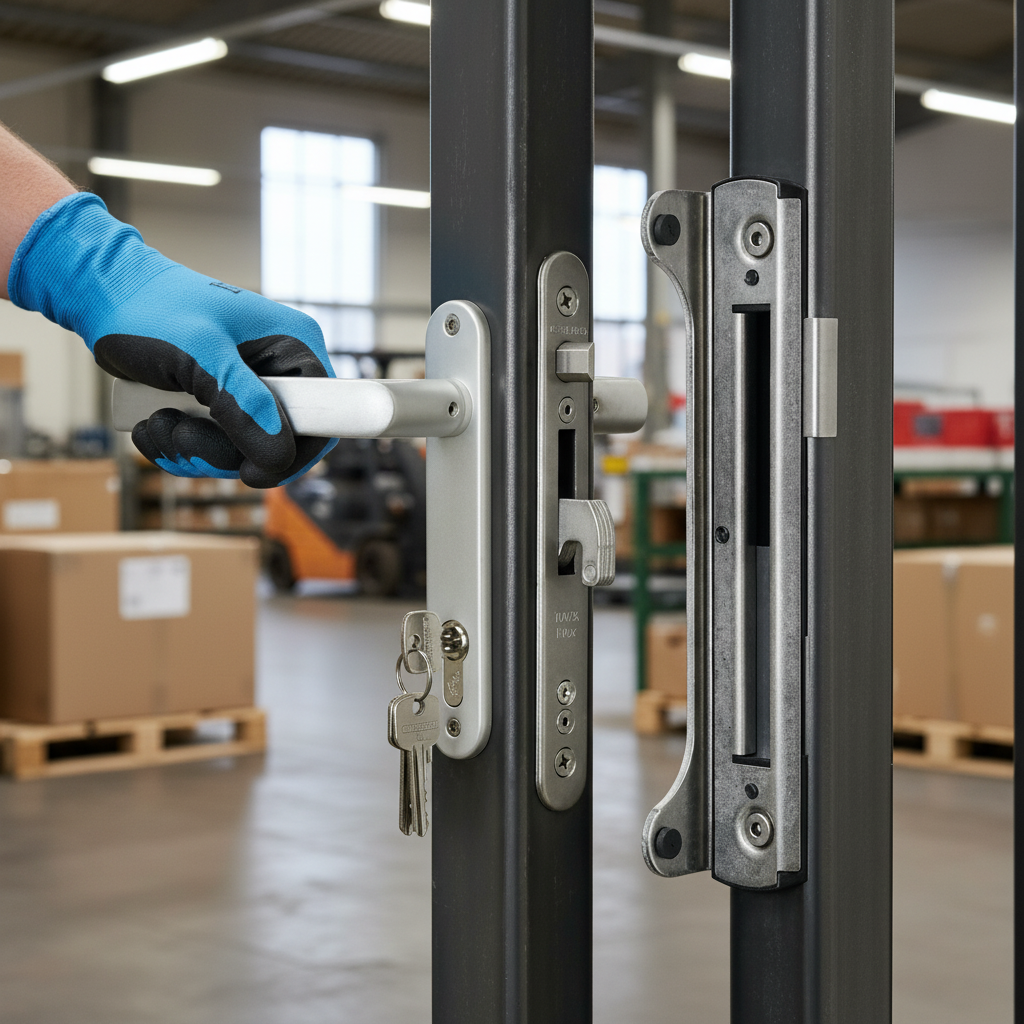

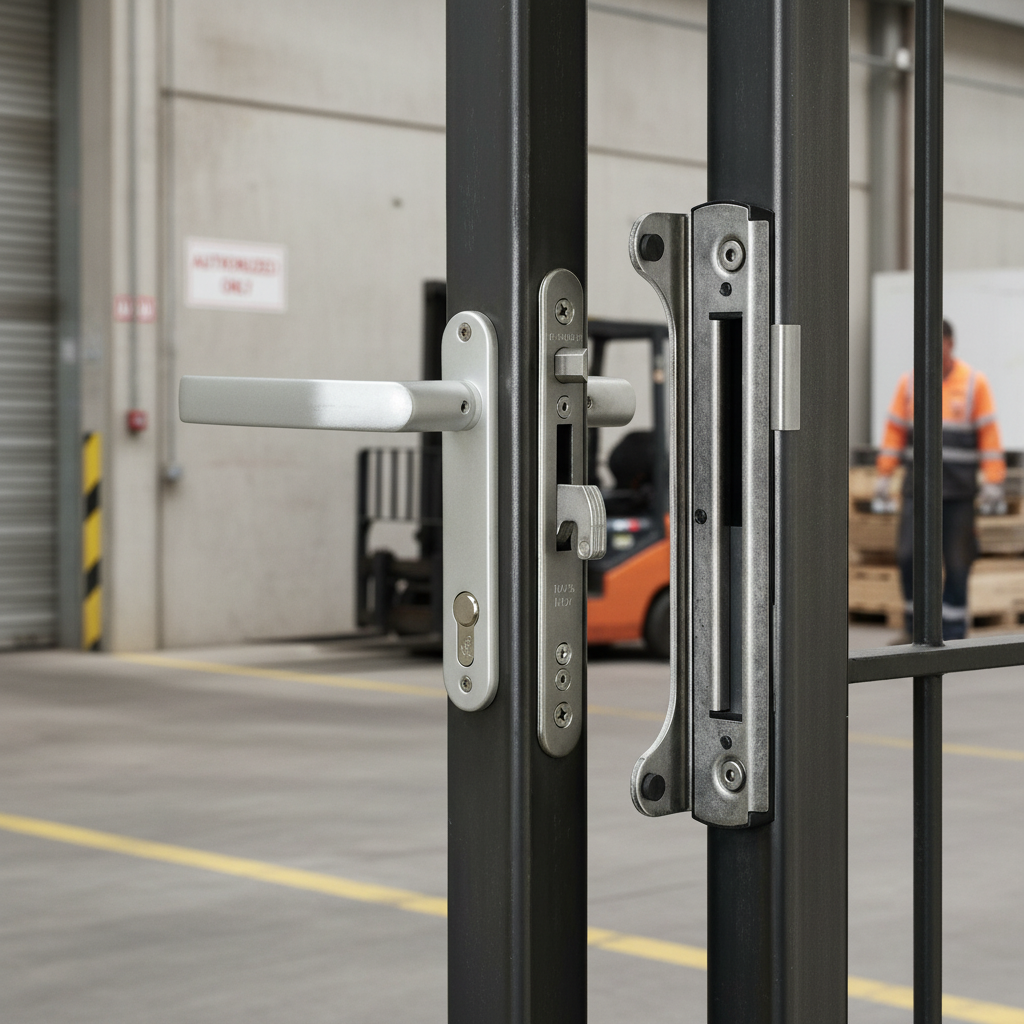

Premium Heavy Duty Lock Kit for 50mm Box Section with Stainless Steel Mechanism and Adjustable Self-Latching Bolt

Product Overview

This Premium Heavy Duty Lock Kit is specifically designed to suit a 50mm box section, providing enhanced security and ease of use. It includes two 2m box sections, ensuring compatibility with various gate types.

Kit Includes

• Lock
• 2 Aluminum Cover Plates
• Cylinder
• Aluminum Handle Set
• Stainless Steel Keep
• 2 x 2000mm Profile Box Section to Suit Lock and Keep

Features and Benefits

The lock features a 100% stainless steel mechanism, ensuring durability and resistance to wear. The adjustable self-latching bolt combined with the stainless steel keep guarantees a strong and solid closure, preventing the gate wings from being pulled apart or forced open. The installation process is made simple and quick thanks to the patented "Click-It" system.

• Lock mechanism with cover plate to prevent dirt penetration
• Backset of 30 mm, suitable for mounting in profiles of 50 mm depth or more
• Patented "Click-It" system eliminates the need for tapping threads in the profile
• Continuous adjustment of the daybolt up to 10 mm without dismounting the lockbox
• Key-operated self-latching bolt for added security
• Mechanism, hook, front plate, and latch bolt made of stainless steel
• Easy left or right change of the self-latching daybolt
• Stainless steel hook for secure anchoring
• Throw of the hook: 21 mm
• Center-distance cylinder to handles: 92 mm
• Compatible with all Europrofile cylinders

Dimensions & Specifications

FAQs

• Can this lock be installed on different types of gates?
  Yes, it can be installed on metal, aluminum, and PVC gates.
• How do I adjust the daybolt?
  The daybolt can be adjusted continuously up to 10 mm without dismounting the lockbox.
• What is the advantage of the "Click-It" system?
  This patented system simplifies the installation process by eliminating the need for tapping threads.
