Description
This hinge hangs a frameless glass gate or door from a wall, pier or flat post, so the glass swings with no frame around it. One leaf screws flat to the wall; the other clamps the glass between gaskets with two bolts that pass through holes in the glass. It suits glass 8mm to 12mm thick, is satin aluminium, measures 86 x 58 x 35mm, and comes with wall screws, plugs and a hex key. The price shown is for one hinge; most gates need two.

Why use this hinge
A gate that matches the glass. A frameless glass balustrade or pool fence looks best with a glass gate. This hinge keeps the gate all glass, with only a small satin leaf at the wall.
Bolted through the glass. Two bolts pass through holes in the glass and clamp it between gaskets, so the gate cannot slip out of the hinge even with heavy daily use.
Gaskets protect the glass. Fibre gaskets sit either side of the glass so metal never bears on it directly.
Complete kit. Screws, wall plugs and a hex key come in the box, so you can fit it to masonry straight away.
Where it is used
Glass garden gates hung from a house wall or brick pier; pool and hot tub gates; glass doors in shop fronts, receptions and display areas; and glass gates in frameless balustrades on terraces and decks.
Specifications
| What you get | One hinge with gaskets, glass bolts, wall screws, wall plugs and hex key |
|---|---|
| Type | Glass to wall |
| Size | 86 x 58 x 35mm, as published |
| Glass thickness | 8mm to 12mm |
| Glass preparation | Two holes for the bolts, drilled before toughening (positions not published; take them from the hinge) |
| Fixing to the wall | Three screws, plugs supplied |
| Material | Aluminium |
| Finish | Satin |
| Weight | About 0.23 kg |
Complete the gate
| You need | Part |
|---|---|
| Lock, glass gate to wall | Aluminium glass to wall gate lock |
| Lock, glass gate to glass panel | Aluminium glass to glass gate lock |
| Clamps for the fixed glass panels | 316 square glass clamp, flat back |
How many do you need?
Two hinges for a typical garden or pool gate up to waist height. A taller or wider door may need three; follow your glass supplier's advice for the panel weight.
Choosing the right option
Check the glass is 8mm to 12mm toughened safety glass. Because the bolts pass through the glass, the holes must be drilled before the glass is toughened: order the hinges first and give your glass supplier the hole positions from the hinge itself. The wall or post must be flat and solid where the hinge fixes. Leave a small even gap between the glass and the wall so the gate swings freely.
Fitting and care

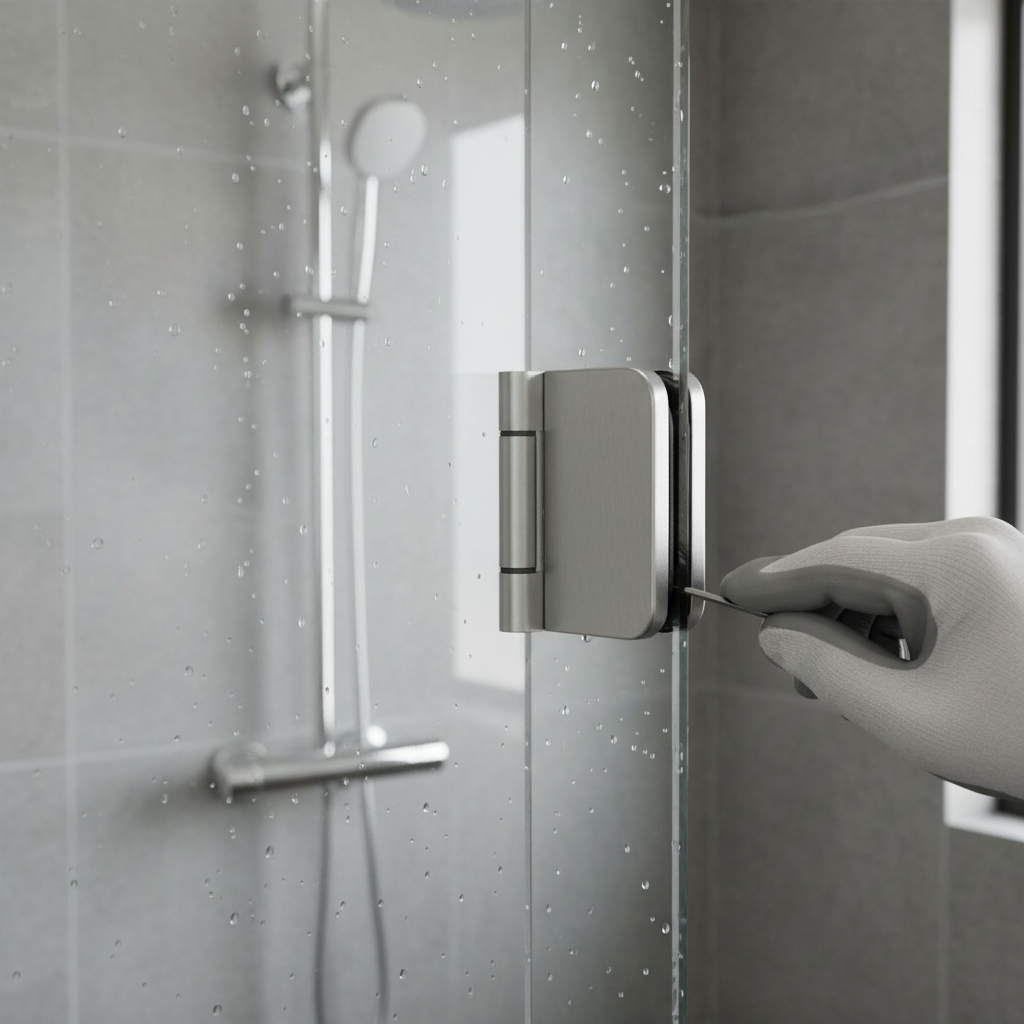

Mark the hinge positions on the wall with a level line, drill and plug, and screw the wall leaves on. Fit the gaskets either side of the glass, offer the glass up on packers, pass the bolts through and tighten them evenly with the hex key without overtightening. Check the swing and the gap, then remove the packers. Wipe with warm soapy water and a soft cloth.
Frequently asked questions
Is the price for one hinge?
Yes. The price is for one hinge with its fixings. Most gates need two.
Does the glass need holes?
Yes. Two bolts pass through the glass, so the holes must be drilled before the glass is toughened.
Can I hang it from a stainless post?
Yes, if the post has a flat face at least as wide as the wall leaf. Use machine screws into a tapped post instead of the wall screws supplied.
Is it self-closing?
No. It is a free-swinging hinge. For a pool gate that must self-close, check the requirement with your designer.
Ordering and delivery
Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. For a full glass gate, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will list the parts and confirm delivery before you order.
