90 Degree Weld Bend for 101.6mm Tube, Mild Steel Elbow for Handrails, 3.2mm Wall


Price:
Sale price£19.90
Inc. Vat

Express UK Delivery (2 Working Days)

In stock, ready to ship

Trusted by Industry Professionals

Description

A neat, strong 90 degree change of direction in 101.6mm tube. This raw steel elbow butt welds between two lengths of 101.6mm (90NB) tube, giving a smooth curve the same size as the tube instead of a sharp mitre or a squashed hand-bent tube. The ends are bevelled ready to weld. The price shown is for one weld bend, with a minimum order of 5.

Size guide for the 90 degree weld bend: 101.6mm outside diameter, 3.2mm wall, 132mm centre to face

Why use a weld bend

No mitres, no kinks. Bending tube by hand flattens it, and mitred joints leave sharp corners. A weld bend keeps the full round section through the turn.

Tight turns. With 132mm from centre to face, it fits where a pipe bender cannot, such as the corner where a ramp handrail turns along a landing or returns to a wall.

Ready to weld. Square cut, bevelled ends line up with the tube and give a full-strength butt weld.

Finish it with the frame. Self colour steel takes paint, powder coat, galvanising or plating with the rest of the job.

Where it is used

Stair and ramp handrails, balustrade top rails, guard rails and protection barriers, street furniture, cycle stands and any tubular frame in 101.6mm tube.

Specifications

What you get One 90 degree weld bend, minimum order 5
Suits tube 101.6mm outside diameter (90NB, 3 1/2 inch nominal bore)
Angle 90 degrees
Wall thickness 3.2mm
Centre to face 132mm
Ends Square cut and bevelled for butt welding
Material Mild steel, self colour (unpainted)
Weight 2.03kg

Fitting

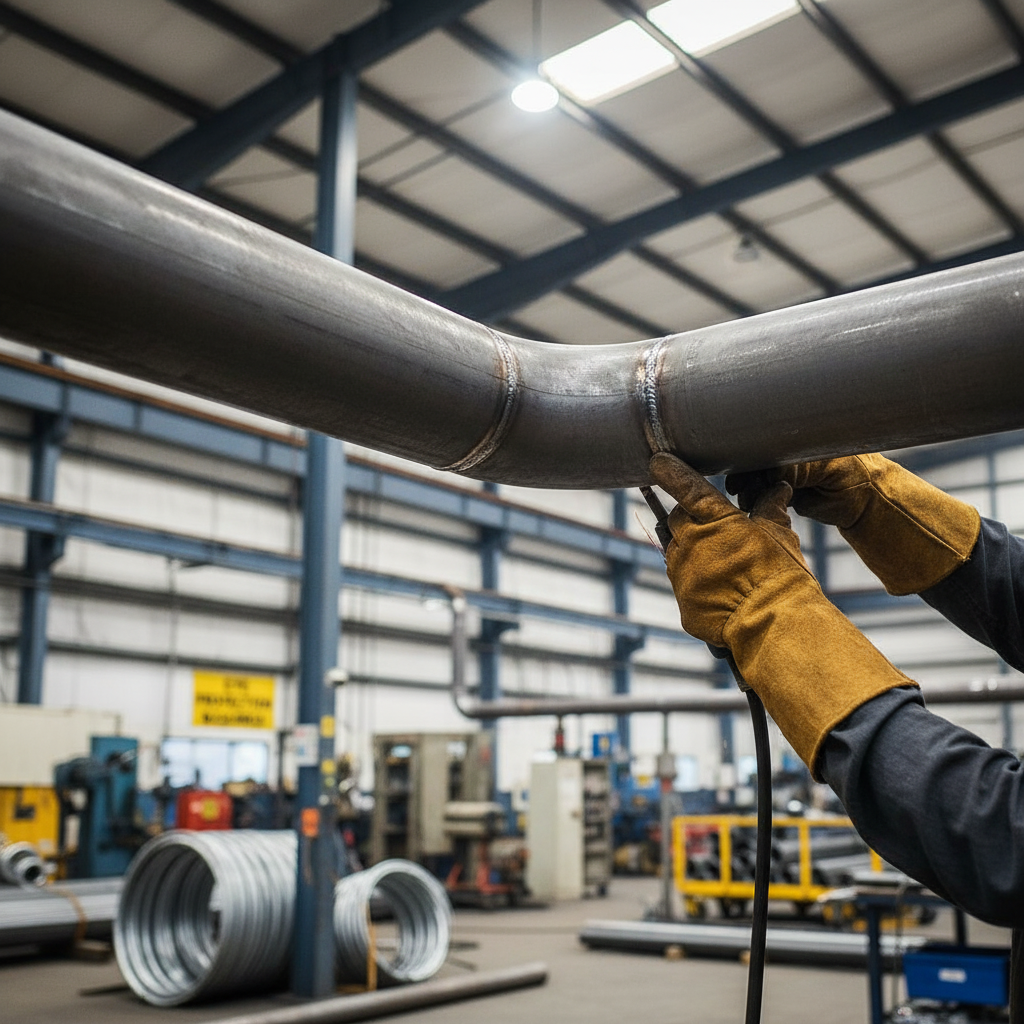

Cut the tube ends square and deburr them. Line the bend up with each tube, tack weld at three or four points, check the angle, then weld right round. Grind the welds flush and dress them smooth so the hand slides over the joint without catching. Prime and paint, powder coat or galvanise the finished frame.

Care

Raw steel will rust if left bare, so finish the frame soon after welding and touch up chips outdoors.

Frequently asked questions

Is the price for one bend?

Yes, one weld bend. The minimum order is 5.

Will it fit 101.6mm tube with a thicker wall?

Yes. The outside diameter matches all 101.6mm tube; the wall of the bend is 3.2mm, so the inside will step slightly on thicker tube, which makes no difference to an outside butt weld.

Can I make a U-turn or return?

Yes. Two 90 degree bends welded back to back make a 180 degree return, for example at the end of a handrail.

Do you have other sizes?

Yes: 90 degree bend for 88.9mm tube, 90 degree bend for 114.3mm tube, and more in Handrails & Brackets.

Ordering and delivery

Order 5 or more online with Express UK Delivery. For larger quantities call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
