316 Stainless Steel Acute 90 Degree Elbow for 48.3 x 2.6mm Handrail Tube


Price:
Sale price£37.90
Inc. Vat

Express UK Delivery (2 Working Days)

In stock, ready to ship

Trusted by Industry Professionals

Description

A 316 stainless acute 90 degree elbow with a crisp mitred corner, for 48.3mm handrail tube with a 2.6mm wall. A 20mm spigot on each end pushes into the tube bore and the body is the same 48.3mm as the tube, so the joint is flush and the rail turns a sharp, tidy right angle. It suits rails turning a square corner on a landing, rails meeting a post at a right angle, and modern designs where a clean square corner looks best. Satin 316 suits outdoor, coastal and pool-side rails. The price shown is for one elbow.

Dimension drawing of the 316 acute 90 degree elbow for 48.3 x 2.6mm tube: 88mm from the outside of the corner to each spigot end, 20mm spigots 43mm across, 39.5mm bore, 48.3mm body

What you get

Sold as One acute 90 degree elbow
Elbow Tight mitred corner with a push-in spigot on each end, 316 stainless, satin
Not included The tube, adhesive or weld

Why choose this elbow

A crisp, compact corner. The tight mitred body keeps the corner small and square, so the rail hugs a wall corner or post closely and looks sharp in modern interiors.

Flush with the tube. The body is 48.3mm, the same as the rail, so once fitted only a fine joint line shows at each end.

Made for 2.6mm wall tube. The 43mm spigots fit the bore of 48.3 x 2.6mm tube. For thinner 2.0mm wall tube use the 316 acute elbow for 48.3 x 2.0mm tube.

Specifications

Material 316 stainless steel, satin finish
Fits 48.3mm tube with a 2.6mm wall
Angle 90 degrees, acute (mitred)
Size 88mm from the outside of the corner to each spigot end
Spigots 20mm long, 43mm across, 39.5mm bore
Weight About 0.34 kg

Is this the right elbow?

Your tube and corner Choose
48.3 x 2.6mm, sharp corner This 316 acute elbow
48.3 x 2.0mm, sharp corner 316 acute elbow 48.3 x 2.0mm
48.3 x 2.6mm, rounded corner 316 radiused elbow 48.3 x 2.6mm

Fitting

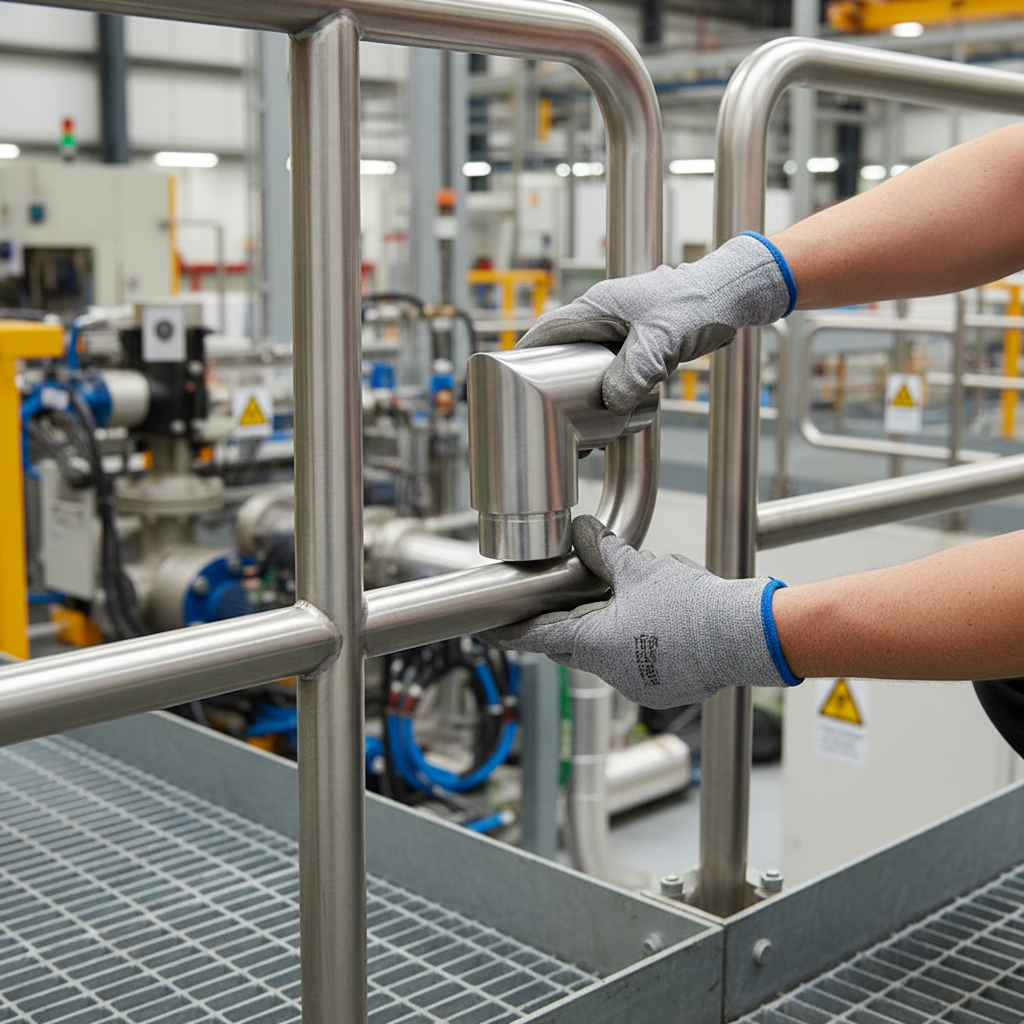

Cut the tube ends square and deburr the bore. Push a spigot into each tube until the elbow body meets the tube end. Fix with a structural adhesive suitable for stainless steel, or tack weld round each joint and dress the weld back along the grain for a seamless finish.

Care

Outdoors, rinse with fresh water and wipe along the grain every few weeks, more often near the sea or a pool, so salt and chlorine do not leave brown tea staining. Use warm soapy water; avoid chlorine bleach, wire wool and scouring pads.

Frequently asked questions

Is the price for one elbow?

Yes, one acute 90 degree elbow.

Will it fit 48.3 x 2.0mm tube?

No. The spigots are sized for the bore of 2.6mm wall tube. Use the 48.3 x 2.0mm acute elbow instead.

Acute or radiused?

The acute elbow gives a sharp, compact square corner. The radiused elbow sweeps round a wider curve that is softer to the hand. Both turn 90 degrees and fit the same tube.

Does it need welding?

No. It can be bonded with a structural adhesive, though welding and dressing gives the cleanest joint on public rails.

Ordering and delivery

Order online in any quantity, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a full handrail with tube, elbows, brackets and ends, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm the parts and delivery before you order.
