Description
A 316 stainless 90 degree elbow with a smooth swept bend, for 48.3mm handrail tube with a 2.6mm wall. A 20mm spigot on each end pushes into the tube bore and the body is the same 48.3mm as the tube, so the joint is flush and the rail turns a gentle rounded corner instead of a tight mitre. It suits top rails turning down a stair, rails changing direction on a landing, and rail ends returned to a post or wall. Satin 316 suits outdoor, coastal and pool-side rails. The price shown is for one elbow.

What you get
| Sold as | One radiused 90 degree elbow |
|---|---|
| Elbow | Swept bend with a push-in spigot on each end, 316 stainless, satin |
| Not included | The tube, adhesive or weld |
Why choose this elbow
A softer corner. The swept bend gives a smooth, comfortable change of direction that is kinder to the hand than a tight mitred elbow, which matters on public stairs and ramps.
Flush with the tube. The body is 48.3mm, the same as the rail, so once fitted only a fine joint line shows at each end.
Made for 2.6mm wall tube. The 43mm spigots fit the bore of 48.3 x 2.6mm tube. For thinner 2.0mm wall tube use the 316 radiused elbow for 48.3 x 2.0mm tube.
Specifications
| Material | 316 stainless steel, satin finish |
|---|---|
| Fits | 48.3mm tube with a 2.6mm wall |
| Angle | 90 degrees, radiused |
| Size | 94.5mm from the outside of the bend to each spigot end |
| Spigots | 20mm long, 43mm across, 40.3mm bore |
| Wall through the bend | 2.8mm |
| Weight | About 0.33 kg |
Is this the right elbow?
| Your tube and corner | Choose |
|---|---|
| 48.3 x 2.6mm, rounded corner | This 316 radiused elbow |
| 48.3 x 2.0mm, rounded corner | 316 radiused elbow 48.3 x 2.0mm |
| 48.3 x 2.0mm, tight corner | 316 flush 90 degree elbow 48.3mm |
Fitting

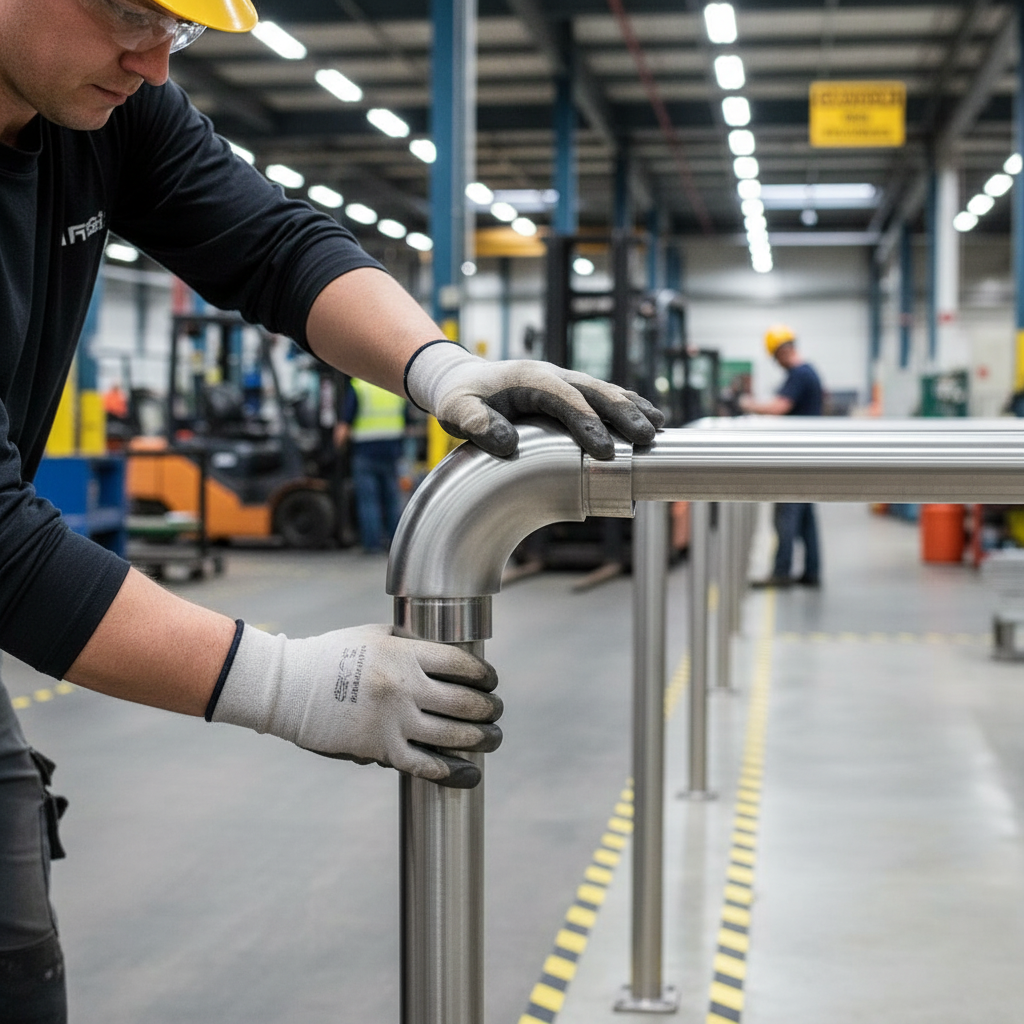

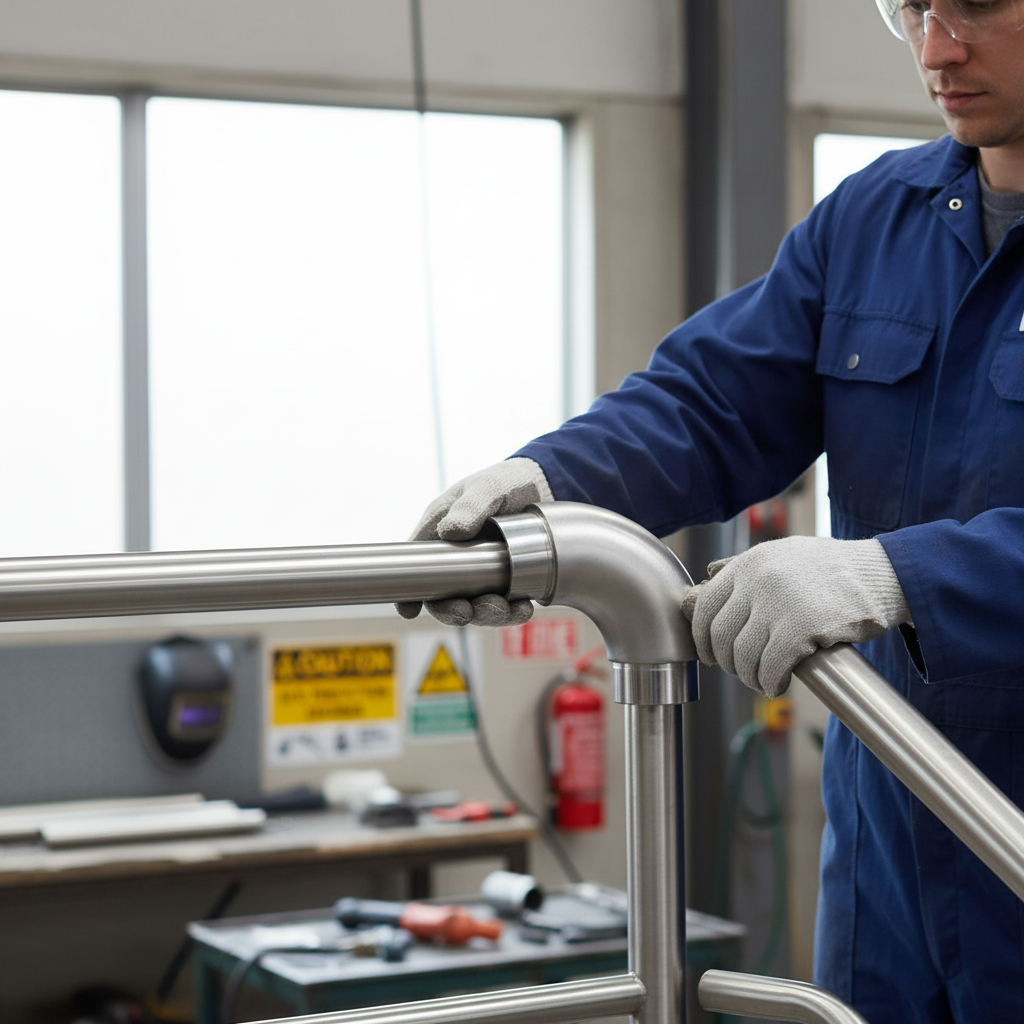

Cut the tube ends square and deburr the bore. Push a spigot into each tube until the elbow body meets the tube end. Fix with a structural adhesive suitable for stainless steel, or tack weld round each joint and dress the weld back along the grain for a seamless finish.
Care
Outdoors, rinse with fresh water and wipe along the grain every few weeks, more often near the sea or a pool, so salt and chlorine do not leave brown tea staining. Use warm soapy water; avoid chlorine bleach, wire wool and scouring pads.
Frequently asked questions
Is the price for one elbow?
Yes, one radiused 90 degree elbow.
Will it fit 48.3 x 2.0mm tube?
No. The spigots are sized for the bore of 2.6mm wall tube. Use the 48.3 x 2.0mm radiused elbow instead.
Can it turn a rail down a stair?
It turns through a full 90 degrees. For the shallower change of direction at the top or bottom of a flight, an adjustable elbow is usually used.
Does it need welding?
No. It can be bonded with a structural adhesive, though welding and dressing gives the cleanest joint on public rails.
Ordering and delivery
Order online in any quantity, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a full handrail with tube, elbows, brackets and ends, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm the parts and delivery before you order.
