Weld-On Gate Pin 30mm, Forged Steel Gate Hook for Heavy Gates


Price:
Sale price£19.90
Inc. Vat

Express UK Delivery (2 Working Days)

In stock, ready to ship

Trusted by Industry Professionals

Description

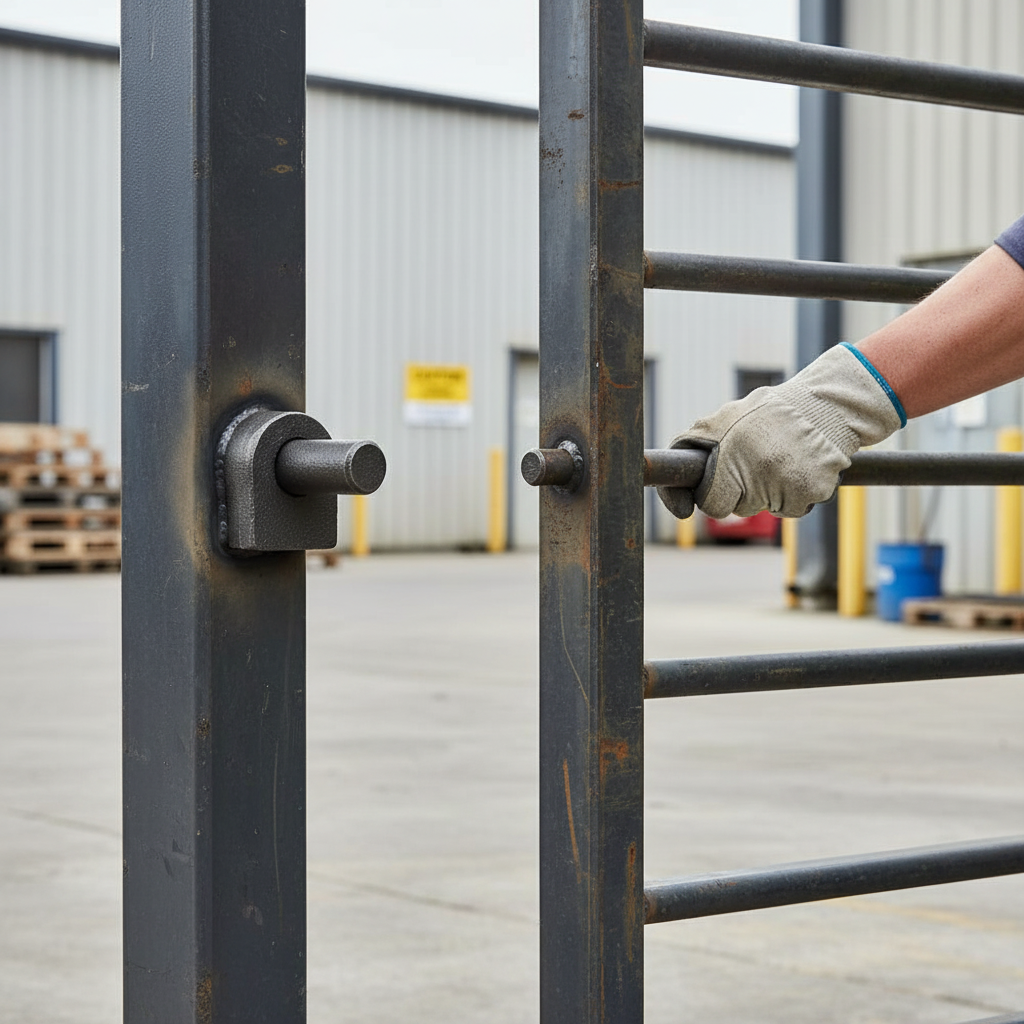

The heavy-duty pin for hanging big steel gates. A solid forged gate pin with a 30mm pin standing 55mm up from a thick 50 x 70 x 25mm base. Weld the square end of the base to the gate post and drop the gate's eye or wrap-around hinge over the pin. Forged in one piece, so there is no weld between pin and base to fail, and at just over a kilo it is made for heavy field, yard and driveway gates. The price is for one pin, minimum order 6.

Dimension drawing of the 30mm weld-on gate pin: base 50 x 70 x 25mm, pin 29.8mm across and 55mm tall, with the table of all five pin sizes

Why choose a forged gate pin

One piece of steel. The pin and base are forged together, so the only weld is the one you make to the post, on a big flat face.

Big bearing face. The 25mm thick base carries the gate's weight straight into the post, and the 30mm pin gives the eye a wide surface to turn on, so it wears slowly.

Lift-off hanging. Lift the gate on and off the pins for painting and repairs. Turn the top pin upside down and the gate cannot be lifted off at all.

Raw steel. No plating to grind off before welding. Paint or galvanise it with the post.

Where it is used

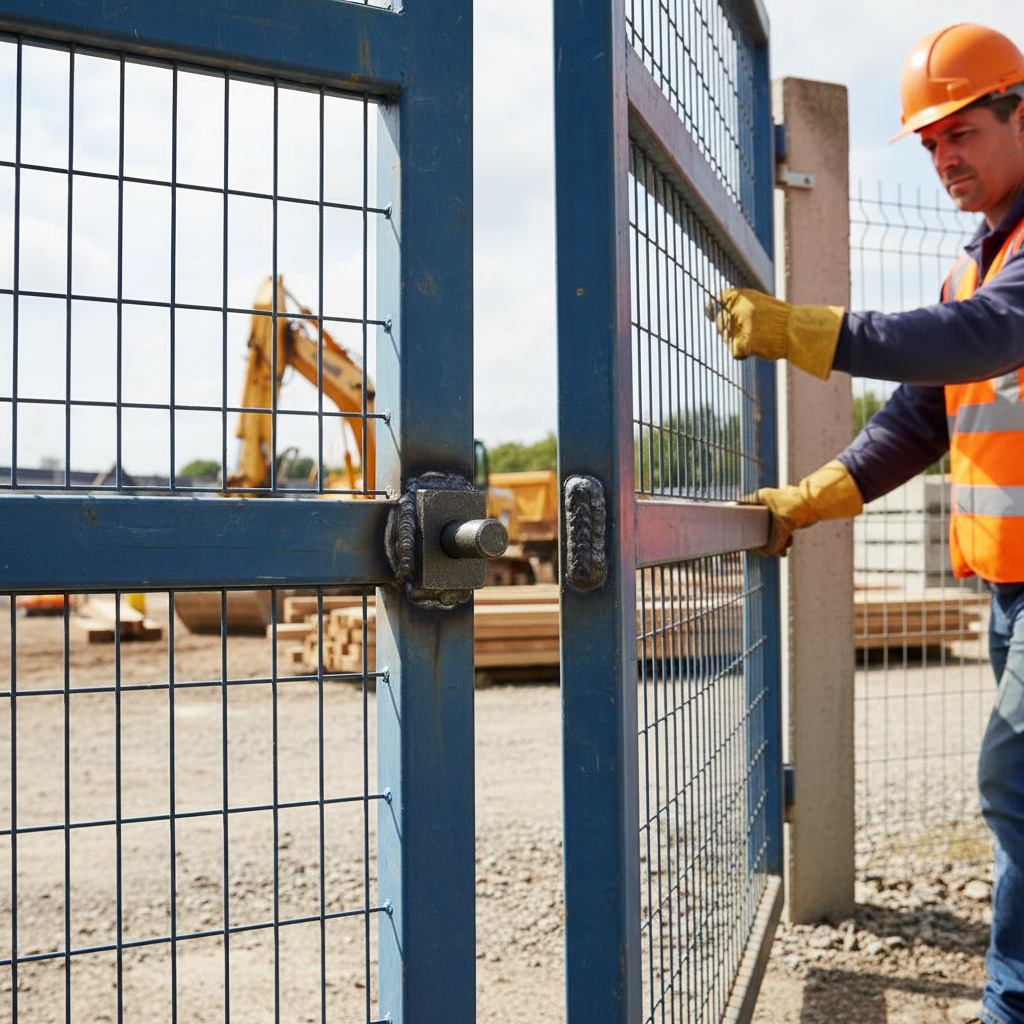

Field and farm gates, yard and compound gates, heavy driveway gates, industrial and security gates, cattle and equestrian gates, and large shed or barn doors hung on steel posts.

Specifications

Sold as One pin, minimum order 6
Pin 29.8mm across (30mm nominal), 55mm tall
Base 50mm wide, 70mm long, 25mm thick, one square end and one rounded end
Material Forged mild steel
Finish Raw steel, ready to weld
Fits 30mm gate eyes and wrap-around hinges made for a 30mm pin
Weight About 1.03 kg

What goes with it

You need Choose
An adjustable hinge that wraps round this pin, with a nut M20 wrap-around hinge for 30mm pin
The same, with a weld-on jointed plate bracket M20 wrap-around hinge, jointed plates
The same, on a 100 x 100mm back plate M20 wrap-around hinge, back plate
A smaller pin for garden and side gates 20mm gate pin or 12mm gate pin

Fitting

Fit two pins per gate leaf. Grind the post clean, then hold each pin with the square end of its base flat against the side of the post and the pin upright. Check the two pins are in one vertical line with a straight edge or plumb line, then tack, check again and weld all round the square end. Let them cool, prime and paint. Hang the gate by lowering its eyes onto the pins. For security, weld the top pin upside down so it points into the top eye from above.

Care

Grease the pin each spring so the eye turns freely and quietly. Touch up chipped paint on the base to stop rust creeping under the weld.

Frequently asked questions

Is the price for one pin?

Yes. The minimum order is 6, enough for three gate leaves.

Can it be bolted on?

No, it is made to be welded to a steel post. For a timber post use a bolt-through hinge.

Which eye fits it?

Any gate eye or wrap-around hinge made for a 30mm pin.

Can I galvanise it?

Yes. Weld it to the post first, then galvanise or paint the whole post.

How do I stop the gate being lifted off?

Weld the top pin upside down, pointing down into the top eye. The gate can then only come off by cutting.

Ordering and delivery

Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. For fabricators and farm suppliers buying in quantity, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm stock and delivery before you order.
