Description

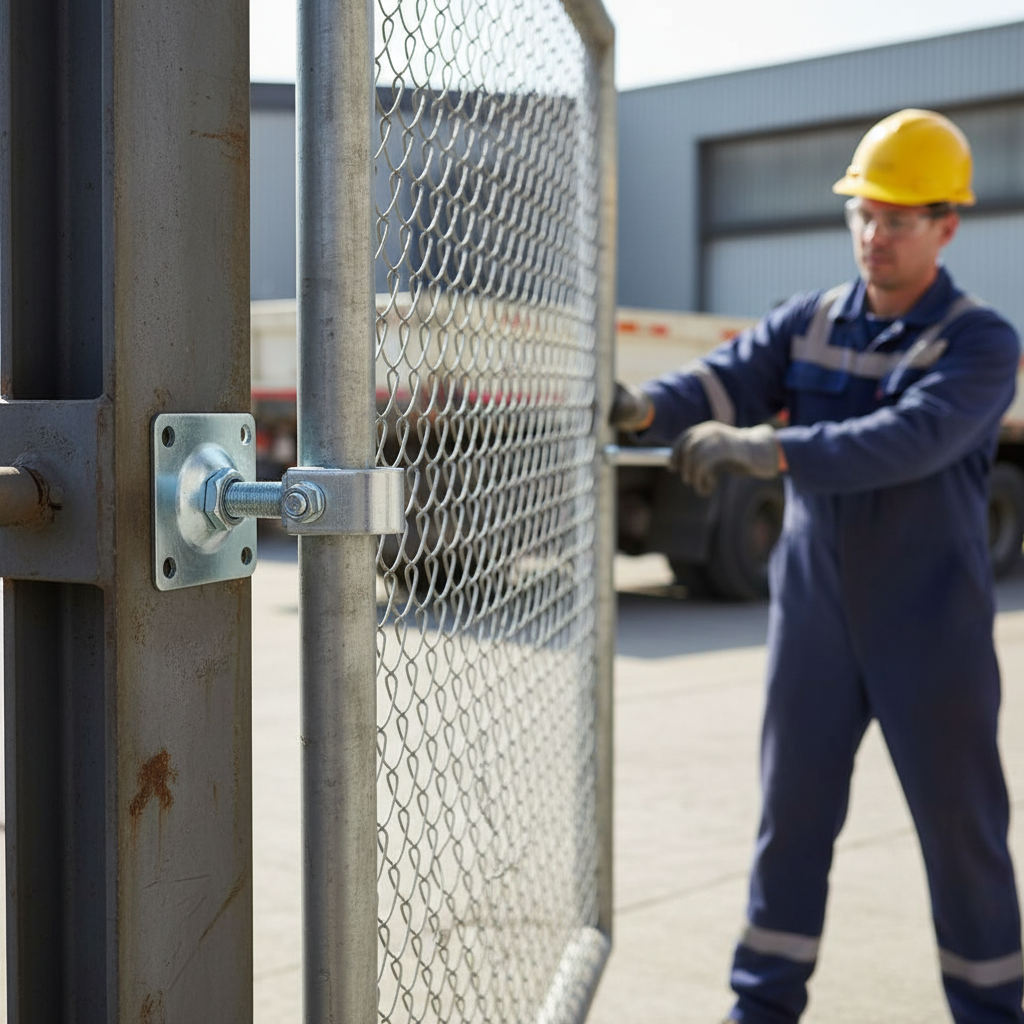

A heavy adjustable wrap-around gate hinge that bolts to the post or wall. A square 100mm zinc plate fixes to the post, pier or wall with four bolts. A thick M20 threaded bar runs through it, locked by a nut each side, and ends in a cast block with a flat steel strap that wraps round a 30mm round hinge pin on the gate. Move the nuts along the bar to bring the gate in or out and level it, and take the gate off by undoing one clamp bolt. Rated for gates up to 500kg on two hinges. The price is for one complete hinge.
Why choose this hinge
No welding at the post. The plate bolts on, so it suits brick and stone piers, concrete posts, timber posts and walls as well as steel posts.
Adjust after hanging. Two nuts on a 65mm thread let you move the gate in or out and level it, now or years later as the gate settles.
Wrap-around strap. The strap clamps round a 30mm round pin and turns on it, a strong, simple pivot that takes the gate off easily when the clamp bolt is undone.
Rated for 500kg. Two hinges carry driveway gates, yard gates and heavy pedestrian gates.
Where it is used
Steel driveway and yard gates hung on brick piers, concrete or steel posts, farm and industrial gates, and gates being re-hung where an older hinge has worn out.
Specifications
| Sold as | One hinge |
|---|---|
| In the pack | Back plate with M20 threaded bar and two nuts, cast block, wrap-around strap, clamp bolt and nuts |
| Back plate | 100 x 100mm, 4mm thick, 4 holes 11mm at 75mm centres |
| Thread | M20, 65mm |
| Overall | 130mm, strap to plate face |
| Strap | For a 30mm round pin (31mm inside), 42mm outside, 58mm long, 35mm high |
| Gate weight | Up to 500kg on two hinges |
| Material and finish | Steel, bright zinc plated |
| Weight | About 0.94 kg |
Which wrap-around hinge do you need?
| You want | Choose |
|---|---|
| To bolt to a post or wall, 30mm pin, 500kg | This hinge |
| To weld a nut to a steel post, 30mm pin, 500kg | M20 wrap-around hinge with nut |
| To pass through a post, 30mm pin, 500kg | M20 wrap-around hinge with jointed plates |
| Heavier gates, 35mm pin, 700kg | M24 wrap-around hinge with nut |
| Heavier gates through a post, 35mm pin | M24 wrap-around hinge with jointed plates |
Fitting

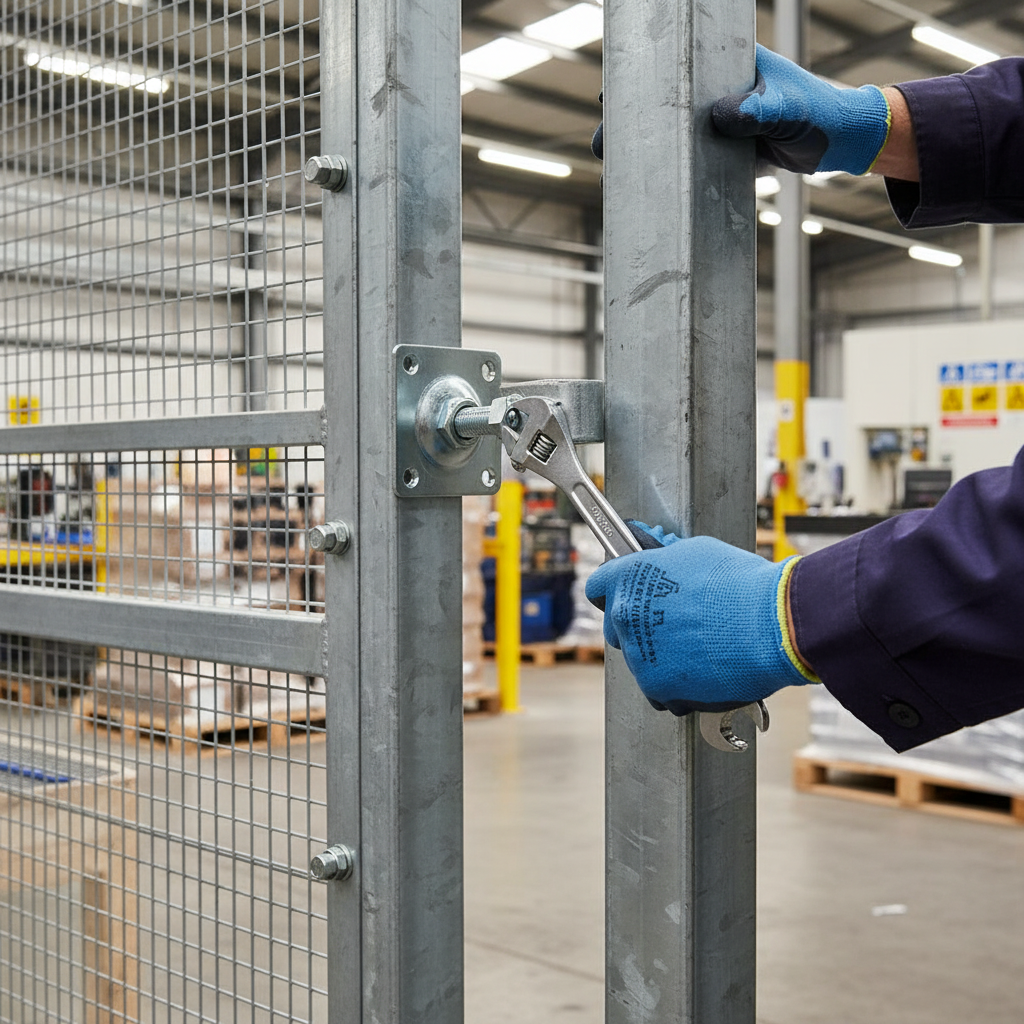

Use two hinges per gate leaf, one near the top and one near the bottom, with a 30mm round hinge pin fixed to the gate at each height. Mark the plate holes on the post in a vertical line and fix each plate with four M10 bolts, anchors or coach screws to suit the post. Stand the gate on packers, wrap each strap round its pin and fit the clamp bolt. Set the nuts on the bar so the gate hangs level with an even gap, then tighten both nuts hard against the plate and remove the packers.
Care
Grease the pin inside the strap once a year and check the nuts and fixings each spring.
Frequently asked questions
Is the price for one hinge?
Yes, one complete hinge. Most gate leaves need two.
Is the hinge pin included?
No. The strap wraps round a 30mm round pin fixed to the gate, which is bought separately or made up by your fabricator.
What fixings do I need for the plate?
Four M10 bolts, anchors or coach screws suited to your post or wall. They are not included.
Is it left or right handed?
Neither. It works on either side.
Will it carry a 500kg gate on its own?
No. The 500kg rating is for a gate hung on a pair of hinges. Heavy gates also need a firm post and a stop or wheel.
Ordering and delivery
Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. For larger quantities call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm stock and delivery before you order.
