Industrial Gate Lock for 30-50mm Box Section, Silver with Aluminium Handles

This is a heavy-duty surface-mounted gate lock for swing gates made from 30mm to 50mm square box section, in silver with satin silver anodised aluminium U-shaped lever handles: a self-latching day bolt that catches every time the gate closes, and a solid stainless steel deadbolt thrown 23mm by one turn of the key. It bolts to the face of the gate stile, so the gate does not need to be cut, and the E-coated lock box is salt spray tested for 1000 hours, so it stands up to exposed industrial, school and public sites. The price shown is for one lock with handles, cylinder and keys; the keep for the post is sold separately.

Why use this lock

Latches and locks. The day bolt latches as the gate closes and can also be key-locked, while one turn of the key throws the stainless deadbolt 23mm into the keep.

Adjust without removing it. The bolts adjust continuously by up to 20mm without taking the lock box off, so the lock can be set to reach the keep exactly as the gate settles. The day bolt changes over for left or right-hand gates.

Quick to fit. A 4-hole fixing with two hexagon socket head screws mounts it on the face of the stile, with no cutting into the gate.

Built for outdoors. The lock box is E-coated to ISO 9227 and tested to 1000 hours of salt spray, with a stainless steel mechanism inside.

Where it is used

Pedestrian and personnel gates in 30mm to 50mm square box section at industrial estates, schools, parks, sports grounds, offices, blocks of flats and homes, wherever a keyed lock with a latch is needed.

Specifications

What else you need

Other profiles and finishes

Choosing the right option

Match the lock to the gate stile: this one is for 30mm to 50mm square box section. Versions are available for flat bar from 10mm to 30mm, and for box section from 30mm to 50mm and 60mm to 80mm, in black with ornate or aluminium handles, or silver. Order a keep for the post: the standard keep for most gates, the security keep where the gate is likely to be forced, or an electric keep for remote release.

Fitting and care

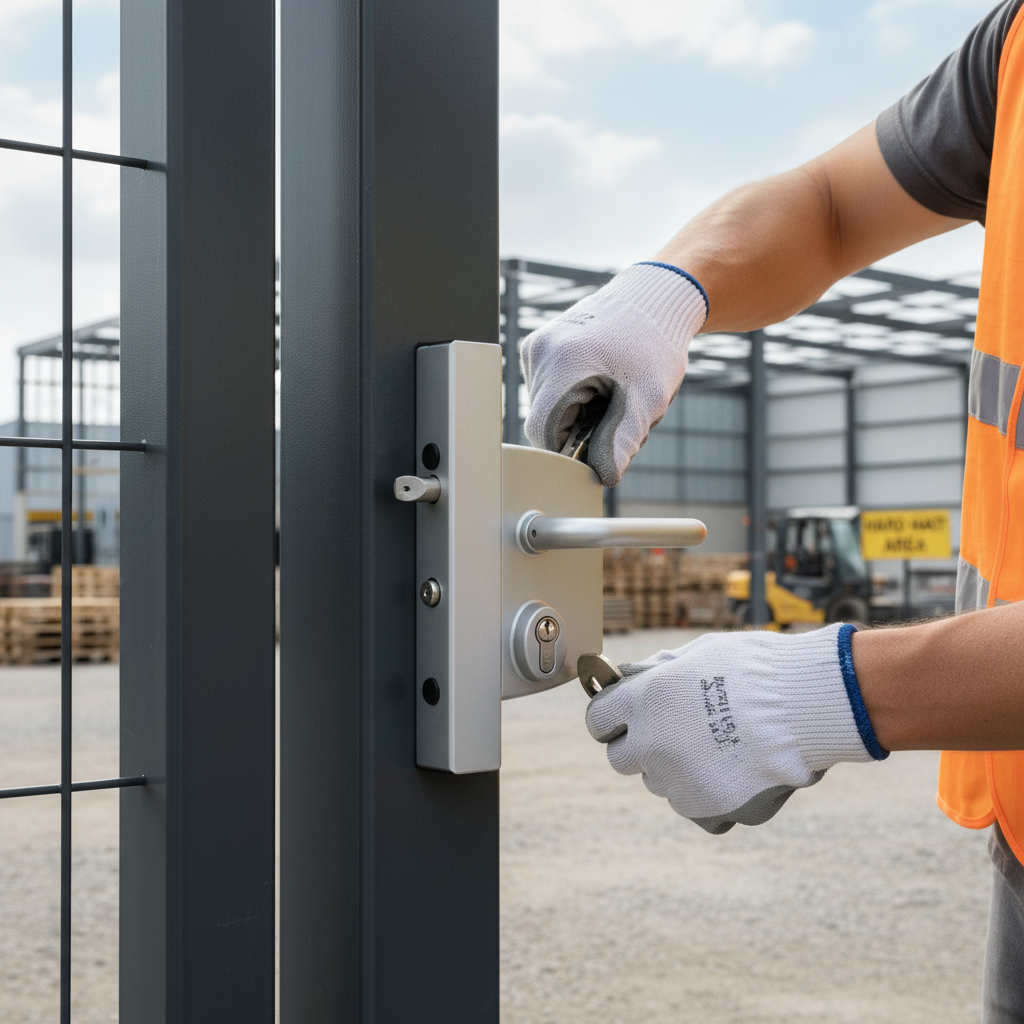

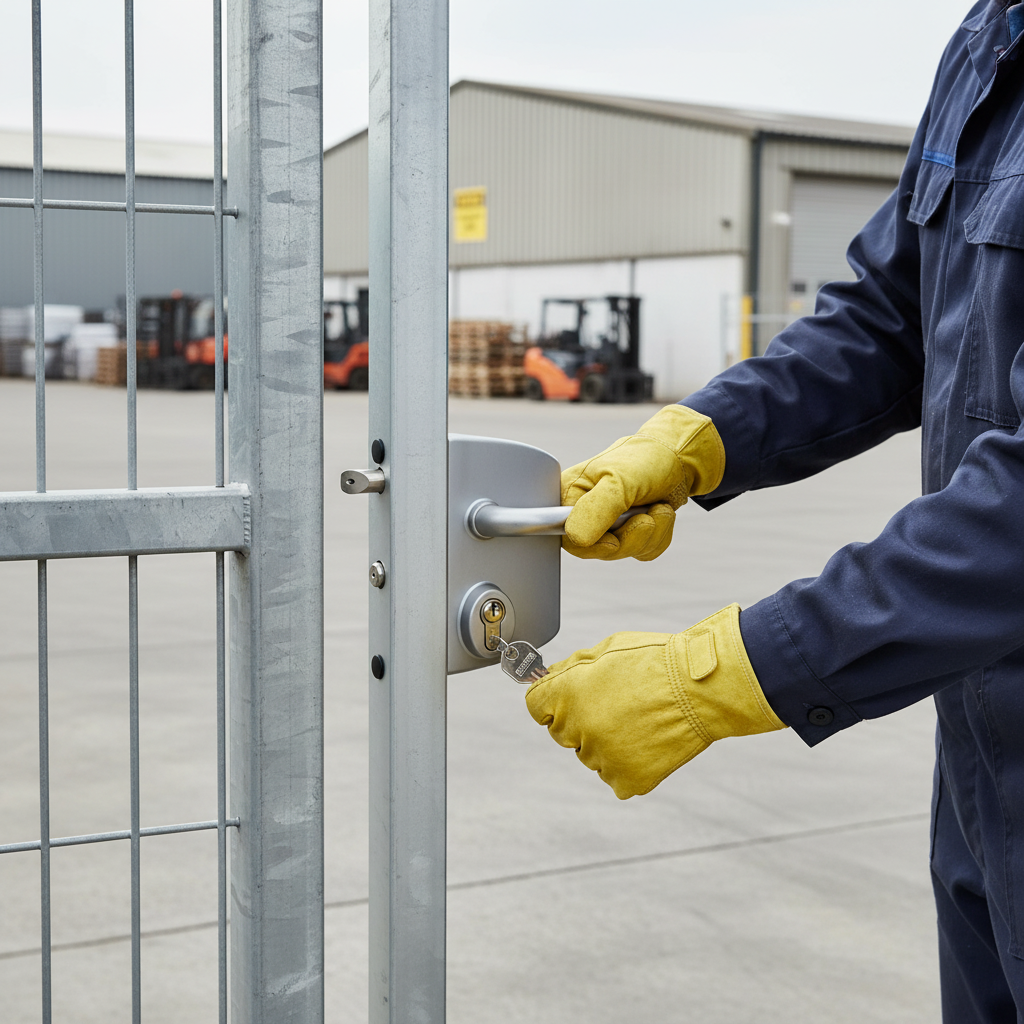

Fix the lock to the face of the gate stile through the four holes with the screws supplied, fit the handles and cylinder, and fit the keep on the post so both bolts engage fully. Set the bolts with the 20mm adjustment, and fit a safety cable if the gate swings. Keep the bolts clean and put a little graphite in the cylinder once a year.

Frequently asked questions

Ordering and delivery

Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. For several gates, or to check the lock and keep suit your gate, call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
