Insert Lock Kit for 60mm Box Section Gates, Black Handles, Cylinder, Keep and 2 Pre-Cut 2m Profiles

This is a complete insert lock kit for building a 60mm box section steel gate: an insert lock with a stainless steel mechanism, a black aluminium lever handle set with black cover plates, a euro cylinder with keys, a stainless keep, and two 2000mm lengths of 60mm box section already cut to take the lock and the keep. One length becomes the gate's closing stile with the lock hidden inside it; the other becomes the post with the keep set into it. Everything lines up first time, with no lock or keep slots to mark out and cut. The price shown is for one complete kit.

Why use this kit

Hook and latch. As well as a self-latching latch bolt, the lock throws a stainless hook 21mm into the keep, so the gate cannot be pulled away from the post or forced open.

No slot cutting. Both lengths of box section are pre-cut for the lock and keep, which saves the most time-consuming and error-prone part of making a locking gate.

Quick to fit. The Click-It fixing system mounts the lock without tapping threads in the profile, the latch bolt changes over for left or right-hand gates, and it adjusts by up to 10mm without removing the lock.

Built for outdoors. The mechanism, hook, front plate and latch bolt are stainless steel, and a cover plate keeps dirt out of the mechanism.

Where it is used

New fabricated steel pedestrian gates at homes, schools, offices, industrial units, sports grounds and public spaces, made by fabricators, gate makers and installers working in 60mm box section.

Specifications

Related products

Choosing the right option

Choose this kit when you are making a new gate from 60mm box section and want the lock, handles, cylinder, keep and pre-cut stile and post in one order. If you already have the box section, the 60mm insert lock on its own is the cheaper option, and a pre-cut keep box is available separately. Choose this black version to match a black gate, or the silver version for a lighter finish. For gates in 50mm box section, choose the 50mm kit.

Fitting and care

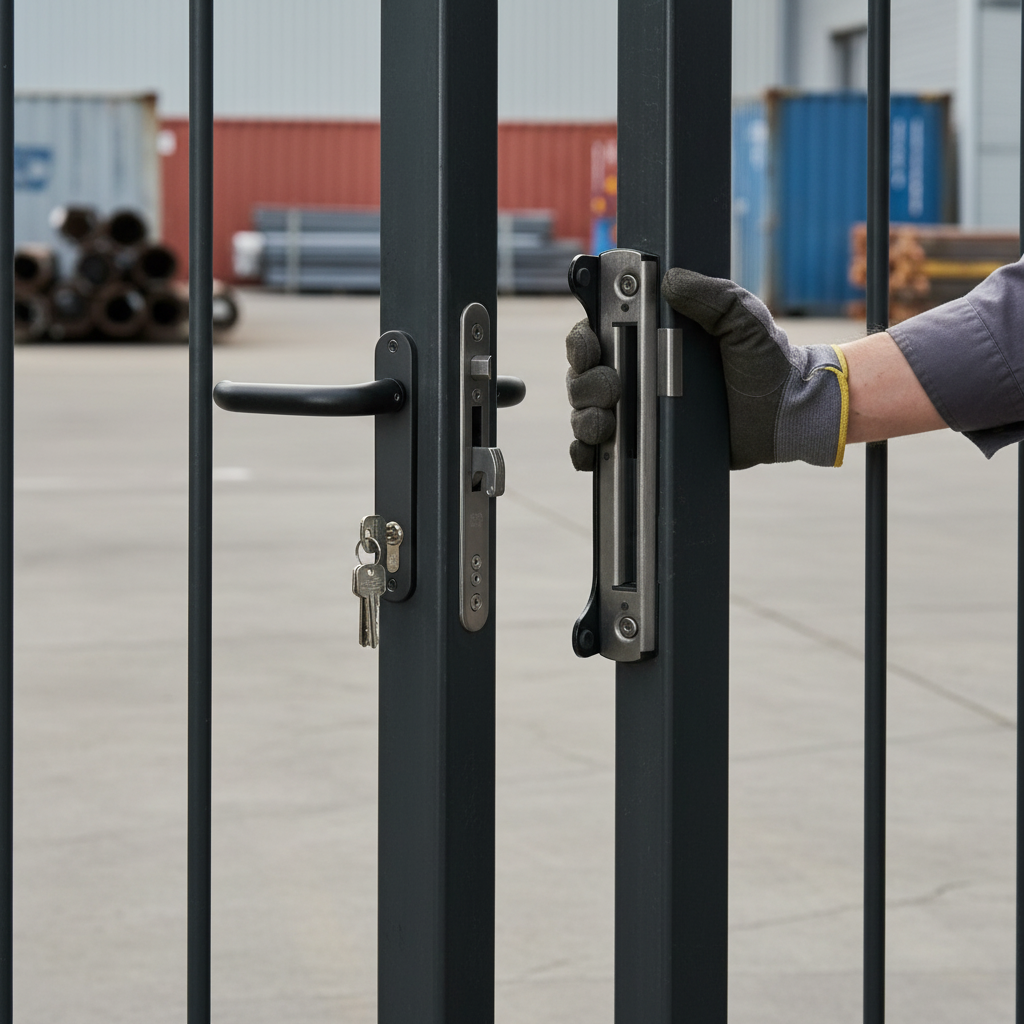

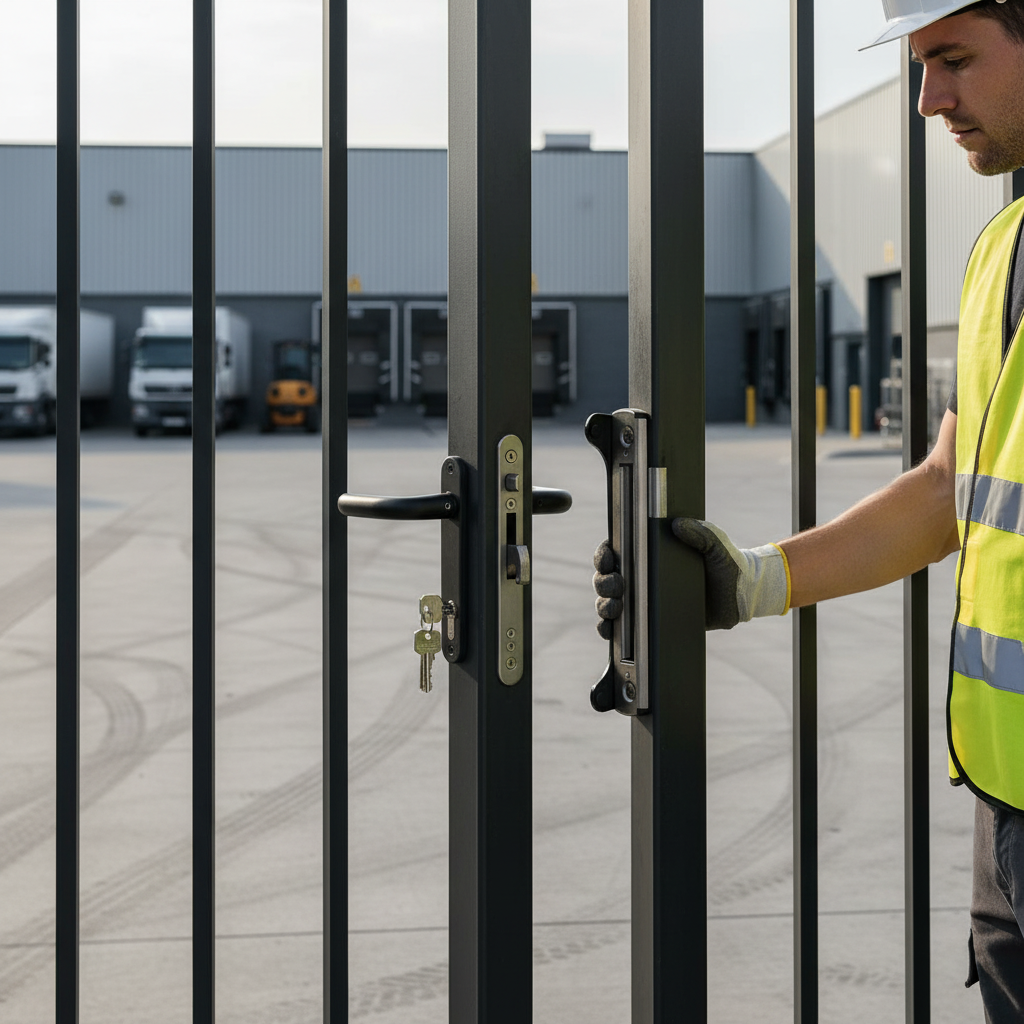

Use one pre-cut length as the closing stile of the gate and the other as the post, cutting them to height with the lock and keep slots at the same level. Weld up and finish the gate, then fit the lock with the Click-It fixings, add the cylinder, handles and cover plates, and fit the keep into the post. Set the latch bolt with its adjustment so it latches cleanly. Keep the lock clean and put a little graphite in the cylinder once a year.

Frequently asked questions

Ordering and delivery

Order online with Express UK Delivery. The two 2000mm lengths travel as a bulky item. For trade quantities or help planning a gate, call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
