Inside Corner Weld-On Glass Clamp, 90° Mild Steel Strap with Two 40mm Discs, 8-12mm Glass


Price:
Sale price£14.90
Inc. Vat

Express UK Delivery (2 Working Days)

In stock, ready to ship

Trusted by Industry Professionals

Description

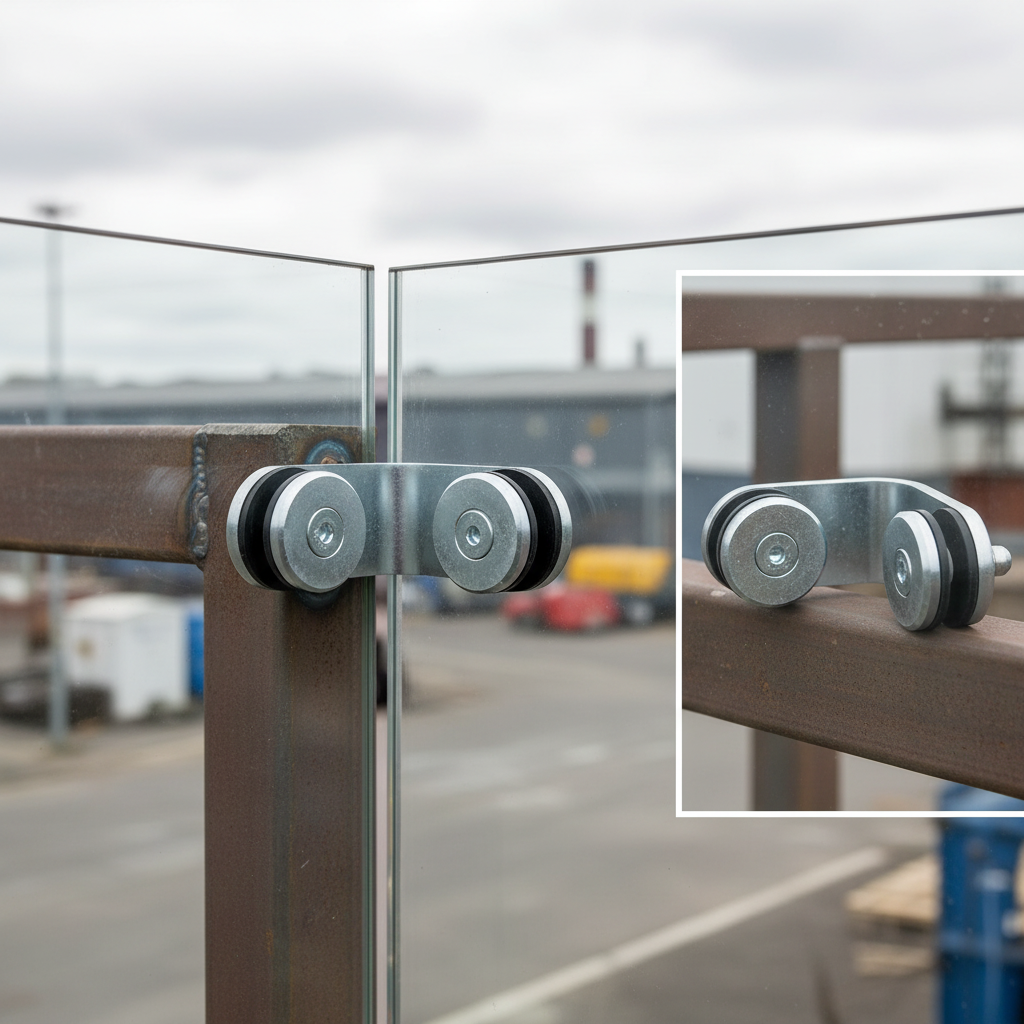

This inside corner weld-on glass clamp holds two glass panels at a 90° corner from one steel corner post, with a neat round disc on each panel and no clamp body round the glass. It is a mild steel strap, 40mm wide and 6mm thick from an 80 x 40 x 6mm blank, bent to a right angle, with a light zinc coating and a 40mm disc at the end of each leg. You weld the bend to the corner post; the glass sits inside the angle of the L, so the discs face into the corner, and each disc bolts through a hole in its panel, with rubber washers and a nylon sleeve so the glass never touches steel. It suits 8mm to 12mm toughened glass. The price shown is for one corner clamp, with a minimum order of 5.

Drawing of the inside corner weld-on glass clamp from above, with a 40mm disc through each glass panel

Why use a corner weld-on clamp

Both panels from one post. At a corner, one bent clamp takes both glass edges, so the two panels are held at exactly the same height and the corner stays square, with one weld instead of two separate tabs.

Made for fabricated steelwork. On a welded balcony, staircase or mezzanine edge, welding the clamp to the corner post is quicker and stronger than drilling and tapping the post for bolt-on clamps, and the clamp becomes part of the frame.

A clean look on the glass. From the walking side you see only a small round disc on each panel. There is no clamp body wrapped round the glass edge.

Glass never touches steel. A rubber washer sits each side of the glass and a nylon sleeve lines the hole, so the bolt and strap never bear on the toughened glass.

Where it is used

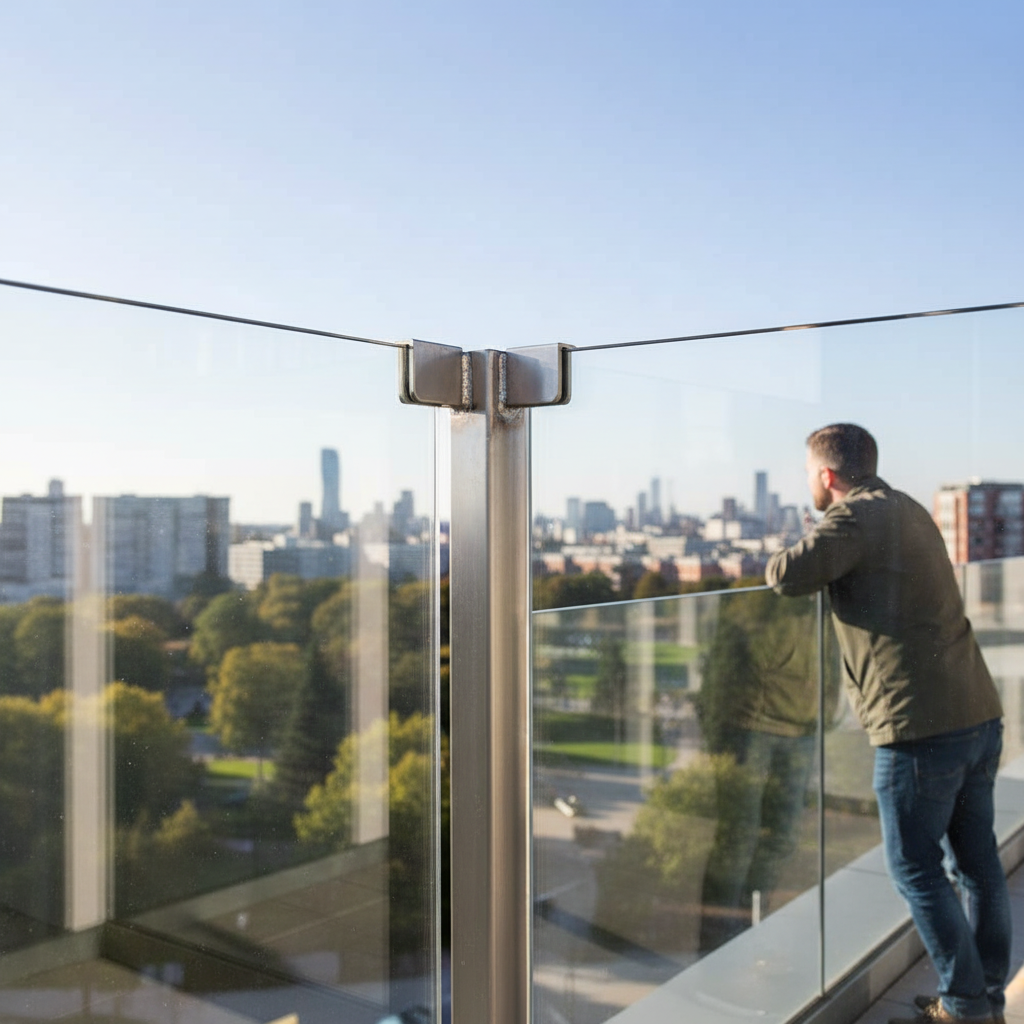

Use it at an inside (re-entrant) corner, where the glass turns in towards the walking side, such as a balcony or mezzanine that steps back. It suits glass infill in fabricated steel balustrades, mezzanine edges and stair landings, and glass screens on steel frames in shops, offices and workshops.

Specifications

What you get One corner clamp: bent strap, two 40mm discs, two countersunk bolts, two dome nuts, four rubber washers and two nylon sleeves. Minimum order 5
Strap 80 x 40 x 6mm blank, bent to 90°; leg lengths not published
Glass position Inside the corner
Discs Two, 40mm diameter
Glass thickness 8mm to 12mm toughened, drilled
Material Mild steel with a light zinc coating
Fixing Weld the bend to the corner post
Glass hole size Not published for this line; check the sleeve before ordering glass
Weight About 0.41 kg

Which weld-on clamp to choose

You need Clamp
Inside corner This clamp
Outside corner Outside corner weld-on clamp
Two panels in a straight line at one post Double weld-on clamp 160 x 40mm
End post, one panel Short single weld-on clamp 80 x 40mm
End post, longer reach Long single weld-on clamp 120 x 40mm

How many do you need?

Use two corner clamps at each corner post, one set about 150 to 200mm down from the top of the glass and one the same distance up from the bottom. An L-shaped balustrade with one corner takes two; a U shape with two corners takes four. Follow your glass supplier's or designer's layout for tall panels.

Choosing the right option

Stand on the walking side and look at the corner. If the glass turns towards you, it is an inside corner; if it turns away and wraps round, it is an outside corner. The glass must be drilled before it is toughened, so set out the clamp positions on the frame first and send the hole centres to your glass supplier. The clamp is mild steel for painted or powder-coated frames.

Fitting and care

Tack the clamps to the corner post at the marked heights and check both legs against a square and a straight edge so each panel will sit flat, then weld fully. Clean, prime and paint or powder coat the frame. Fit the nylon sleeves in the glass holes, place a rubber washer each side, offer the glass to the legs, then fit each disc and bolt and tighten the dome nuts evenly without overtightening. Use toughened safety glass only. Wipe with warm soapy water.

Frequently asked questions

Is the price for one corner clamp?

Yes. The price is for one bent strap with both discs, bolts, nuts, washers and sleeves. The minimum order is 5.

Does the glass need holes?

Yes. Each panel needs a hole at every clamp, drilled before the glass is toughened.

Can it go outside?

Yes, once the frame and clamps are painted or powder coated after welding. The light zinc coating alone is for protection in store, not outdoor exposure.

Is it for inside or outside corners?

This is the inside corner clamp. For outside corners use the outside corner weld-on clamp; the bend faces the other way.

Ordering and delivery

Order 5 or more online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. For a full balustrade, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will check quantities and delivery before you order.
