Description
A heavier, forged-look weld-on bracket for steel handrails. The arm is 14mm square bar rather than round, on a thick 80mm round wall plate with three countersunk holes, so it suits period ironwork and heavy external rails. Weld the plain square stem to the underside of a tube or flat bar rail, fix the plate to the wall, and paint or galvanise the lot. The price shown is for one bracket, with a minimum order of 10.
Why choose this bracket
Square bar look. 14mm square bar matches traditional railings, pickets and forged ironwork better than a round arm.
Heavy wall plate. An 80mm round plate, 7mm thick, spreads the load on brick and stone.
Welds to any steel rail. The plain stem welds to round tube, square tube or flat bar handrails.
Finish to match. Plain mild steel takes paint, powder coat or hot-dip galvanising with the rest of the rail.
Where it is used

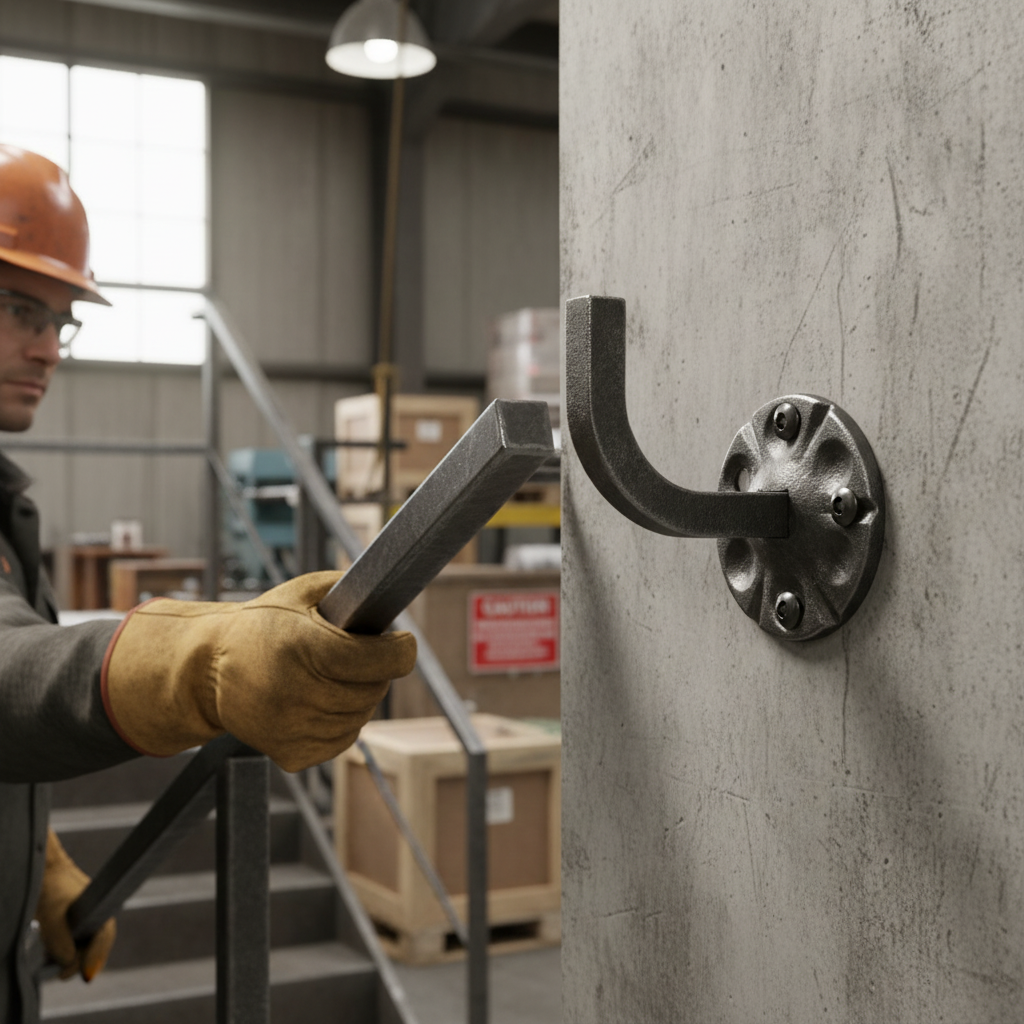

Front steps of period houses, churches and listed buildings; heavy external handrails at warehouses, yards and car parks; any fabricated steel wall rail where a square bar bracket matches the railings.
Specifications
| What you get | One handrail bracket, minimum order 10 |
|---|---|
| Type | Weld-on, plain square stem |
| Projection | 75mm from the wall |
| Stem height | 70mm above the arm |
| Arm | 14mm square bar |
| Wall plate | 80mm round, 7mm thick |
| Fixing holes | 3 x 10mm, countersunk to 18mm |
| Material | Mild steel, unpainted |
| Weight | 0.38kg |
| Fixings | Not included: choose wall fixings to suit your wall |
How many do you need?
Space brackets about 1m apart or closer, with one within about 300mm of each end of the rail.
| Handrail length | Brackets |
|---|---|
| Up to 2m | 3 |
| 4m | 5 |
| 6m | 7 |
| 10m | 11 |
Fitting
Fix the end brackets to the wall first, string a line between them and fix the rest to it with three screws each. Rest the handrail on the stems, check it is straight and at the right height, then tack and weld each stem to the underside of the rail. Grind the welds smooth, then paint, powder coat or galvanise the finished rail and brackets.
Care
Raw steel will rust if left bare, so paint, powder coat or galvanise the brackets before or after fitting, and touch up chips outdoors. Check the wall fixings once a year on busy stairs.
Other brackets in the range
- Weld-on bracket, 85mm projection
- Weld-on bracket, 75mm projection
- Flat saddle bracket, round plate, 85mm
- Bracket with push fit cover plate, 85mm
Frequently asked questions
Is the price for one bracket?
Yes, one bracket. The minimum order is 10.
Is it galvanised?
No, it is plain mild steel so it welds cleanly. Galvanise or paint the finished rail and brackets together.
Are screws included?
No. Choose fixings to suit brick, block, concrete or stud walls.
Ordering and delivery
Order 10 or more online with Express UK Delivery. See the full range in Handrails & Brackets, or call 01744 520 110 or email sales@industrialsuppliesco.co.uk for larger quantities.
