Description

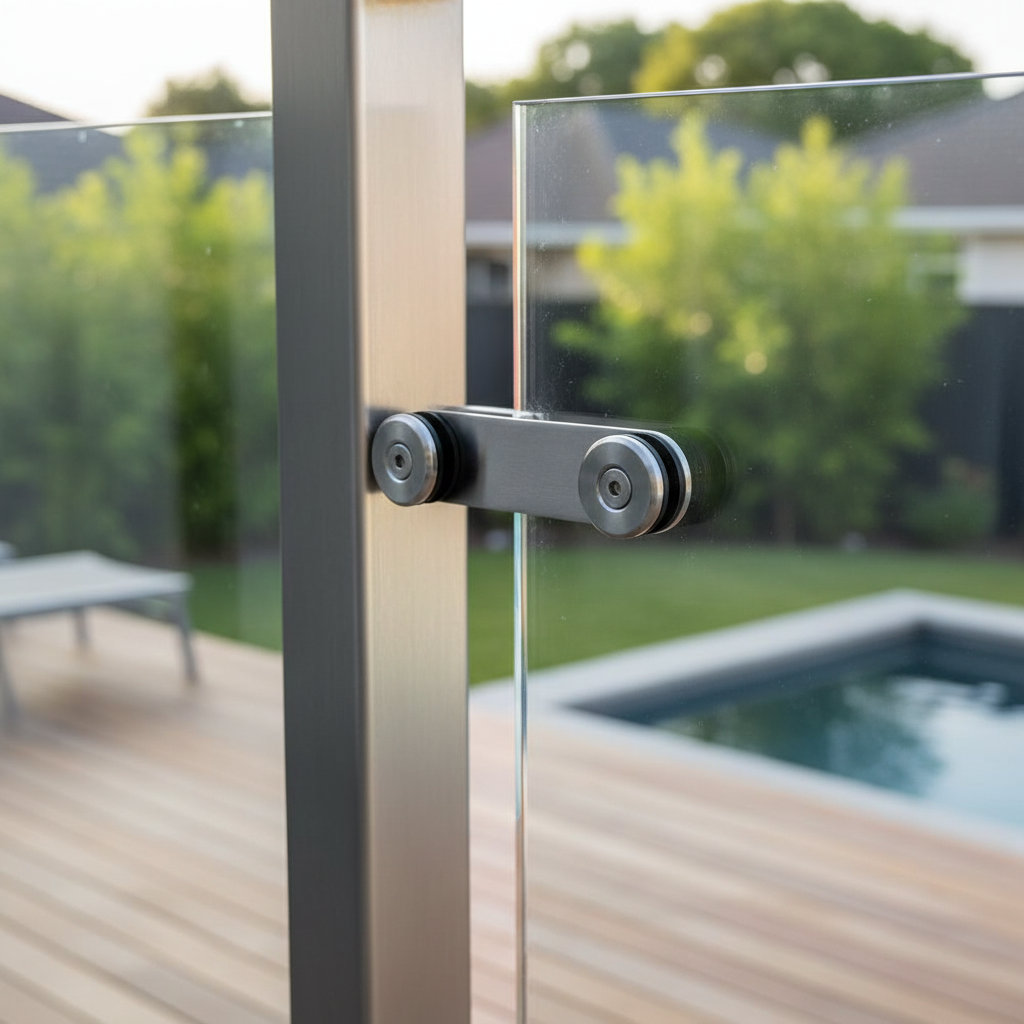

This double weld-on glass clamp holds the edges of two glass panels at one steel post, so a fabricated stainless balustrade needs half the fixings at every intermediate post. It is a grade 316 stainless steel strap, 160 x 40 x 6mm, satin finished, with a 40mm stainless disc at each end. You weld the middle of the strap across the post; each end sits behind the edge of one panel, and its disc bolts through a hole in the glass, with rubber washers and a nylon sleeve so the glass never touches steel. It suits 8mm to 12mm toughened glass. The price shown is for one double clamp.

Why use a weld-on clamp
One part for two panels. At every post between two panels, one double clamp does the job of two singles: one weld, one part to set out, and both panel edges held at exactly the same height.
Made for fabricated stainless steelwork. On a welded stainless staircase, balcony or pool surround, welding a strap to each post is quicker and stronger than drilling and tapping posts for bolt-on clamps, and the strap becomes part of the frame.
A clean look on the glass. From the front you see only a 40mm round disc on each panel either side of the post. There is no clamp body wrapped round the glass edge, so the panels look lighter.
Glass never touches steel. A rubber washer sits each side of the glass and a nylon sleeve lines the hole, so the bolt and tab never bear on the toughened glass.
Grade 316, no coating needed. 316 stainless resists sea air, pool water and road salt, so the clamps can be left bare outdoors. After welding, clean and pass the weld and blend it back to a satin finish to match the posts.
Where it is used
Glass infill panels in fabricated stainless staircases, balconies and landings; seafront and coastal balustrades; pool surrounds and spa decks; and glass screens on stainless frames in hotels, shops and public buildings.
Specifications
| What you get | One double clamp: weld-on strap, two 40mm discs, two countersunk bolts, two dome nuts, four rubber washers and two nylon sleeves |
|---|---|
| Strap size | 160 x 40 x 6mm, double |
| Discs | Two, 40mm diameter |
| Glass thickness | 8mm to 12mm toughened, drilled |
| Material | Grade 316 stainless steel, satin finish |
| Fixing | Weld the middle of the strap to the post |
| Glass hole size | Not published for this line; check the sleeve before ordering glass |
| Weight | About 0.45 kg |
Which weld-on clamp to choose
| You need | Clamp |
|---|---|
| Two panels meeting at one post | This clamp |
| End post, one panel | 316 short single weld-on clamp 80 x 40mm |
| End post, longer reach to the glass | 316 long single weld-on clamp 120 x 40mm |
| Outside corner | 316 outside corner weld-on clamp |
| Inside corner | 316 inside corner weld-on clamp |
| Spare or replacement disc | 316 round disc 40mm |
| Painted or powder-coated frames | Mild steel double weld-on clamp |
How many do you need?
Use two double clamps on each post between two panels, one set about 150 to 200mm down from the top of the glass and one the same distance up from the bottom. A run of three panels between four posts takes four doubles on the two middle posts and four singles on the two end posts. Follow your glass supplier's or designer's layout for tall or wide panels.
Choosing the right option
Use doubles on every post where two panels meet in a straight line, and singles at end posts. For corners, use the outside or inside corner clamp. The glass must be drilled before it is toughened, so set out the clamp positions on the frame first and send the hole centres to your glass supplier. Use this 316 version on stainless steelwork, outdoors and near the sea or a pool; use the mild steel version for painted or powder-coated frames. Weld stainless to stainless only.
Fitting and care

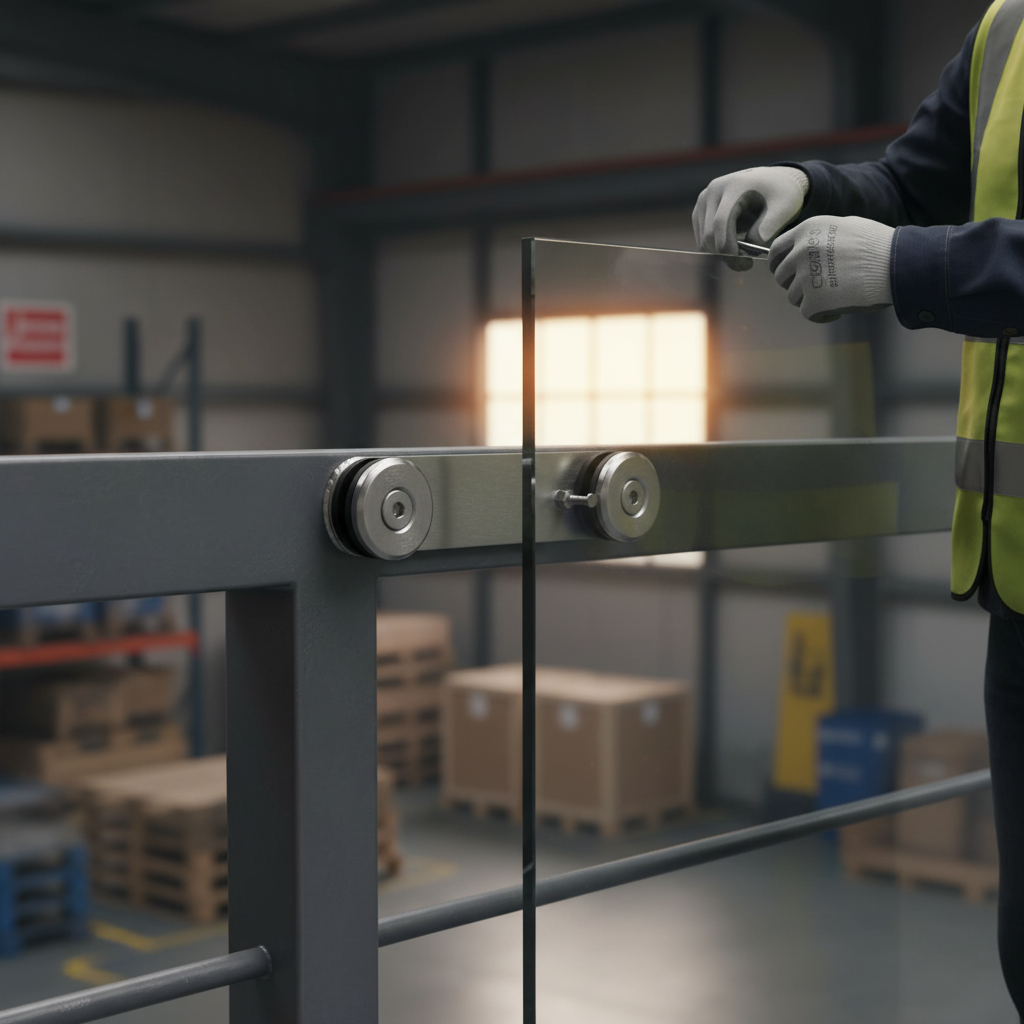

Tack the straps to the posts at the marked heights, check them against a straight edge so every panel will sit flat, then weld fully. Clean and pass the welds and blend them back to a satin finish. Fit the nylon sleeve in the glass hole, place a rubber washer each side, offer the glass to the tabs, then fit the disc and bolt and tighten the dome nut evenly without overtightening. Use toughened safety glass only. Wipe with warm soapy water, and rinse with fresh water near the sea or a pool.
Frequently asked questions
Is the price for one double clamp?
Yes. The price is for one strap with both discs, bolts, nuts, washers and sleeves.
Does the glass need a hole?
Yes. The bolt passes through the glass, so each panel needs a hole at every clamp, drilled before the glass is toughened.
Can it go outside?
Yes. Grade 316 stainless is the right choice outdoors, near the sea and round pools, and needs no coating.
Can I bolt it on instead of welding?
It is made to be welded. For a bolt-on fixing to a post, use one of our glass clamps instead.
Ordering and delivery
Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. For a full balustrade, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will check quantities and delivery before you order.
