Description
Product Overview

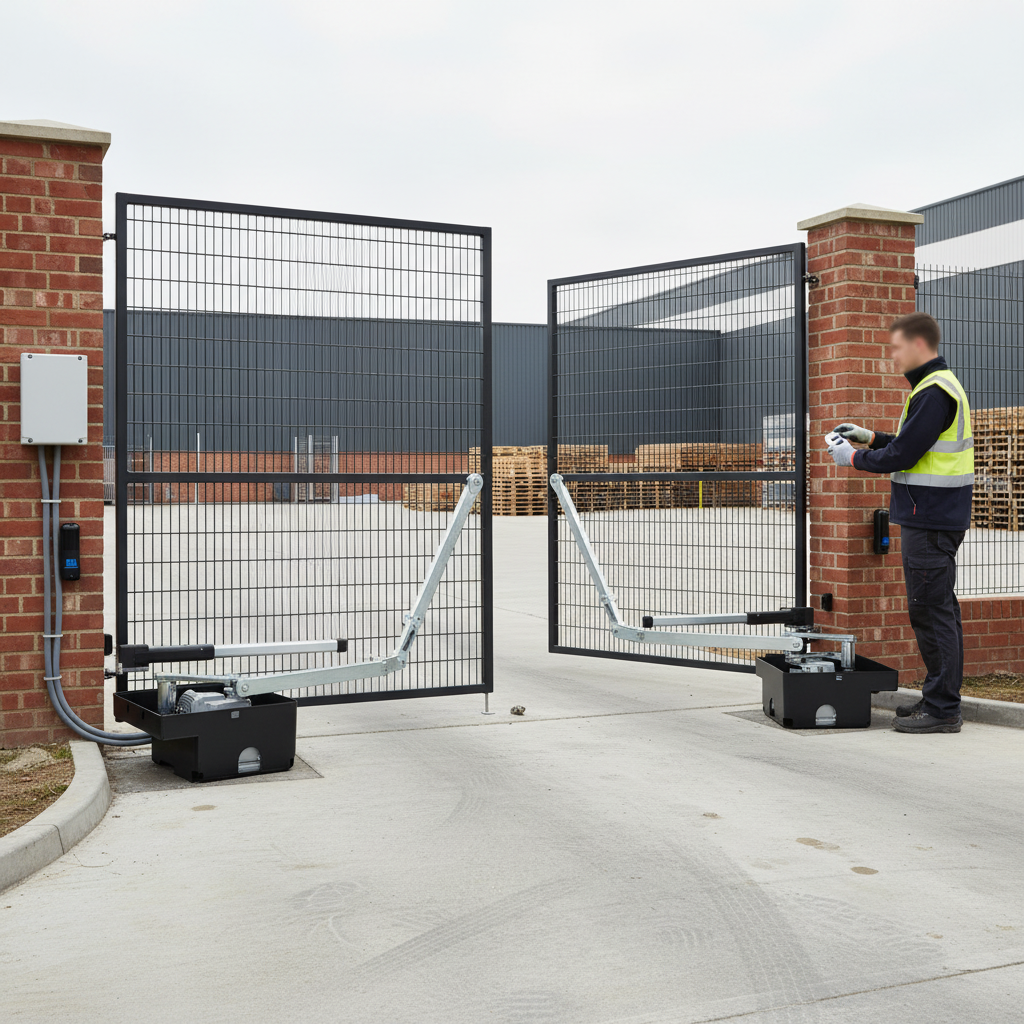

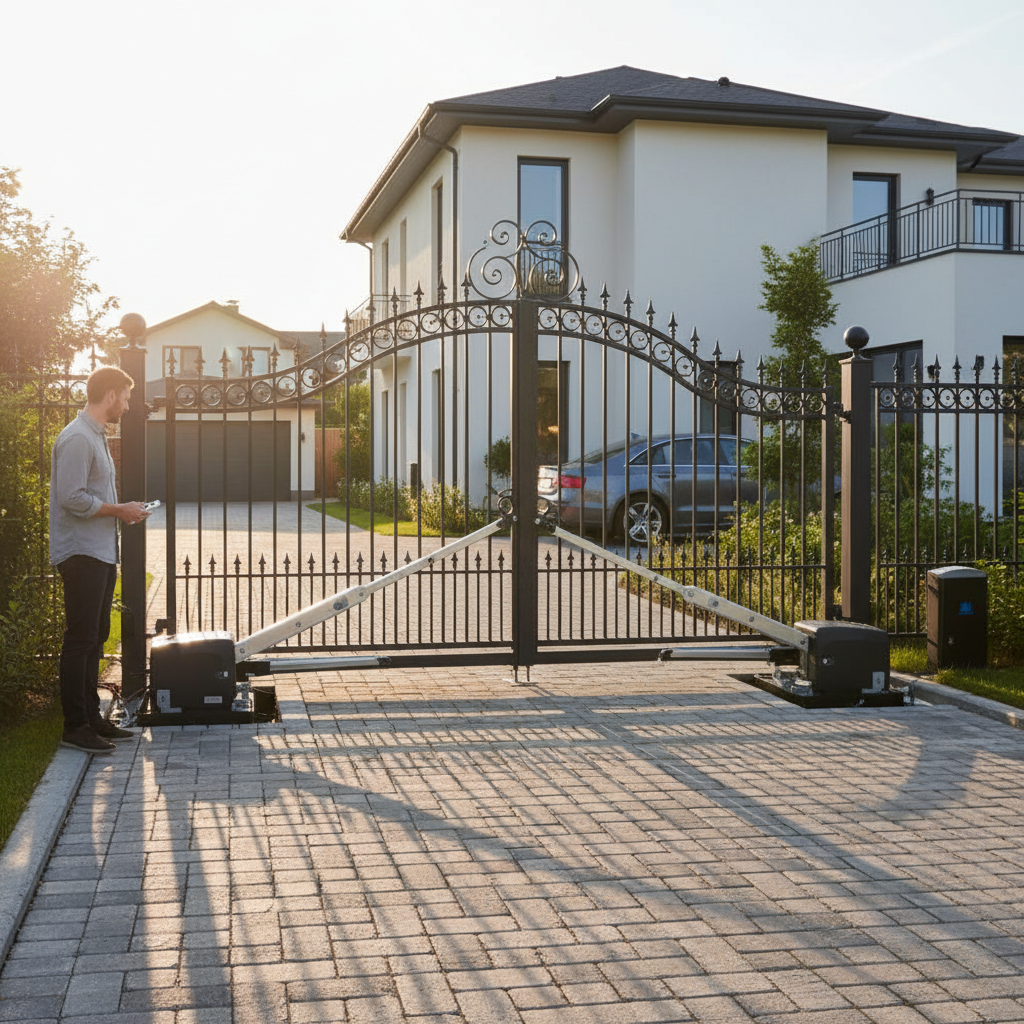

This Premium Underground Electromechanical Operator Kit is designed for both residential and commercial swing gate applications. The powerful 400W irreversible motor ensures that your gate is securely locked against mechanical stops in both open and closed positions. The stop can be conveniently located inside the foundation box casing. This kit includes an emergency manual release system for use in case of power failure, complete with one key for each underground box.
This underground gate system allows for an impressive 180-degree opening, enhancing accessibility and functionality.
Included Components
- 2 x Premium motors
- 2 x Galvanized foundation boxes
- 2 x Remote controls
- 1 x Set of photocells
- 1 x Control board (230/24)N
Technical Specifications
| Specification | Measurement |
|---|---|
| Model | 200 |
| Motor Power Supply | 230V AC |
| Capacity | 400W |
| Duty Cycle | 50% |
| Max Torque | 320Nm |
| Operating Temperature | -20°C to 60°C |
| Opening Time | 90° in 17 seconds |
| Protection Level | IP 67 |
| Weight (with packaging) | 14.5kg |
| Max Wing Length | 3.5m |
| Max Wing Weight | 800kg |
| Foundation Boxes | Galvanized Steel |
| weight | 70.0 kg |
| length | 420.0mm |
| width | 345.0mm |
| depth | 225.0mm |
| gate type | Swing |
| max gate width | 4.0m |
Installation Notes
Ensure ample drainage from the foundation boxes to guarantee motor warranty. Proper installation and maintenance are crucial for optimal operation and longevity of the gate system.
Frequently Asked Questions
-
What is the maximum gate weight supported by this kit?
This kit can support gates weighing up to 800kg. -
What is the operating temperature range for the motors?
The motors can operate in temperatures ranging from -20°C to 60°C. -
Is there a manual release feature?
Yes, the kit includes an emergency manual release system for power failures.
