Description
Product Overview

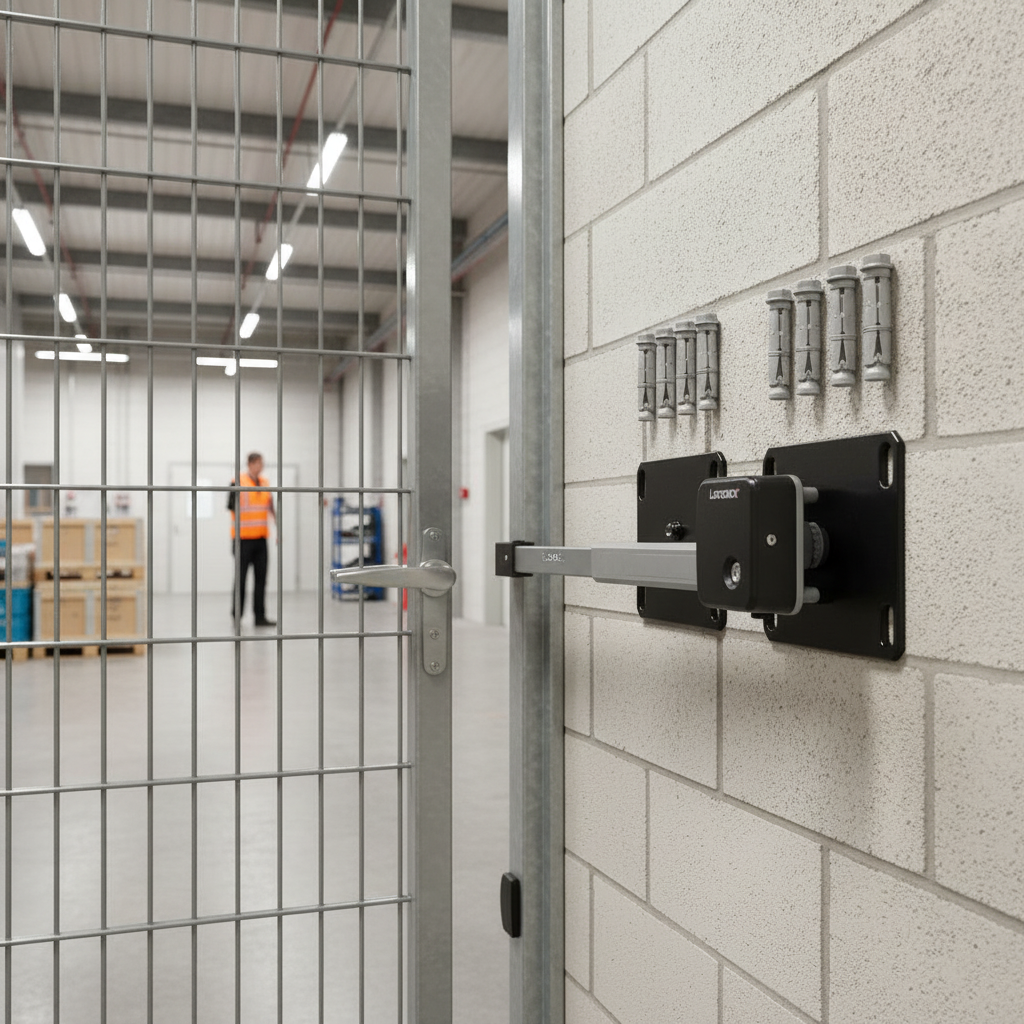

This Premium Wall Mounting Kit is an optional set designed to fix a high-performance gate closer directly onto the wall. This robust set consists of two wall plates made of hot-dip galvanized steel, ensuring durability and resistance to corrosion.
Key Features
- Wall plates constructed from hot-dip galvanized metal with a protective RAL9005 powder coating for enhanced longevity.
- Minimum distance between the gate and the wall: 29 mm.
- Depth adjustment feature allowing a maximum adjustment of 15 mm.
- Height adjustment option providing up to 10 mm of flexibility.
- Minimal opening clearance under the gate: 15 mm.
- Compatibility: Specifically designed only for use with high-performance gate closers.
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Minimum Distance Between Gate and Wall | 29 mm |
| Depth Adjustment | 15 mm |
| Height Adjustment | 10 mm |
| Minimal Opening Under Gate | 15 mm |
| Weight | 1.07 kg |
| Length | 95.0mm |
| Width | 95.0mm |
| Depth | 70.0mm |
Installation Instructions

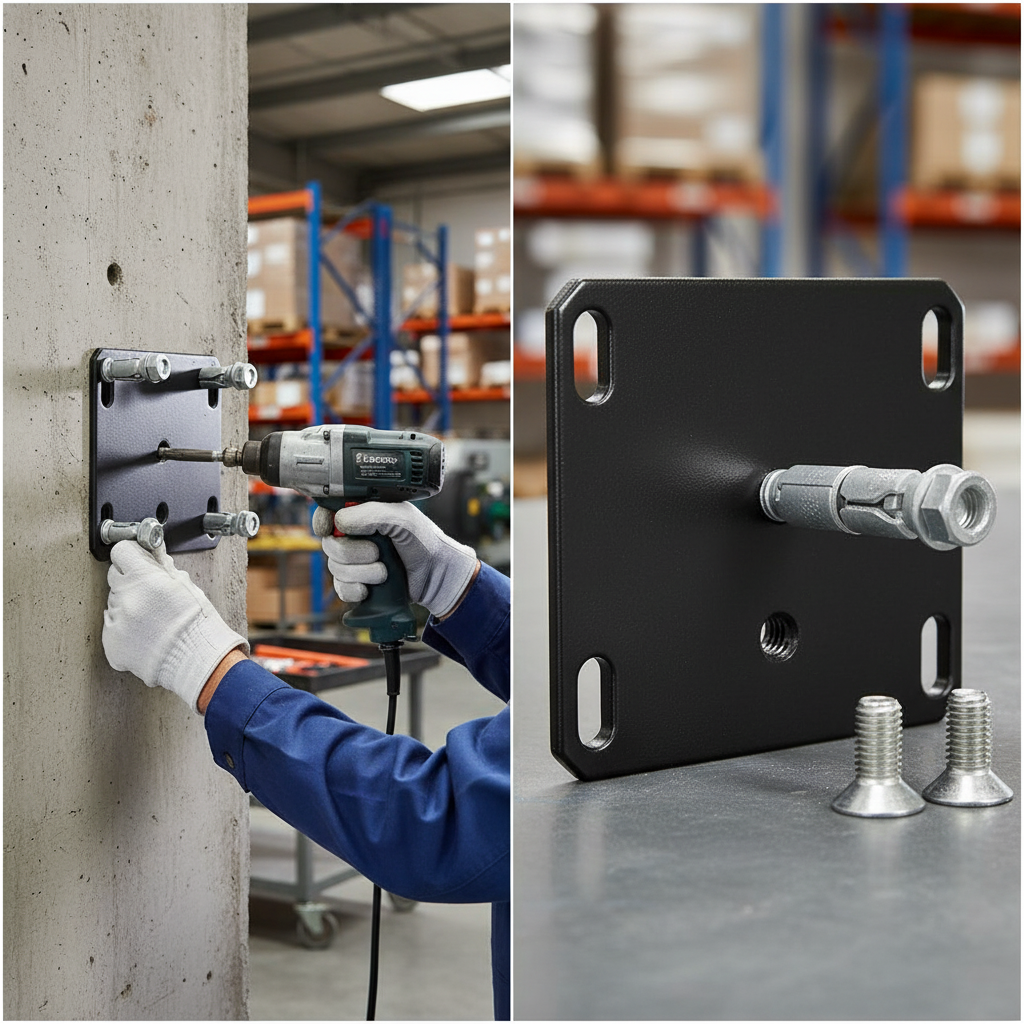

This mounting kit comes with all necessary fixations for a straightforward installation process. Ensure the wall surface is appropriate for the mounting plates to provide a secure fit.
FAQ
-
Q: Is this kit compatible with all gate closers?
A: No, this kit is only compatible with high-performance gate closers. -
Q: What material are the wall plates made from?
A: The wall plates are made from hot-dip galvanized steel with a powder coating for added protection. -
Q: Can I adjust the height and depth after installation?
A: Yes, the kit allows for height and depth adjustments to ensure proper alignment.
