316 Stainless Steel Flush Tee Connector for 48.3 x 2.6mm Handrail Tube


Price:
Sale price£42.90
Inc. Vat

Express UK Delivery (2 Working Days)

In stock, ready to ship

Trusted by Industry Professionals

Description

A 316 stainless flush tee that joins three lengths of 48.3 x 2.6mm tube in a T. Use it where a post meets a continuous top rail, where a mid rail meets a post, or to branch a handrail. Each leg has a 20mm spigot that pushes into the tube, and the body is the same 48.3mm as the tube, so the joint is smooth to the hand with a fine line where each tube meets it. Satin 316 suits outdoor, coastal and pool-side work. The price shown is for one tee.

Dimension drawing of the 316 flush tee for 48.3 x 2.6mm tube: 110mm end to end, 70mm body, 50mm from the run centre to the end of the branch, 20mm spigots 43.1mm across with a 39.1mm bore

What you get

Sold as One tee

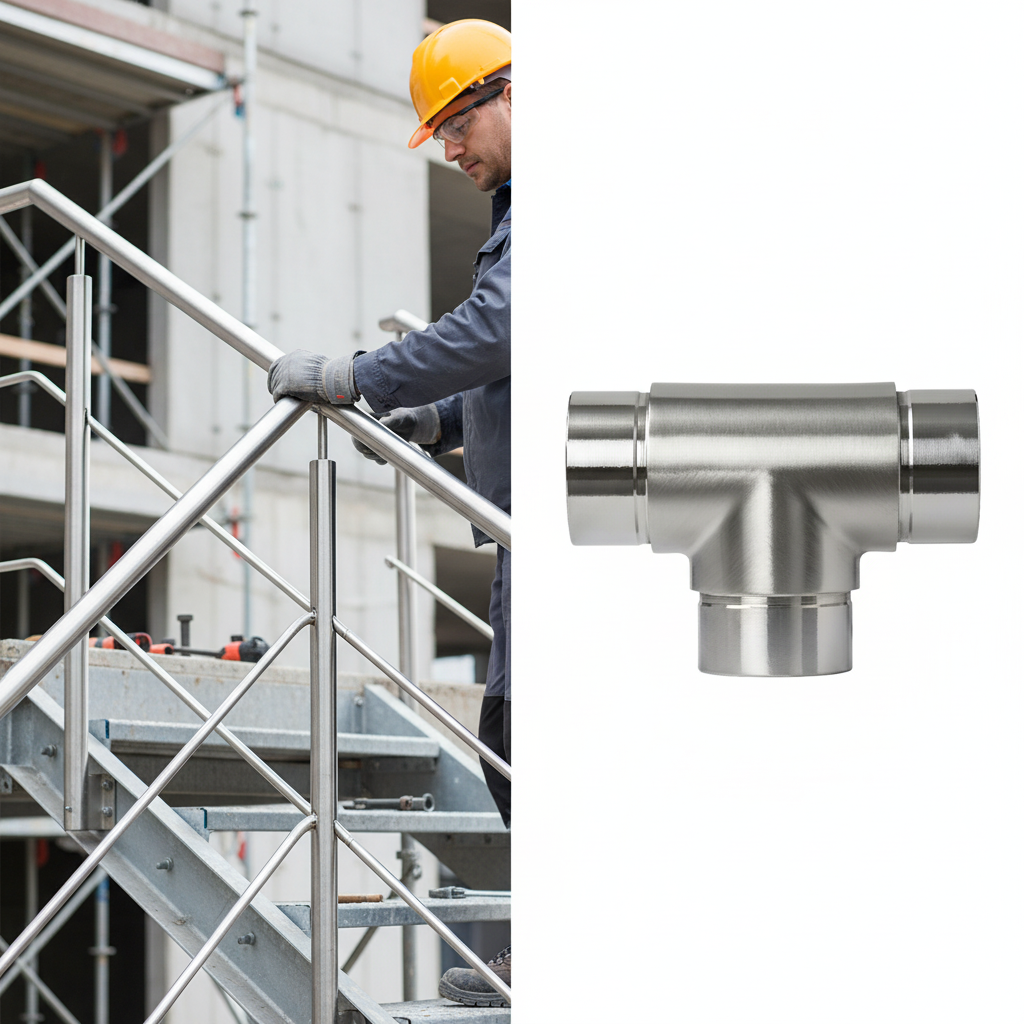

Tee Flush T junction in 316 stainless, satin, with a 20mm push-in spigot on each of its three legs
Not included The tube, weld filler or adhesive

Why choose this tee

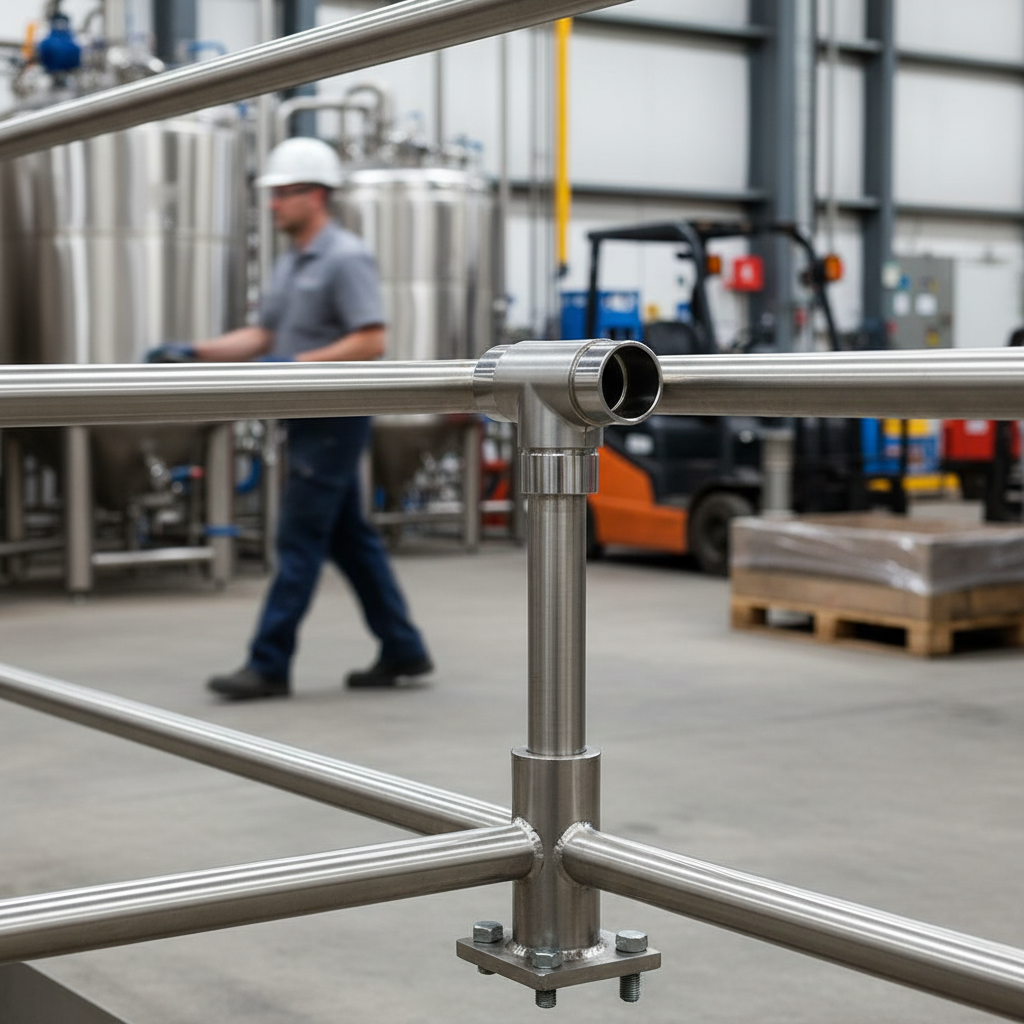

A continuous top rail. The rail runs straight through the tee and each post plugs in from below, so a post-and-rail balustrade has an unbroken handrail with no caps or saddles to catch a hand.

Quick and square. The spigots locate inside the tube and hold the joint at a true 90 degrees while you weld or bond it, with no notching or fish-mouthing of tube ends.

316 grade for outdoors. 316 stainless contains molybdenum, which gives it much better resistance to salt and chlorine than 304, so it is the right choice by the sea, around pools and on exposed entrances.

Specifications

Material 316 stainless steel, satin finish
Fits 48.3mm tube with a 2.6mm wall (43.1mm bore)
End to end 110mm across the run
Body 70mm long, 48.3mm, flush with the tube
Run centre to end of branch 50mm
Spigots Three, 20mm long, 43.1mm across, 39.1mm bore
Weight About 0.39 kg

Is this the right tee?

Your situation Choose
48.3 x 2.6mm tube, outdoors This 316 tee
48.3 x 2.0mm tube, outdoors 316 tee for 48.3 x 2.0mm tube
48.3 x 2.0mm tube, indoors 304 tee for 48.3 x 2.0mm tube
42.4 x 2.0mm tube, outdoors 316 tee for 42.4mm tube

Fitting

Check the tube first: this tee suits 48.3mm tube with a 2.6mm wall, which has a 43.1mm bore. Thinner 2.0mm wall tube has a larger 44.3mm bore, so the spigots would be loose in it. Cut the tubes square and deburr the inside, push each tube onto its spigot until it meets the shoulder, then weld, or bond with a structural adhesive suitable for stainless steel. Dress any weld back along the grain to match the satin finish.

Care

Outdoors, rinse the rail and fittings with fresh water and wipe along the grain every few weeks, more often near the sea or a pool, so salt and chlorine do not leave brown tea staining. Use warm soapy water; avoid chlorine bleach, wire wool and scouring pads.

Frequently asked questions

Is the price for one tee?

Yes, one tee.

Will it fit 48.3 x 2.0mm tube?

Not well. The 43.1mm spigots are made for the bore of 2.6mm wall tube; 2.0mm wall tube has a 44.3mm bore. Use the tee for 48.3 x 2.0mm tube.

Do I have to weld it?

No. Many installers bond flush fittings with a structural adhesive made for stainless steel. Welding gives the strongest joint.

How many do I need?

One at the top of each intermediate post on a continuous rail; use elbows at corners and the ends of the run.

Ordering and delivery

Order online in any quantity, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a full post-and-rail balustrade with tube, tees, elbows and end caps, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm the parts and delivery before you order.
