Description
This is a set of short stainless steel bolt tips for surface-mounted gate locks on flat bar and slim box section gates from 10mm to 30mm: a bevelled tip for the day bolt and a round tip for the deadbolt, with the screws to fix them. The tips sit on the ends of the lock's bolts where they reach across to the keep, giving the lock a neat, rust-free finish and setting the bolt length to suit the gate profile. The day-bolt tip can be adjusted continuously left or right. The set is sometimes called a top cover. The price shown is for one set of two tips with screws.
Why use this set
Right length for the gate. Bolt tips come in three lengths to suit the width of the gate profile, so the bolts reach the keep fully without sticking out too far.
Rust-free. Both tips are stainless steel, so they do not rust or stain on exposed gates and coastal sites.
Smooth latching. The bevelled day-bolt tip rides over the keep as the gate closes and snaps in, so the gate latches every time.
Easy replacement. If a tip is damaged or a lock is moved to a gate of a different size, the tips can be changed without replacing the whole lock.
Where it is used
On surface-mounted industrial and ornamental gate locks fitted to flat bar and slim box section gates from 10mm to 30mm, at homes, schools, parks, offices and industrial sites.
Specifications
| What you get | One bevelled day-bolt tip, one round deadbolt tip and fixing screws |
|---|---|
| Gate profile | 10-30mm, flat and square profiles |
| Suits locks | Surface-mounted industrial and ornamental gate locks in our range |
| Adjustment | Day bolt continuously adjustable left or right |
| Material | Stainless steel |
| Weight | About 0.03 kg |
Locks this set suits
| Lock | Where |
|---|---|
| Industrial gate lock for flat bar 10-30mm, black | Industrial gate lock for flat bar 10-30mm, black |
| Ornamental gate lock for flat bar 10-30mm | Ornamental gate lock for flat bar 10-30mm |
Other sizes
| Gate profile | Where |
|---|---|
| Gates 30-50mm | Bolt tip set 30-50mm |
| Gates 40-60mm | Bolt tip set 40-60mm |
Choosing the right option
Measure the gate stile the lock is fitted to: this set is for 10-30mm profiles. For narrower or wider gates, choose the matching set from the table above. The tips suit our surface-mounted industrial and ornamental locks; insert locks fitted inside the stile do not use them. If you are not sure which set you need, send us a photo of the lock and gate and we will check.
Fitting and care

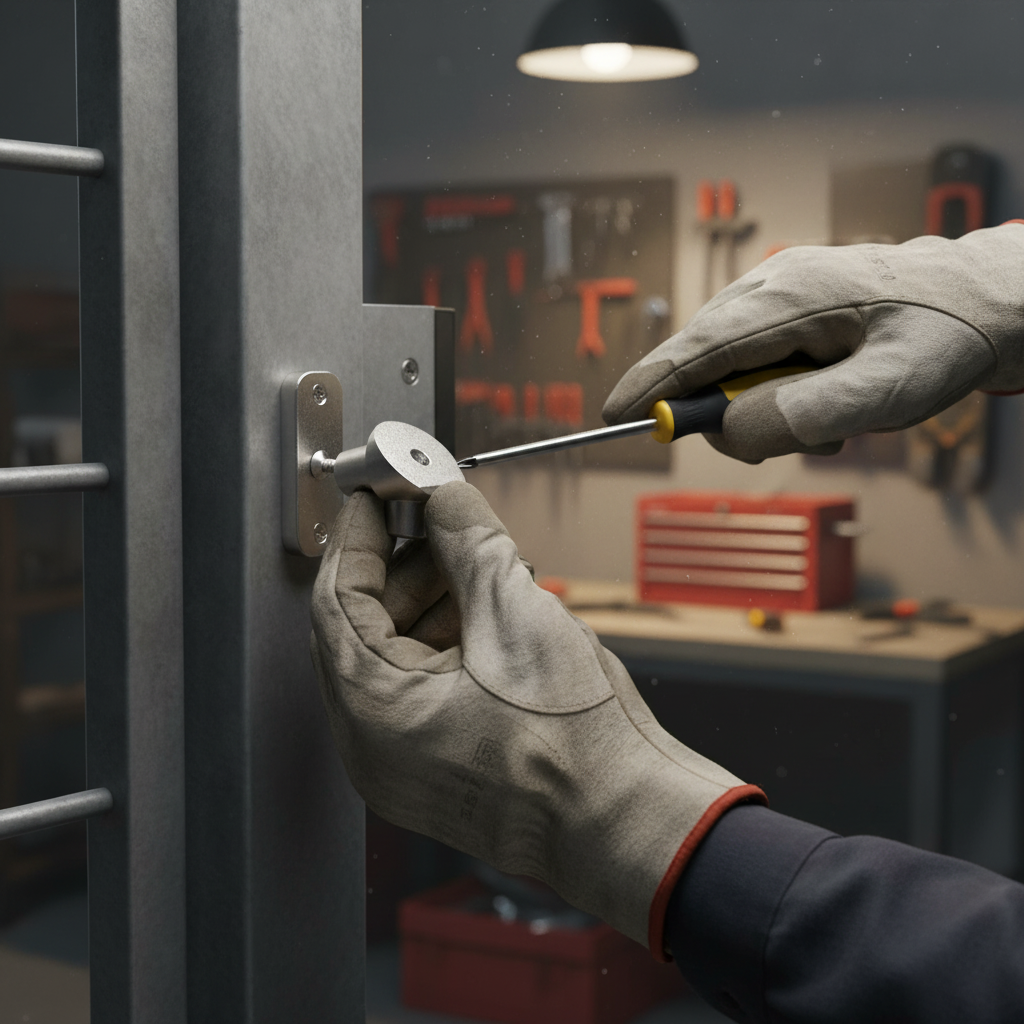

Open the gate, undo the screws holding the old tips and fit the new day-bolt and deadbolt tips with the screws supplied. Set the day-bolt tip so it meets the keep squarely, then close the gate to check it latches and the deadbolt throws fully. Wipe the tips clean now and then.
Frequently asked questions
What is in the set?
One bevelled day-bolt tip, one round deadbolt tip and the screws to fit them.
Do they fit insert locks?
No. They are made for surface-mounted gate locks.
Which size do I need?
Match the set to the width of the gate profile: 10-30mm, 30-50mm or 40-60mm.
Ordering and delivery
Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. For trade quantities, call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
