Description
Where a level handrail runs straight on up a stair or ramp. This galvanised key clamp tee sits on top of a post: the post goes into the bottom socket, the level rail into one side and the sloping rail into the other, in a straight line in plan, with the sloping socket set to rise at 30 to 45 degrees. It suits 42.4mm (32NB) tube and locks with hex socket grub screws, so the change of slope is made in one neat fitting with no bending or welding. The price shown is for one.
Why choose it
Level to sloping in one fitting. No bent tube and no separate elbow and tee.
Straight run. The rail carries straight on up the stair, it does not turn a corner.
Galvanised. Malleable iron, hot-dip galvanised to match galvanised tube outdoors.
Adjust on site. Suits any stair or ramp pitch from 30 to 45 degrees.
Where it is used

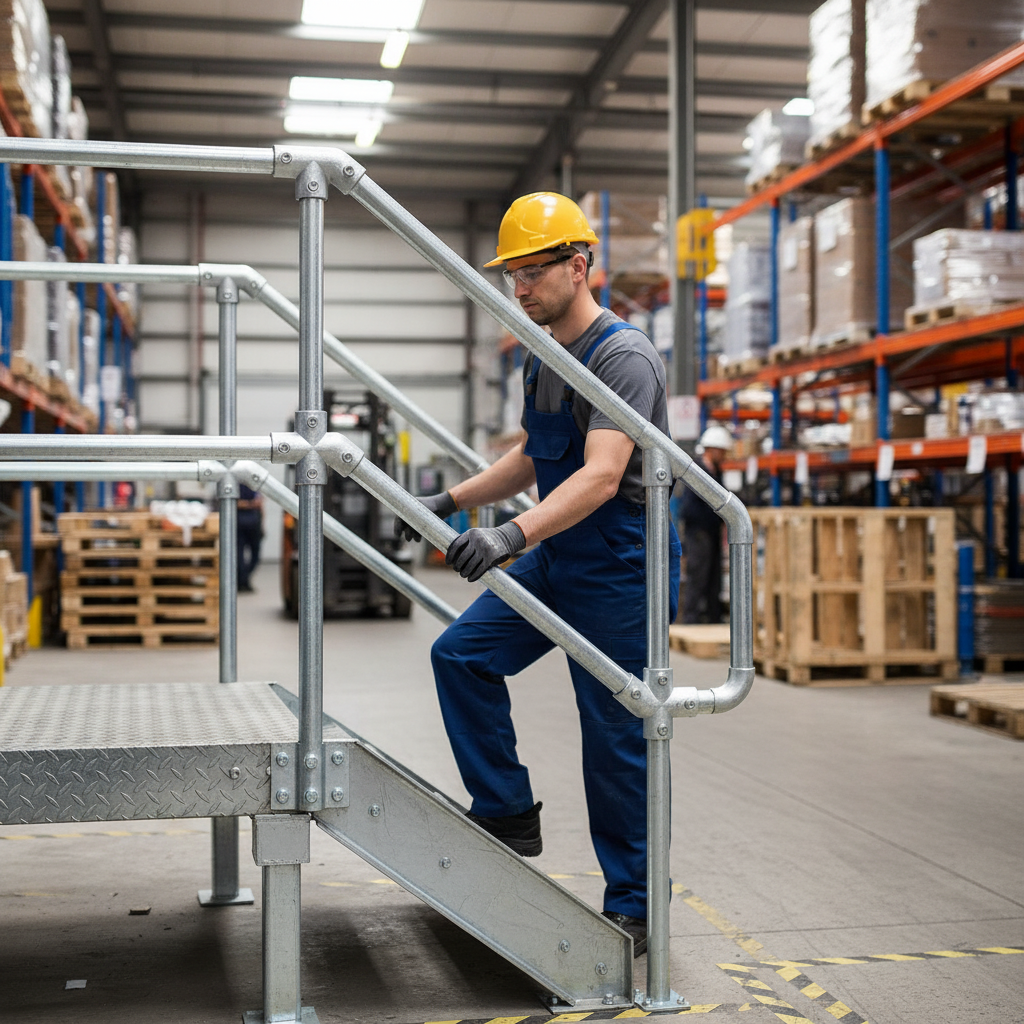

The foot of external stairs and steep ramps at schools, offices, public buildings and car parks; stairs to loading docks, mezzanines and plant platforms; steps in parks and public spaces.
Specifications
| What you get | One sloping up tee |
|---|---|
| Suits tube | 42.4mm outside diameter (32NB, 1 1/4 inch nominal bore) |
| Use | Top rail on a post, level rail to rising rail in a straight line |
| Stair pitch | 30 to 45 degrees |
| Dimensions (see drawing) | A 60mm, B 56mm, C 145mm, D 120mm |
| Material | Malleable cast iron |
| Finish | Hot-dip galvanised |
| Locking | Hex socket grub screws, supplied fitted |
| Weight | 0.8kg |
Up or down?
Stand on the level part of the rail and look along it. If the rail then climbs, you need the sloping up tee; if it drops, the sloping down tee. This is the sloping up version.
Building the handrail
- Sloping down tee, 42.4mm
- Sloping up tee, 48.3mm
- Top sloping side outlet elbow, for a corner at the head of a stair
See the whole range in Handrails & Brackets.
Fitting
Set the post plumb and slide the tee onto it. Push the level rail fully into its socket, then set the sloping rail to the stair pitch, check the rail heights above the nosings and landing, and tighten all the grub screws firmly with a hex key.
Care
Check the grub screws once a year on busy stairs. Treat any cut tube ends or scuffs to the galvanising with a zinc-rich paint.
Frequently asked questions
Is the price for one fitting?
Yes, one fitting.
Will it fit 42.4mm scaffold tube?
Yes. It takes any 42.4mm outside diameter steel tube, galvanised or painted.
Does it turn a corner?
No. The level and sloping rails run in a straight line. For a corner, use a sloping side outlet elbow.
Are tools needed?
Just a hex key to tighten the grub screws.
Ordering and delivery
Order online with Express UK Delivery. For a full stair handrail, send us a sketch with the stair and landing lengths: call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will list every tube and fitting you need.
