Magnet Lock for Sliding Gates, 250kg Holding Force, 12/24V DC, IP68, Silver

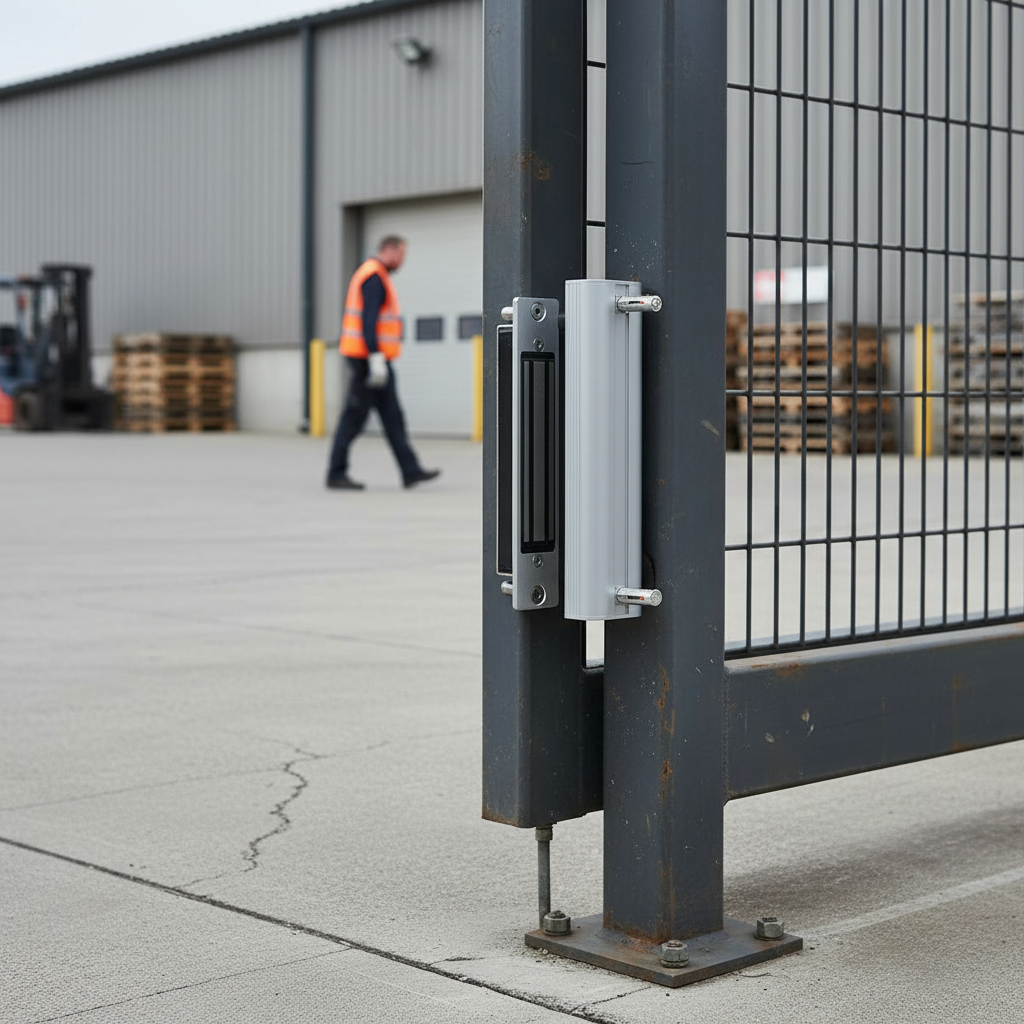

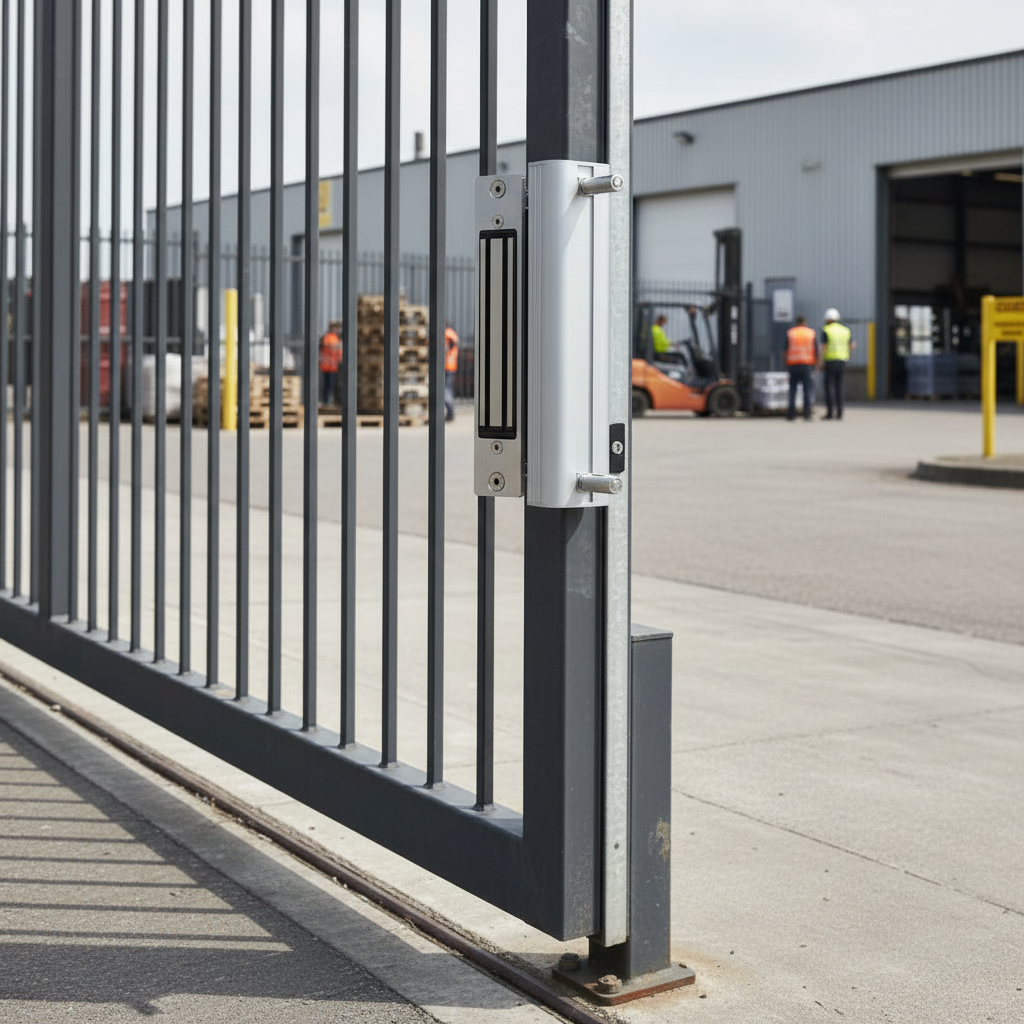

This is an electromagnetic lock for sliding gates: a weatherproof magnet unit fixed to the receiving post and an armature housing fixed to the end of the gate, which hold the closed gate shut with a force of 250kg whenever power is on. It is built for outdoor gates, rated IP68 against water and dust and salt spray tested for 500 hours, and it runs on 12V or 24V DC, so it can be released by a keypad, intercom, access reader or exit button. Rubber bumpers stop the gate rattling, and the armature plate is flexibly mounted so the lock still closes if the gate is slightly out of line. The price shown is for one complete lock in powder coated silver.

Why use this lock

250kg holding force. Every lock is tested to its holding force of 2500N, which holds a pedestrian or light vehicle sliding gate firmly closed until the access system releases it.

No moving parts to wear. A magnet lock has no bolts or latches, so there is nothing to jam, freeze or wear out, and it works however the gate settles.

Made for outdoors. A two-layer protective coating, 500 hours of salt spray testing to ISO 9227 and an IP68 rating keep it working through rain, frost and dust.

Kind to the gate. Rubber bumpers cushion the gate as it closes, protecting the gate and its fittings from harsh handling, and an anti-residual magnetism system lets the gate open cleanly when power is cut.

Where it is used

Pedestrian and light sliding gates at offices, industrial units, car parks, schools, blocks of flats and private driveways, wherever the gate is opened by a keypad, card reader, intercom or exit button.

Specifications

What else you need

Choosing the right option

Choose this lock for a sliding gate that is opened by an access control system. For a hinged gate, choose the swing gate version, which has the same holding force in a housing made for swing gates. Where the gate must stay locked during a power cut, use a mechanical lock or an electric keep instead, as a magnet lock releases when power is lost. Size the power supply to the lock and any keypad or reader on the same circuit.

Fitting and care

With the gate closed, fix the magnet unit upright on the receiving post and the armature housing on the end of the gate so the two faces meet squarely, using the spacer bolts to set the gap. Run the cable to a 12V or 24V DC supply through your access control relay, and check the gate holds and releases cleanly. Keep the magnet face clean and dry-wipe it now and then.

Frequently asked questions

Ordering and delivery

Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. To check the lock suits your gate and access system, call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
