Rubber D Fender Strip - Hollow Buffer for Loading Dock, Wall & Kerb Protection, 106 x 85 x 3000mm


Price:
Sale price£246.90
Inc. Vat

Express UK Delivery (2 Working Days)

In stock, ready to ship

Trusted by Industry Professionals

Description

Loading dock edges, warehouse wall bases and kerb lines take a steady beating from trailers, forklifts and pallet trucks. This rubber D fender strip puts a thick, low-profile buffer along that edge. Each piece is a 3 metre length of black SBR rubber with a wide flat base, a tapered body and a rounded crown, with a hollow core running the full length. It measures 106mm across the base, stands 85mm high and weighs about 27kg. It suits facilities managers, logistics sites and groundworks contractors who want one continuous strip rather than a row of separate buffers.

Why it works

A broad base that holds its line

The base is 106mm wide and 22mm thick, and the lower sides rise straight for the first 22mm before the profile tapers. That wide, square footing sits flat on a dock face, wall or kerb, resists rolling when it is struck from the side, and spreads each impact over a larger area of the surface behind it.

A tapered hollow core that flexes

Above the base, 18mm side walls lean in towards a 24mm crown, leaving a tapered hollow core 39mm high. When a tyre, fork or trailer edge hits the crown, the walls give into that core and then recover. The rubber absorbs the knock rather than passing it all straight into the concrete.

Low and compact

At 85mm high it is lower than most D fenders of the same width, so it fits along kerbs, wash bay walls and dock edges where a taller strip would get in the way of doors, ramps or levellers.

  • Wide flat 106mm base for stable fixing
  • Tapered hollow section that flexes and recovers
  • Rounded crown that turns glancing blows aside
  • 3 metre lengths that butt together for long runs

Where it's used

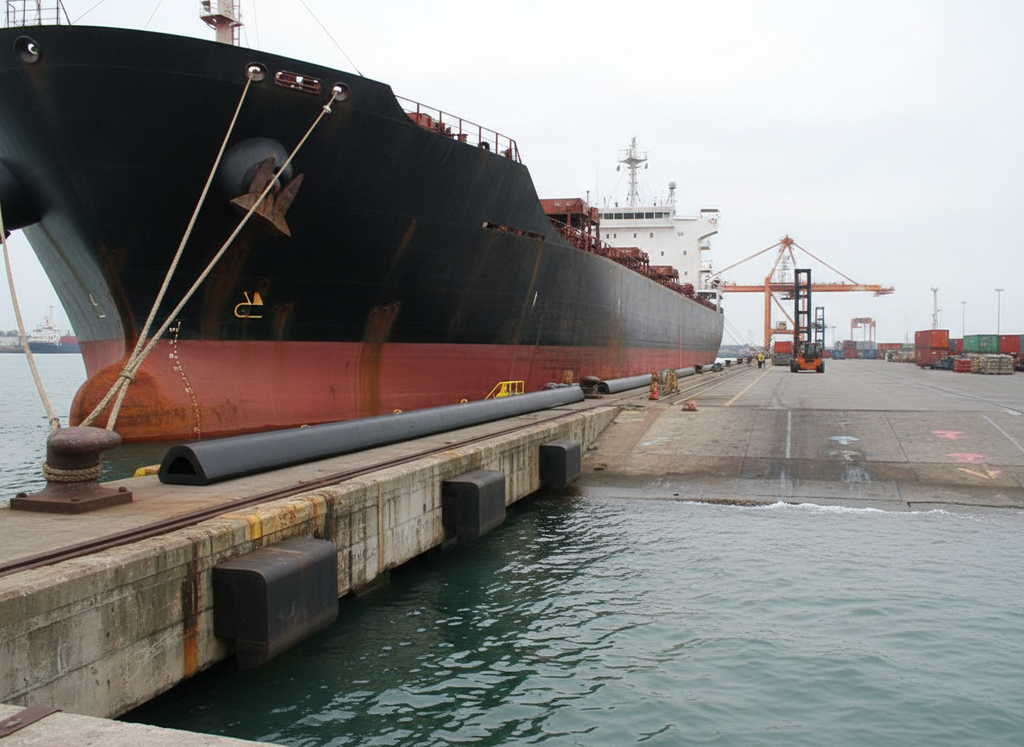

Common installations include the top edge and face of raised loading docks, the base of blockwork walls along forklift routes, vehicle wash bay and workshop walls, yard kerbs and island edges, the ends of racking runs and the corners of goods-in areas. It also works as a rubbing strip on quay walls and pontoon edges where small craft come alongside, and as a continuous buffer between dock bumpers on a long loading bay.

Specifications

Base width 106mm
Height 85mm
Length 3000mm (one length per unit)
Weight Approx. 27kg per length
Material SBR rubber, black
Profile Hollow tapered D-section, flat base, rounded crown
Hollow core height 39mm
Wall thickness 18mm sides, 22mm base, 24mm crown
Hardness and temperature range Not published for this line
Fixings Not included, extrusion only

Dimensions are typical. Extruded rubber varies slightly from batch to batch, so if an exact size matters to your job, call us before ordering and we will measure current stock for you.

Technical drawing of the 106 x 85 x 3000mm rubber D fender strip with cross-section dimensions

Choosing the right option

Measure the edge you want to protect and divide by three to get the number of lengths, rounding up. A single dock door usually needs one length; a 30 metre wall run needs ten. Lengths butt together end to end and trim easily on site at doors and corners.

Pick this lower, wider profile where you want a stable strip close to the ground or along a dock edge. Where a trailer strikes the same point every time, a moulded dock bumper gives deeper protection at that spot, and many sites fit bumpers either side of the door with this strip along the rest of the dock.

Installation, use and care

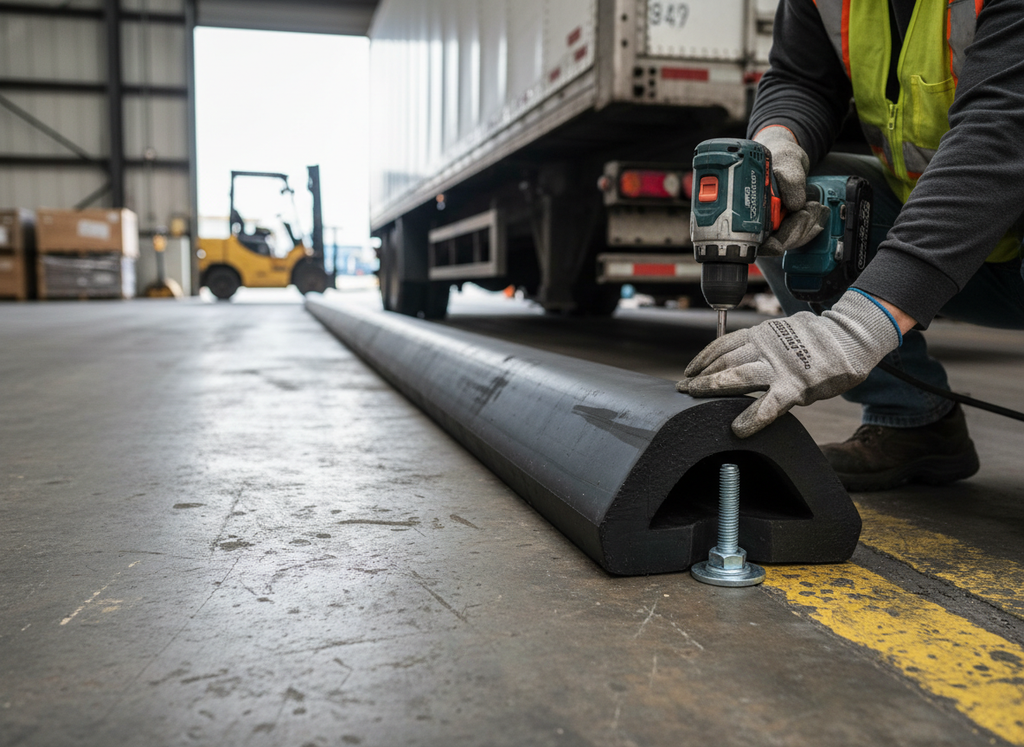

Fix the flat base to sound concrete, masonry or steel with anchor bolts suited to the surface, using large washers or a flat bar inside the core to spread the clamping load. Drill a small access hole through the crown above each fixing so a socket can reach the bolt head. Space fixings evenly, with one close to each end. Cut lengths with a fine-toothed saw or a long sharp blade, wetted to ease the cut. Check fixings from time to time on busy runs and clean the rubber with water and mild detergent.

FAQ

Is the price for one length?
Yes. The price covers one 3 metre length weighing about 27kg. Add as many lengths as your run needs.

Are fixings included?
No, the strip comes on its own. Choose anchors to suit your wall, dock or kerb, because concrete, blockwork and steel each need a different fixing.

Can it be cut?
Yes. A fine-toothed saw or sharp blade cuts it cleanly, so you can trim it to fit doorways, corners and the end of a run.

Will it stop a vehicle?
No. It cushions knocks and scrapes from vehicles, forklifts and pallet trucks, but it is not a vehicle restraint. Use wheel stops, kerbs or barriers where a vehicle must be brought to a halt.

Ordering and delivery

Order online for express UK delivery, with same-day dispatch on orders placed before 2pm, Monday to Friday. Each length weighs around 27kg, so plan for two people when unloading. For larger quantities or a stock size check, call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
