Large Ornamental Gate Lock for 40-60mm Box Section, Black, Twisted Handles

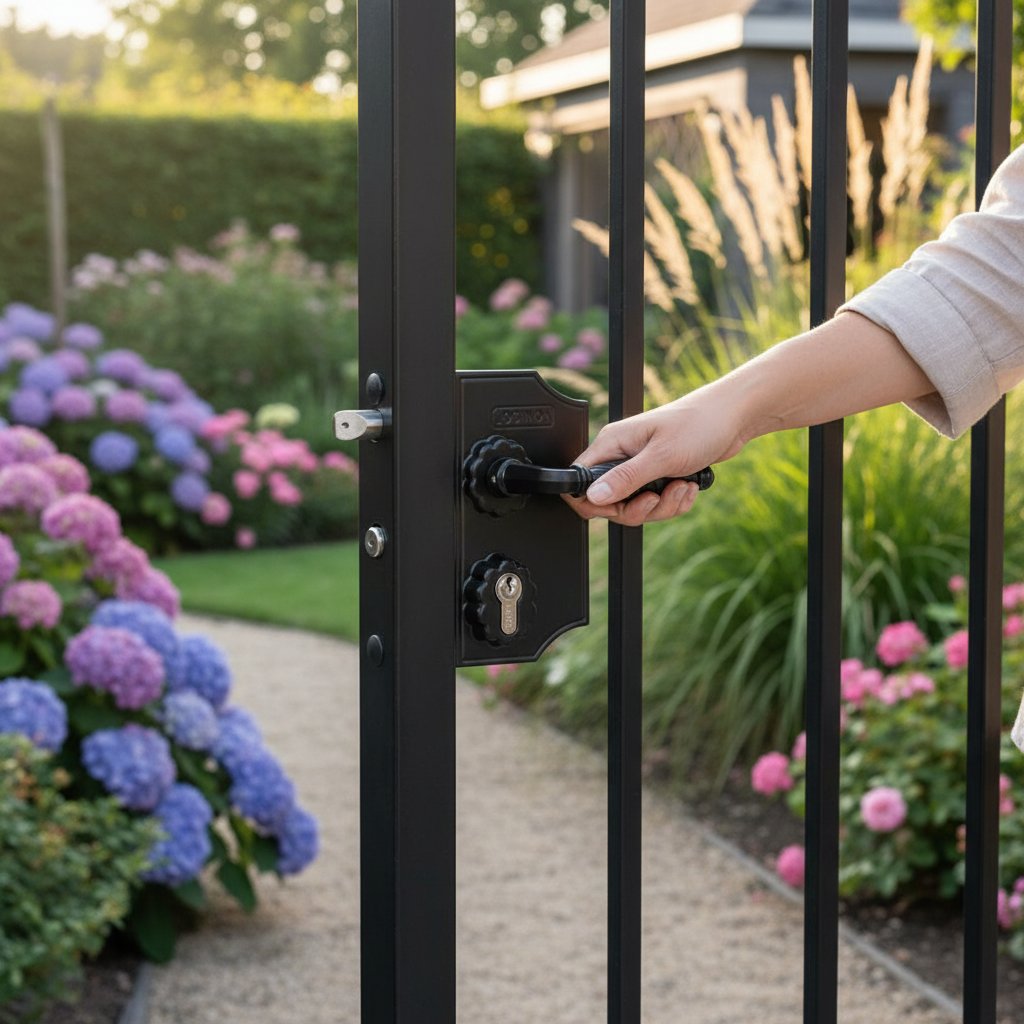

This is a large ornamental gate lock for swing gates made from 40mm, 50mm or 60mm box section: a black lock box with shaped corners, twisted black lever handles on flower-shaped roses, a self-latching day bolt and a solid stainless steel deadbolt thrown 23mm by one turn of the key. It bolts to the face of the gate stile, so the gate does not need to be cut, and it gives wrought iron style gates a traditional look with modern security. The housing is aluminium with a stainless steel mechanism, and the E-coated lock box is salt spray tested for 1000 hours. The price shown is for one lock with handles, cylinder and keys; the keep for the post is sold separately.

Why use this lock

Made for ornamental gates. The shaped lock box, twisted handles and decorative roses suit wrought iron style gates at period houses, estates and new homes, where a plain industrial lock would look out of place.

Latches and locks. The day bolt latches every time the gate closes and can be key-locked, while one turn of the key throws the stainless deadbolt 23mm into the keep.

Adjust without removing it. Both bolts adjust continuously by up to 20mm without taking the lock box off, so the lock can be set to reach the keep exactly. The day bolt changes over for left or right-hand gates.

Built for outdoors. The lock box is E-coated to ISO 9227 and tested to 1000 hours of salt spray, with an aluminium housing and stainless steel mechanism.

Where it is used

Pedestrian gates, side gates and the wicket gates of driveway entrances at houses, estates, churches, parks and blocks of flats, on gate stiles in 40mm to 60mm box section.

Specifications

What else you need

Other ornamental locks

Choosing the right option

Match the lock to the gate stile: this large lock is for 40mm to 60mm box section. For slimmer 30mm to 40mm stiles choose the small ornamental lock, and for flat bar gates choose the flat bar version. Order a keep for the post: the standard keep for most gates, the security keep where the gate is likely to be forced, or an electric keep for remote release.

Fitting and care

Fix the lock to the face of the gate stile through the four holes with the screws supplied, fit the handles and cylinder, and fit the keep on the post so both bolts engage fully. Set the bolts with the 20mm adjustment, and fit a safety cable if the gate swings. Keep the bolts clean and put a little graphite in the cylinder once a year.

Frequently asked questions

Ordering and delivery

Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. To check the lock and keep suit your gate, call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
