Description

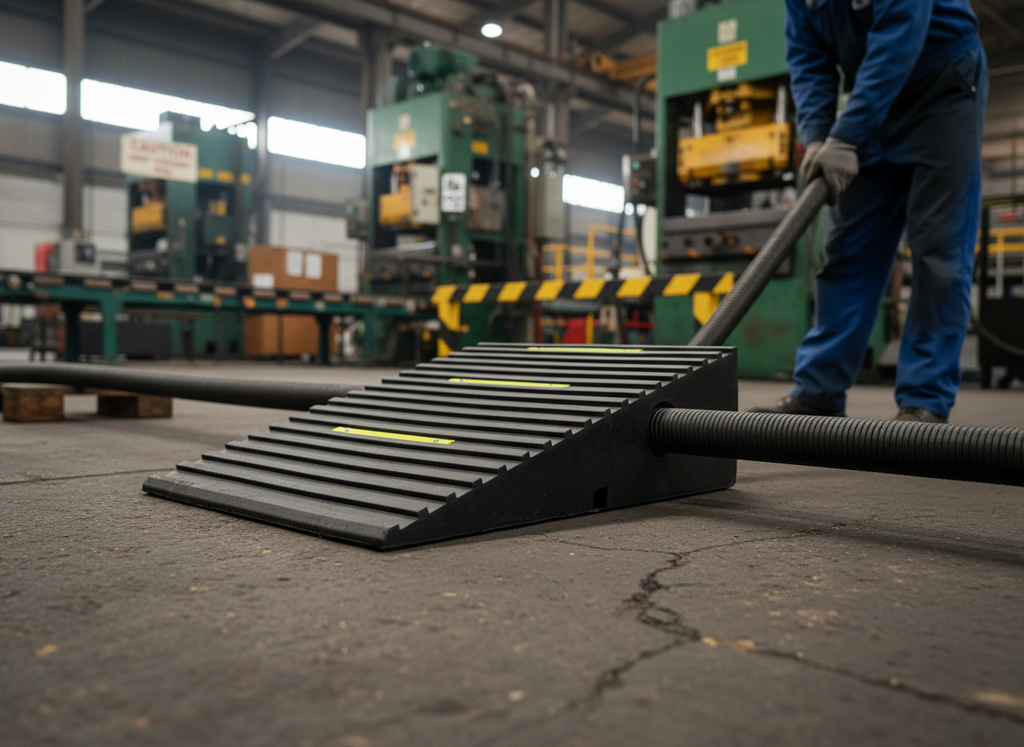

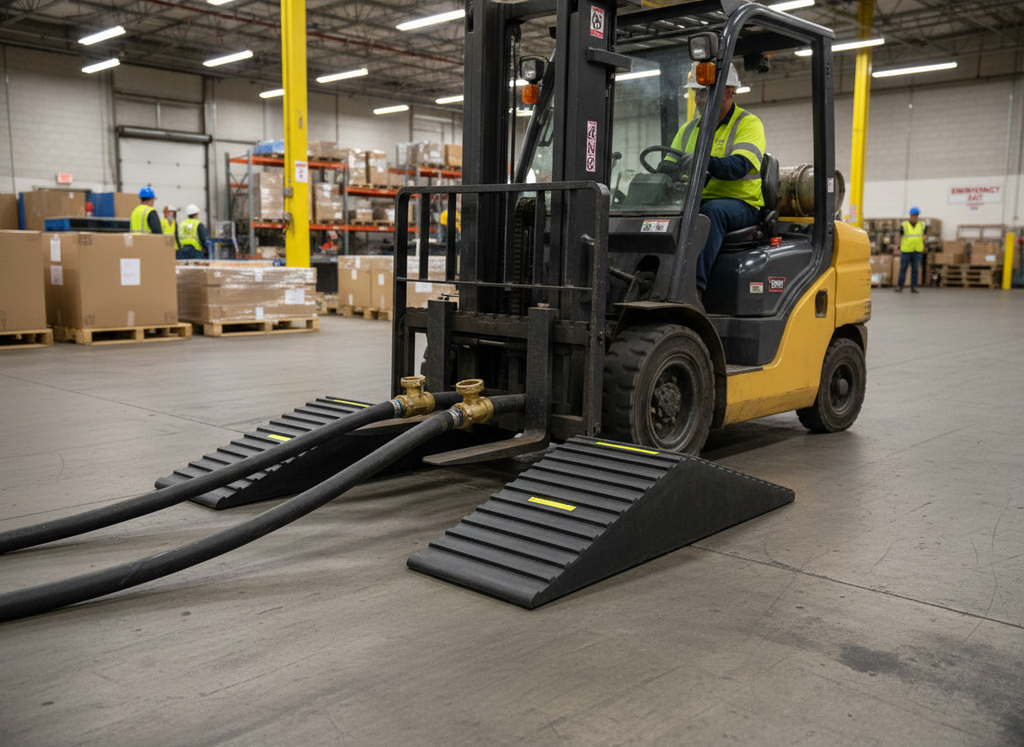

Modular Hose Ramp Wedge
The Premium Hose and Cable Ramp is the rubber wedge part for the modular ramp system. It is designed to accommodate hoses with a diameter range from 140mm up to a maximum diameter of 180mm, depending on the steel bridge part used. This specific part elevates the vehicle 160mm above the ground. In combination with other rubber elements of this system, it is possible to build a ramp with a total length of 3400 mm, allowing most vehicles to cross the ramp without getting "beached". The design allows the front wheel to remain on the rubber blocks while the rear wheel ascends the front edge of the ramp.
Details:
- Dimensions: 540 x 400 x 160 mm (max)
- Weight: 18 kg
- Max Load: 44 Tonnes
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Length | 540 mm |
| Width | 400 mm |
| Height | 160 mm |
| Weight | 18 kg |
| Max Load | 44 Tonnes |
Technical Specifications
- Material: High-Performance Rubber
- Compatible with hoses up to 180mm diameter
- Designed for heavy-duty vehicle access
Frequently Asked Questions (FAQ)
- What is the maximum diameter of hoses that can be accommodated? The ramp can accommodate hoses from 140mm up to 180mm diameter.
- What is the load capacity of the ramp? The ramp supports a maximum load of 44 Tonnes.
- How high does the ramp elevate the vehicle? The ramp holds the vehicle 160mm above the ground.
