Description
A simple, strong post for mezzanine and platform guard rails. This hot-dip galvanised 40mm square box section post has two holes at 550mm centres that the 33.7mm round tube top rail and knee rail pass straight through, each locked with M8 grub screws. It stands 1140mm high when fitted on its base. Fix it on a base fitting, slide the rails through and the guard rail is up with no fittings at the rail joints. The price shown is for one.
Why choose it
Rails pass straight through. No clamps on the rails, so the guard rail looks clean and leaves nothing to catch.
Two-rail layout. Top rail and knee rail at 550mm centres, the usual mezzanine layout.
Galvanised. Hot-dip galvanised inside and out.
Quick to build. Base, post, rails, grub screws.
Where it is used

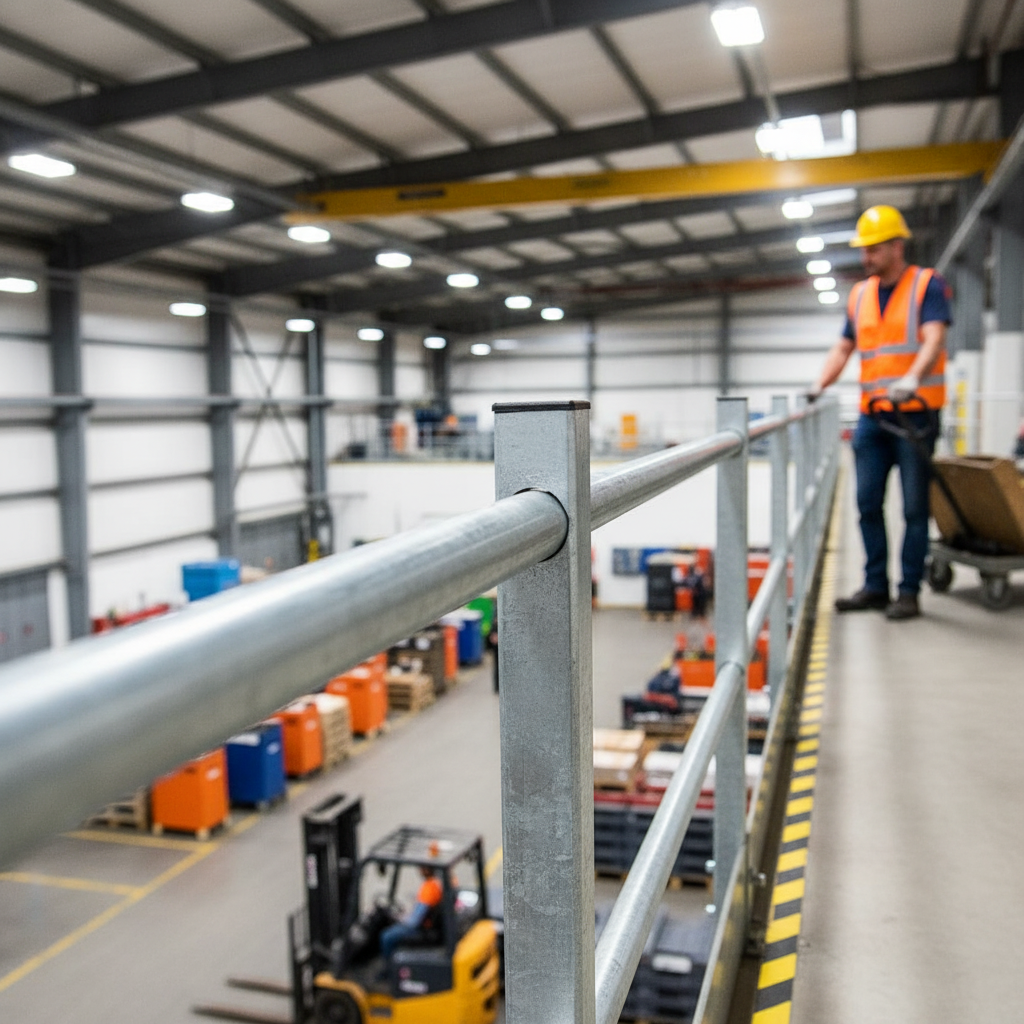

Mezzanine floor edges, raised platforms, plant decks, loading docks and racking walkways in warehouses, factories and distribution centres.
Specifications
| What you get | One galvanised post |
|---|---|
| Section | 40 x 40 x 2.5mm square box section |
| Height | 1140mm finished height |
| Rail holes | 2, for 33.7mm round tube |
| Hole centres | 550mm |
| Locking | M8 grub screws |
| Finish | Hot-dip galvanised |
| Weight | 3.15kg |
| Not included | Base fitting, rails and top cap |
What else you need
A base fitting for each post, the rails, and a top cap. For a 40mm square post use a rectangular base for 40mm box section. Check the post spacing and loads for your floor with your designer.
Related parts
- Rectangular base for 40mm box section
- 48.3mm round post for 33.7mm round rails
- 40mm square post for 25mm square rails
See the whole range in Handrails & Brackets.
Fitting

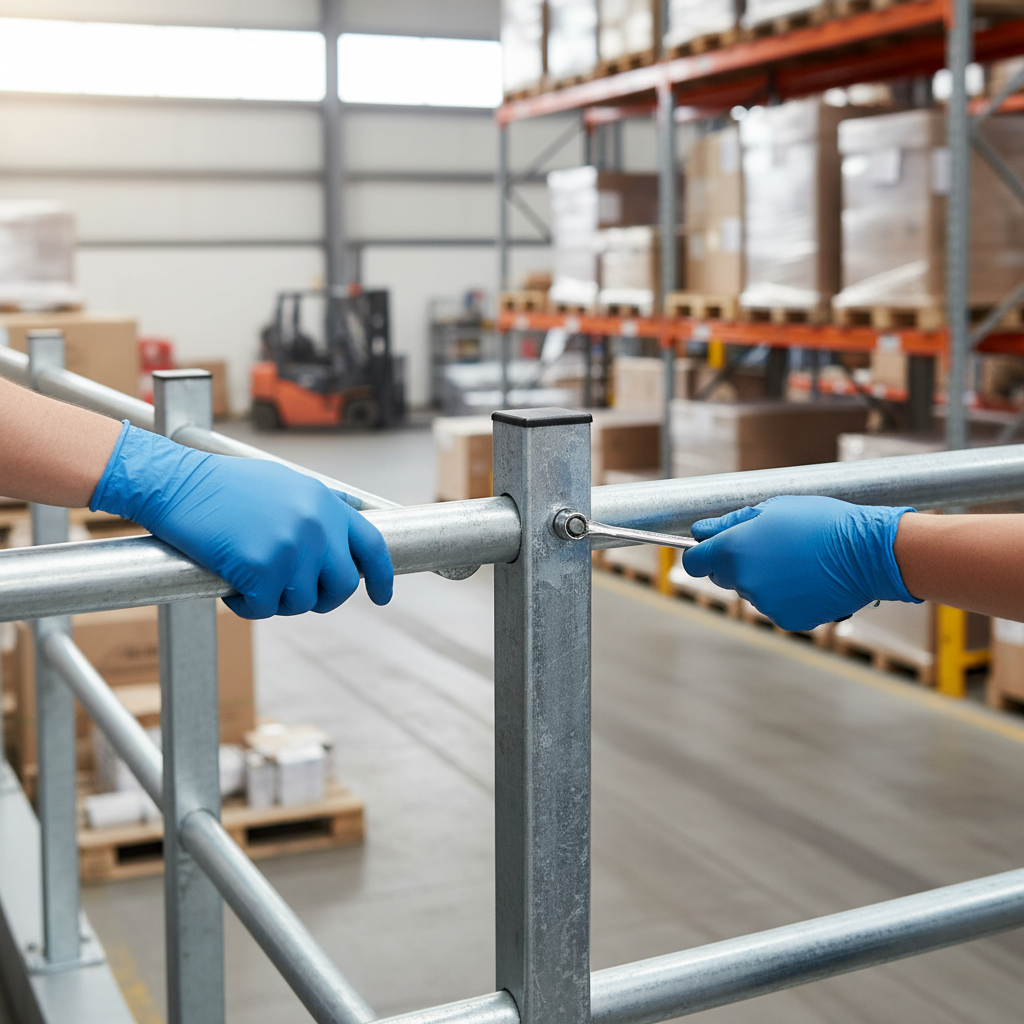

Set out the posts along the floor edge. Fit each post into its base and fix the base to the floor. Slide the top rail and knee rail through the holes in every post, set them level, and tighten the M8 grub screws. Fit a cap to the top of each post.
Care
Galvanising needs no painting. Check the grub screws once a year and after any impact, and touch in cut or drilled steel with cold galvanising paint.
Frequently asked questions
Is the price for one post?
Yes, one galvanised post.
Are the base and cap included?
No. The base fitting, rails and cap are sold separately.
Can the rails join inside a post?
Rails should join between posts with a joint fitting, or run unbroken through the posts.
Ordering and delivery
Order online with Express UK Delivery. For a full guard rail or larger quantities, call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
