Mechanical Gate Code Lock Kit for 40mm Box Section, Keypad One Side, Free Exit, Black

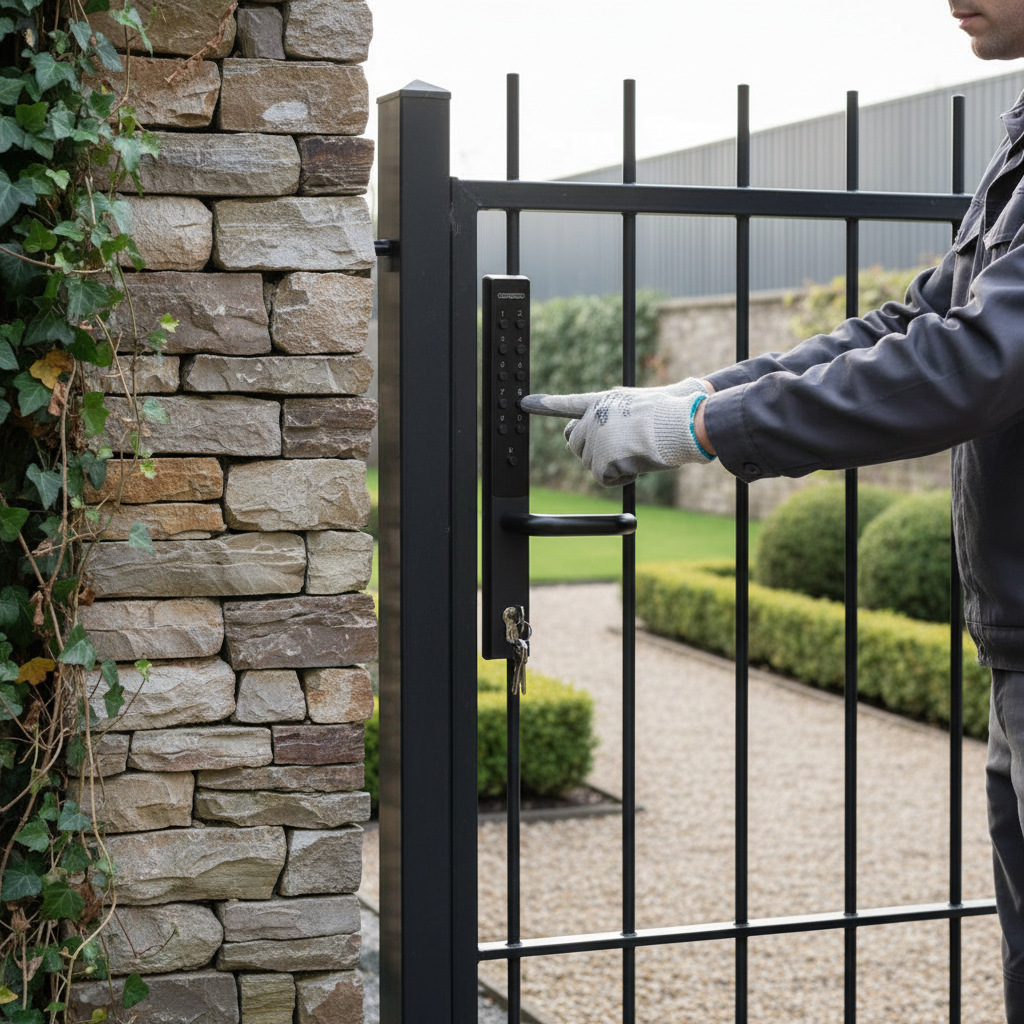

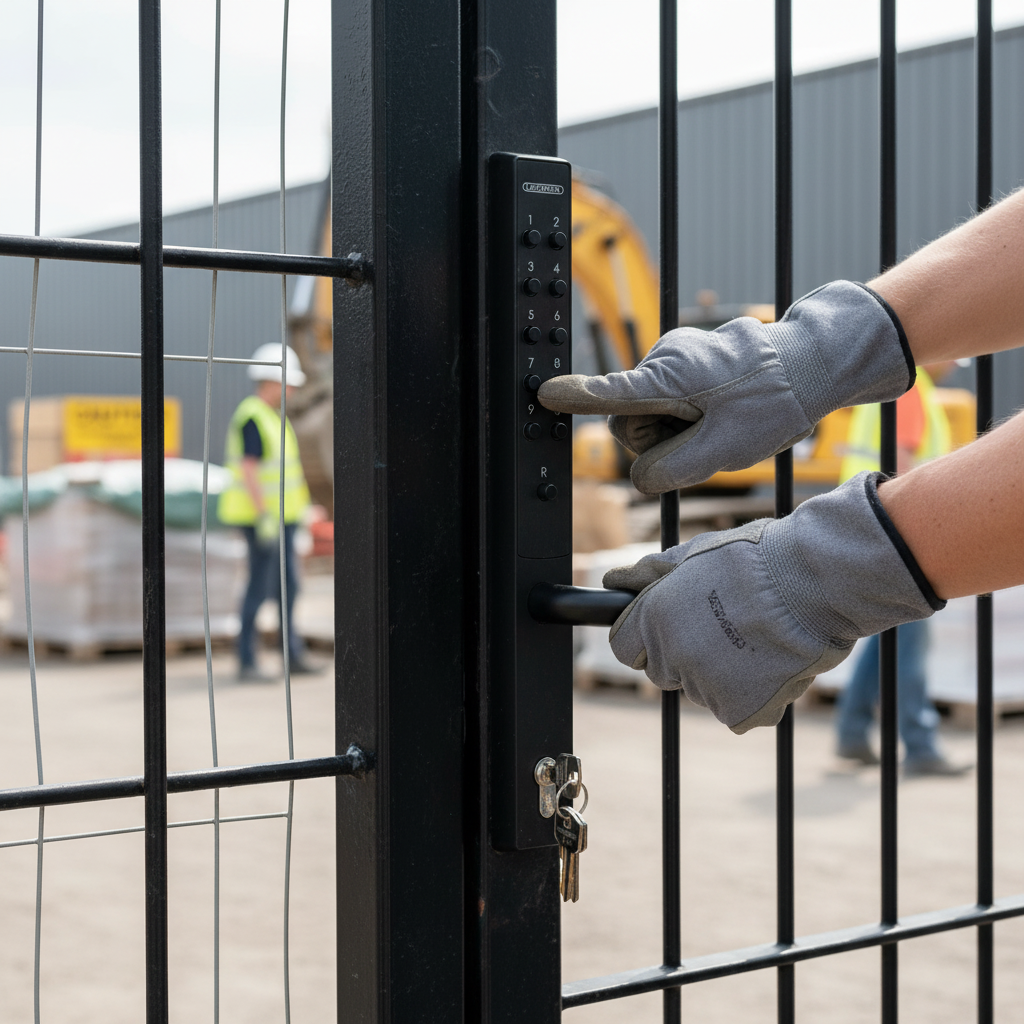

This is a mechanical code lock kit for gates made from 40mm box section: a slim black keypad on the outside, a plain cover plate and lever handle on the inside for free exit, and a 40mm insert lock with handles and a cylinder, all in one kit. Visitors enter the code and press the handle to open; anyone inside simply uses the handle to leave. It needs no batteries, wiring or power, the codes are quick to set and change, and the aluminium housing with textured black paint is built to stand up to vandalism. The price shown is for one complete kit; the keep for the post is sold separately.

Why use this kit

Free exit, coded entry. The keypad is on one side only, so a code is needed to get in but people inside can always leave, which suits flats, schools, offices and play areas.

No power needed. Fully mechanical, so there are no batteries to change or cables to run, and it keeps working in a power cut.

Flexible codes. Codes are quick to set and change, and different entrance and exit codes can be used where needed.

Vandal resistant. A strong aluminium housing and an integrated security press plate protect the keypad, and the press plate also helps stop the code being read from worn buttons.

Where it is used

Pedestrian gates in 40mm box section at blocks of flats, schools, nurseries, offices, sports grounds, play areas and private estates, wherever entry should be by code with free exit.

Specifications

What else you need

Other code locks

Choosing the right option

Choose this single-sided kit where people need a code to get in but must be able to leave freely. Where a code is needed in both directions, choose the double-sided kit. For lit keypads and per-user codes, choose a battery powered code lock. Order the surface keep for code lock kits for the post, and a safety cable for swing gates.

Fitting and care

Cut the opening for the insert lock in the 40mm gate stile and drill for the spindle and cylinder using the template. Fit the lock, the keypad outside and the cover plate inside, then the handles and cylinder, and fit the keep on the post so the lock engages fully. Set the code with the gate open and test it before closing. Wipe the keypad with a damp cloth; do not oil the buttons.

Frequently asked questions

Ordering and delivery

Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. To check the kit suits your gate, call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
