Description

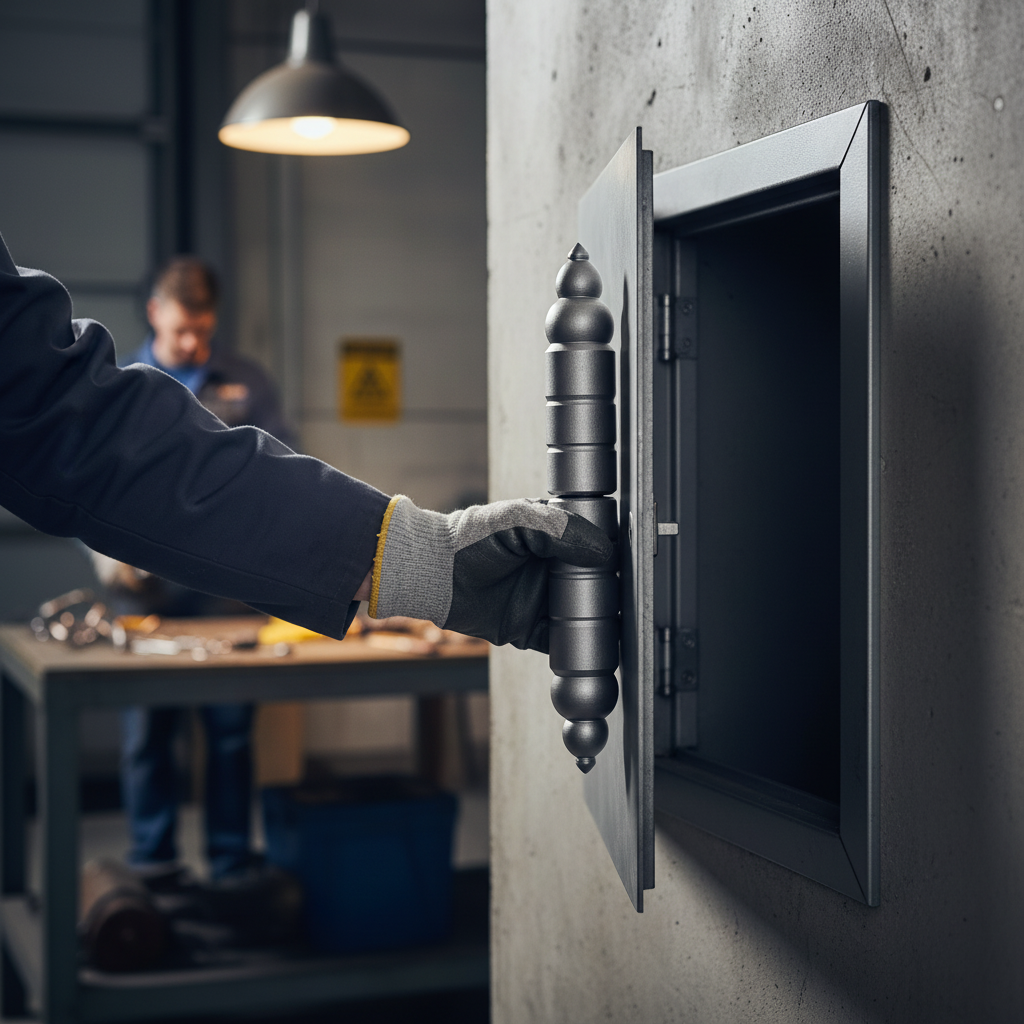

A larger machined weld-on hinge with ornate turned finials, for gates and grille doors that need more metal behind the look. This 170mm hinge comes in two halves: the bottom half carries a 15mm pin and welds to the post or frame, the top half welds to the gate or door and drops over the pin. The 25mm barrel and 32mm long pin give it more substance than our slimmer finial hinge. The price shown is for one hinge (both halves), minimum order 5.
What you get
| Part | Qty | Detail |
|---|---|---|
| Bottom half with fixed pin | 1 | 84mm body, 15mm pin 32mm long. Welds to the post or frame. |
| Top half with socket | 1 | Drops over the pin. Welds to the gate or door. |
Why choose this hinge
Bigger barrel and pin. 25mm across with a 15mm pin 32mm long, against 21mm and 12mm on the slimmer finial hinge.
Decorative ends. A 38mm turned finial at each end, made of two stacked bulbs and a point.
Stated limit of 500kg. The maker publishes a maximum weight limit of 500kg for this size.
Lift-off. The gate or door lifts off for painting or repairs and drops back on with no tools.
Ready to weld. Bare steel, so there is no plating to grind off first.
Where it is used

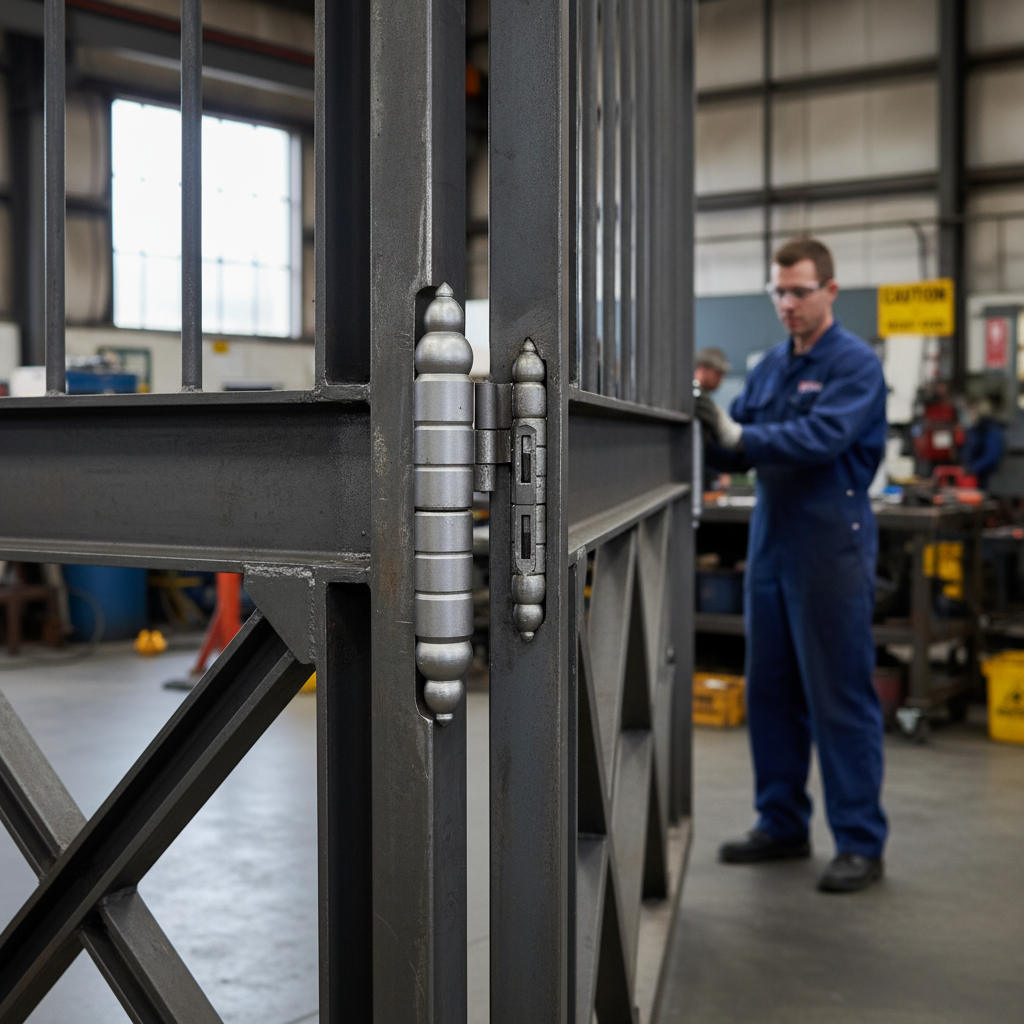

Shop front security grilles, ornamental driveway and side gates, heritage railings and steel doors where a decorative hinge has to do real work.
Specifications
| Sold as | One hinge (top and bottom half), minimum order 5 |
|---|---|
| Type | Weld-on machined hinge, lift-off |
| Overall length | 170mm |
| Barrel diameter | 25mm |
| Bottom half | 84mm, excluding the pin |
| Pin | 15mm across, 32mm long, domed tip 8mm across |
| Ends | Turned ornate finial, 38mm |
| Stated maximum weight limit | 500kg |
| Material | Machined steel, bare, unpainted |
| Weight | About 0.53 kg |
Is this the right one?
| You need | Choose |
|---|---|
| Slimmest, for light gates, doors and lids | Small bullet hinge 110 x 20mm |
| Ball ends on a slim 21mm barrel, stated limit 400kg | Ball end hinge 118 x 21mm |
| Plain rounded ends with an oiling hole, 15mm pin | Medium hinge 130 x 24mm |
| Garden, side and driveway gates, domed ends | Bullet hinge 150 x 30mm |
| Ornate finials on a slim 21mm barrel, stated limit 400kg | Ornate finial hinge 154 x 21mm |
| Zinc plated, locks with a grease nipple | Zinc plated hinge 170 x 20mm |
| Ornate finials on a 25mm barrel, stated limit 500kg | This ornate finial hinge 170 x 25mm |
| Ball bearing and grease nipple, stated limit 500kg | Barrel hinge 170mm with ball bearing |
| Very heavy gates, 45mm barrel, stated limit 1000kg | Heavy ball end hinge 220 x 45mm |
Fitting
Use two hinges per gate or door, one near the top and one near the bottom; add a third on a tall door. Stand the gate in the opening on packers with an even gap at the hinge side. Put the two halves of each hinge together, pin end down, and hold the barrel in the corner between the gate stile and the post. Check all the hinges are in one vertical line, then tack the bottom halves to the post and the top halves to the gate. Weld each half to one side only, or the gate will not swing. Lift the gate off to check it moves freely, then weld out. Keep weld spatter out of the joint, and let it cool before you hang the gate.
Care
Paint the barrel with the gate, keeping paint out of the joint. There is no oiling point on this hinge, so lift the gate off once or twice a year and grease the pin.
Frequently asked questions
Is the price for one hinge?
Yes, one complete hinge in two halves. The minimum order is 5, enough for two gates with one spare.
How much weight will it carry?
The maker states a maximum weight limit of 500kg for this size. Weld quality and the steel you weld to decide what the finished hinge will hold, so have a competent fabricator size the job.
Can I bolt it on?
No. It is made to be welded. For a bolt-on fixing see our adjustable gate hinges with back plates.
Which way up does it go?
The half with the pin goes at the bottom, on the post. The top half drops over it.
Can the gate be lifted off?
Yes, it lifts straight off the pin. If it must not lift off, weld a small stop above the gate stile or choose the zinc plated hinge with the locking grease nipple.
Will it rust?
It is bare steel, so paint it with the gate after welding, keeping paint out of the joint.
Ordering and delivery
Order online with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For fabricators buying in quantity, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm stock and delivery before you order.
