Insert Lock Kit for 60mm Box Section Gates, Silver Handles, Cylinder and Keep

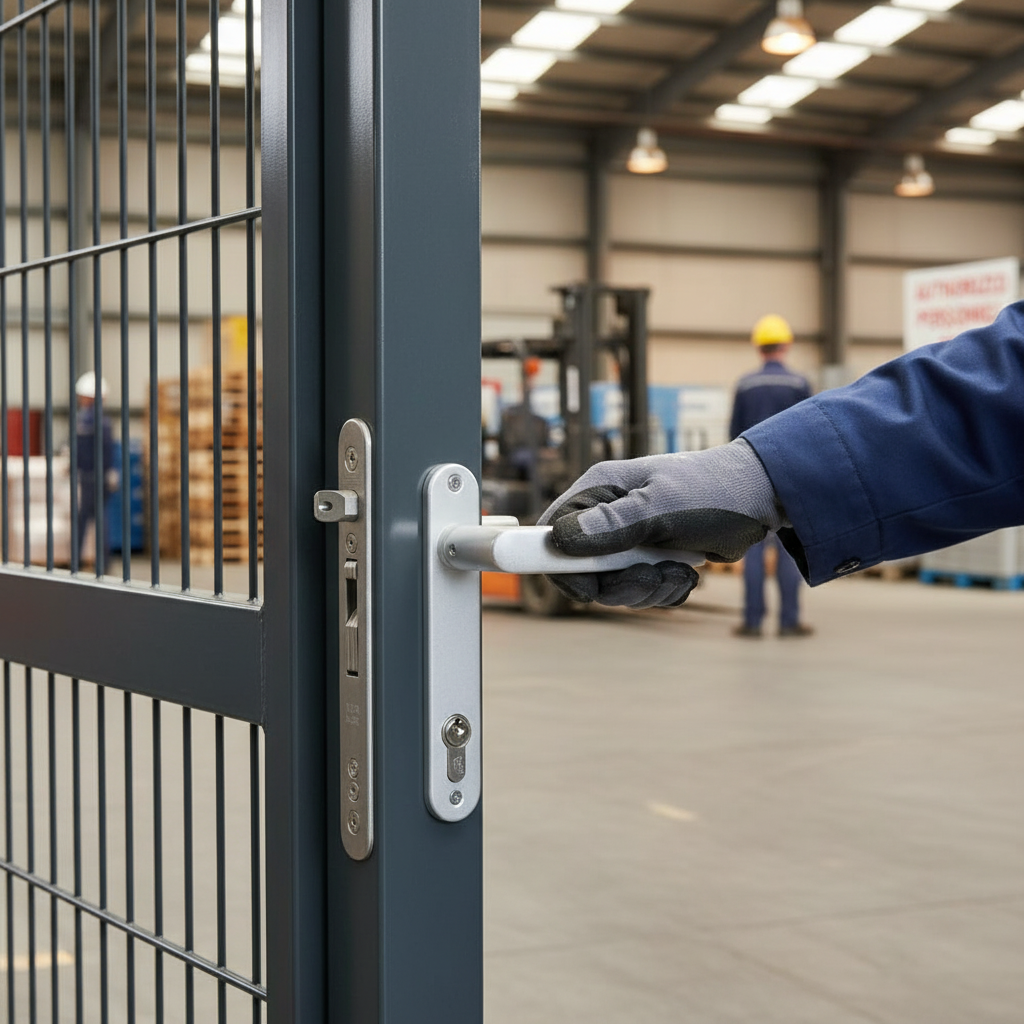

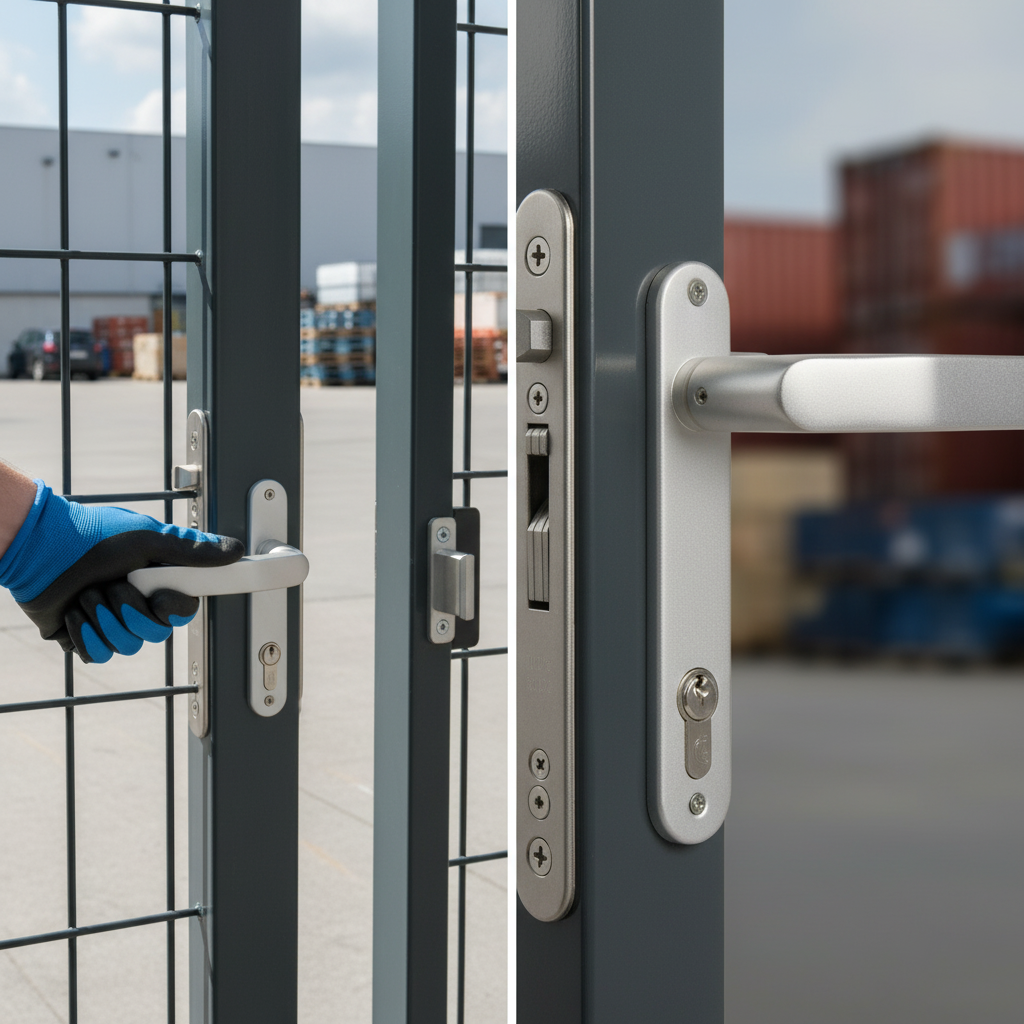

This is a complete insert lock kit for gates made from 60mm box section: a lock with a 100% stainless steel mechanism that fits inside the gate stile, a satin silver aluminium handle set, two aluminium cover plates, a euro cylinder with keys, and a stainless steel keep for the post. The lock throws a stainless hook as well as a self-latching day bolt, so with the keep the gate is held tight to the post and the leaf cannot be pulled away or forced open. It suits metal, aluminium and PVC gates, and the kit gives you everything for one gate in one order. The price shown is for one complete kit.

Why use this kit

Hook bolt security. A stainless steel hook with a 21mm throw locks into the keep and grips it, so the gate cannot be levered away from the post, which is the usual way to force a gate.

Latches every time. The self-latching day bolt catches as the gate closes and can be locked with the key. It changes over for left or right-hand gates and adjusts continuously by up to 10mm without taking the lock out.

Fast to fit. A click-in fixing holds the lock in the profile, so there is no need to tap threads into the box section; once the profile is cut, the lock goes in in seconds.

Built for outdoors. The mechanism, hook, faceplate and latch bolt are stainless steel, and a cover plate keeps dirt out of the mechanism, so it keeps working on exposed gates.

Where it is used

Pedestrian gates at offices, schools, sports grounds, blocks of flats, industrial units and homes, in steel or aluminium 60mm box section, where a neat hidden lock with handles and a key is wanted.

Specifications

Related products

Choosing the right option

Choose this kit for a gate stile in 60mm box section when you want the lock, handles, cylinder and keep together. If you are building the gate and want the stile ready cut for the lock, choose the kit with two pre-cut 2m profiles. If you already have handles and a keep, the lock-only version is cheaper. For 40mm or 50mm box section, choose the matching smaller lock.

Fitting and care

Cut the opening for the lock in the gate stile and drill the handle and cylinder holes at 92mm centres, click the lock into the profile, then fit the cylinder, handles and cover plates. Fit the keep on the post so the hook and day bolt engage fully, and set the day bolt with its adjustment. We recommend a safety cable on every swing gate. Wipe the faceplate clean and put a little graphite in the cylinder once a year.

Frequently asked questions

Ordering and delivery

Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. To check the kit suits your gate, call 01744 520 110 or email sales@industrialsuppliesco.co.uk.
