Lancet Frame Baluster Panel 100 x 1000mm, 12mm Square Bar, Gate and Railing Infill

A crisp, pointed-frame baluster for gates, railings and balconies. This panel is 1000mm long in 12mm square mild steel bar. Its 600mm centre is an open frame 100mm wide with straight sides and curved, pointed ends, like a long lancet window, and a 200mm plain bar runs from each point. Used on every bar it gives a strong, modern rhythm; alternated with plain bars it reads lighter and more traditional. It comes in raw steel, ready to cut, weld and finish. The price shown is for one panel; it used to be sold only as a pack of 2.

Why fabricators use it

Made up and ready to weld. The frame and its pointed ends are already formed and joined, so every panel in a run is identical and lines up.

Plain ends for an easy fit. Each end has 200mm of straight 12mm square bar to trim for lower railings while keeping the frame central.

Same bar as your plain balusters. Standard 12mm square, so it lines up with plain 12mm bars and welds to the same rails.

Proven in driveway gates. The pointed frame works especially well across a pair of gates, as the galvanised gate photo shows.

Where it is used

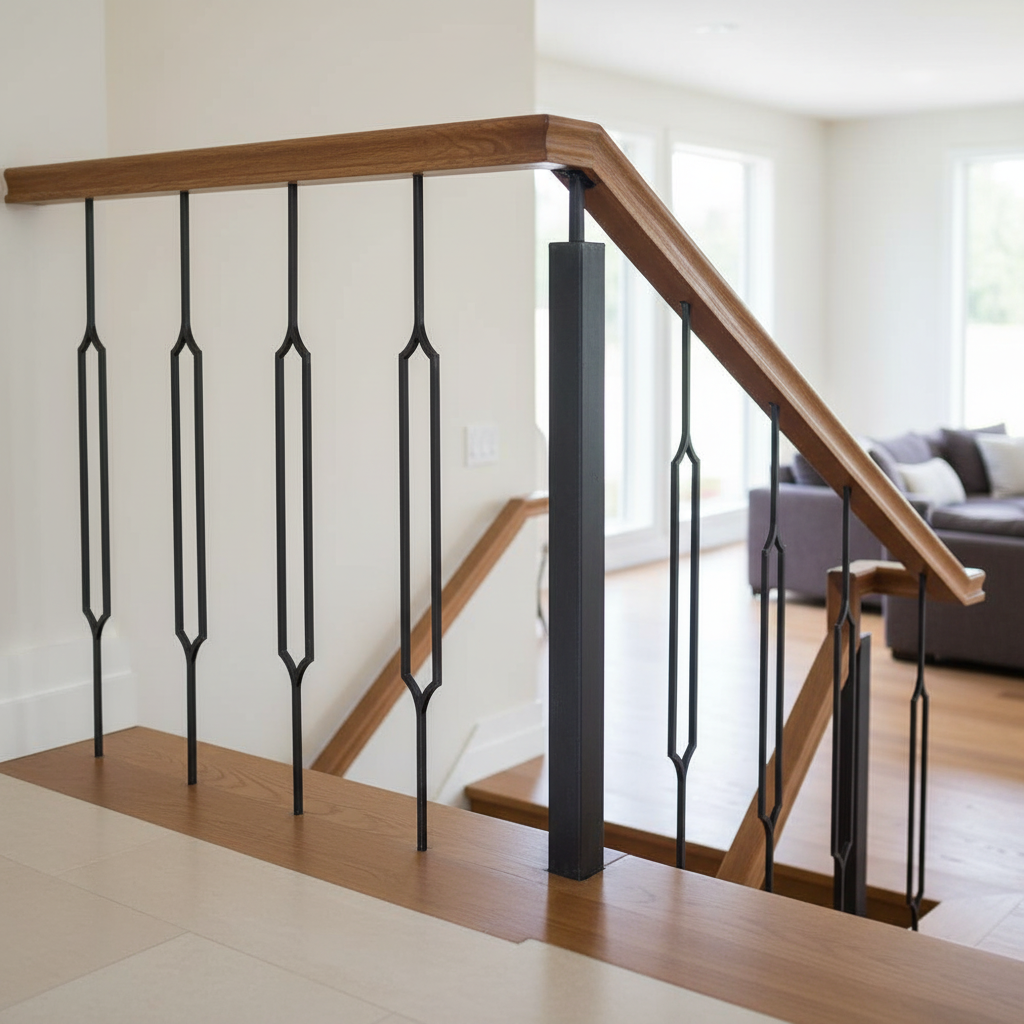

Driveway and garden gates, front garden railings, Juliet and full balconies, stair and landing balustrades, boundary railings on dwarf walls and decorative screens.

Specifications

How many do you need?

At 110mm bar centres a one metre run holds about nine bars:

Stairs, landings and balconies in homes: no gap may let a 100mm sphere pass. The frame is 100mm outside with about 76mm clear inside; keep bar centres at 110mm or less and check with a 100mm gauge.

Choosing the right panel

All of these are 1000 x 100mm in 12mm square bar with plain ends, so they mix and match in the same railing:

See every design in our decorative panels range.

Fitting and care

Measure the clear height between your rails and cut an equal amount off each plain end so the frames stay level. Square the ends, tack each panel to the bottom rail, set it plumb, tack the top, then weld out and grind flush. Raw steel will rust if left bare, so finish it promptly. Outdoors, have it hot-dip galvanised, or degrease, prime with a zinc-rich or etch primer and top coat with metal paint. Check paintwork each spring and touch up chips.

Frequently asked questions

Ordering and delivery

Order online with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a full gate set or a larger job, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm availability and delivery before you order.
