Description

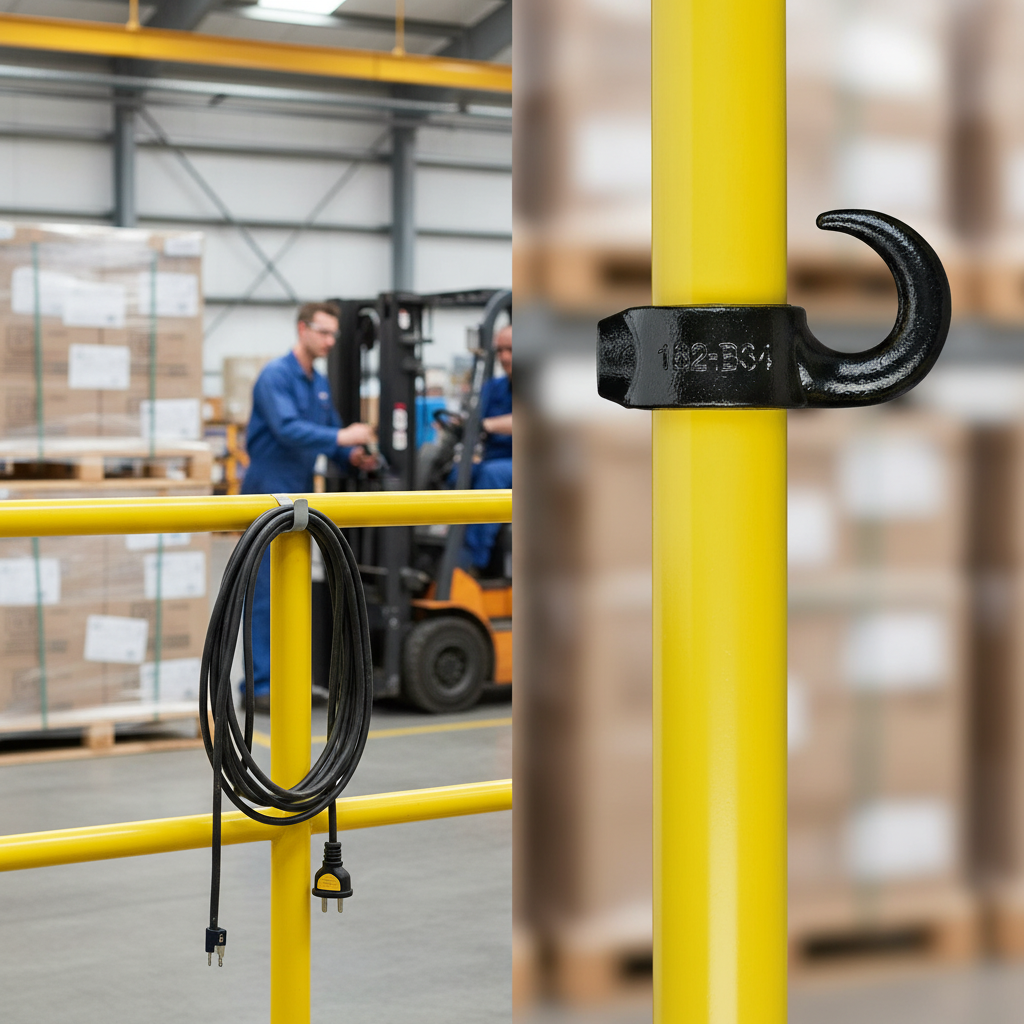

A black hook clip that clamps onto 33.7mm tube and gives you an open hook to hang the end of a chain on, so the chain lifts off whenever you need to get through. The ring slides over the tube and locks with one hex socket grub screw at any height. A curled hook is cast on the side of the ring, opening upwards and parallel to the tube, so a chain link drops on and lifts off in one movement. Use it on posts either side of a doorway, stair top, bar counter or staff area to close the gap with a chain. The black electrophoretic finish matches black key clamp tube for indoor work. The price shown is for one hook clip, with a minimum order of 15.
Why fitters use it
A chain that opens in a second. Lift the end link off the hook to open the gap, drop it back to close it. No clips or shackles to undo.
Fits on the post you already have. The ring clamps round the tube, so there is no drilling or welding, and the height can be changed later.
Black to match black frames. It suits black tube posts and guardrails in bars, cafés, shops and offices.
Small and tidy. The hook sits close to the post, so it does not snag people walking past.
Where it is used

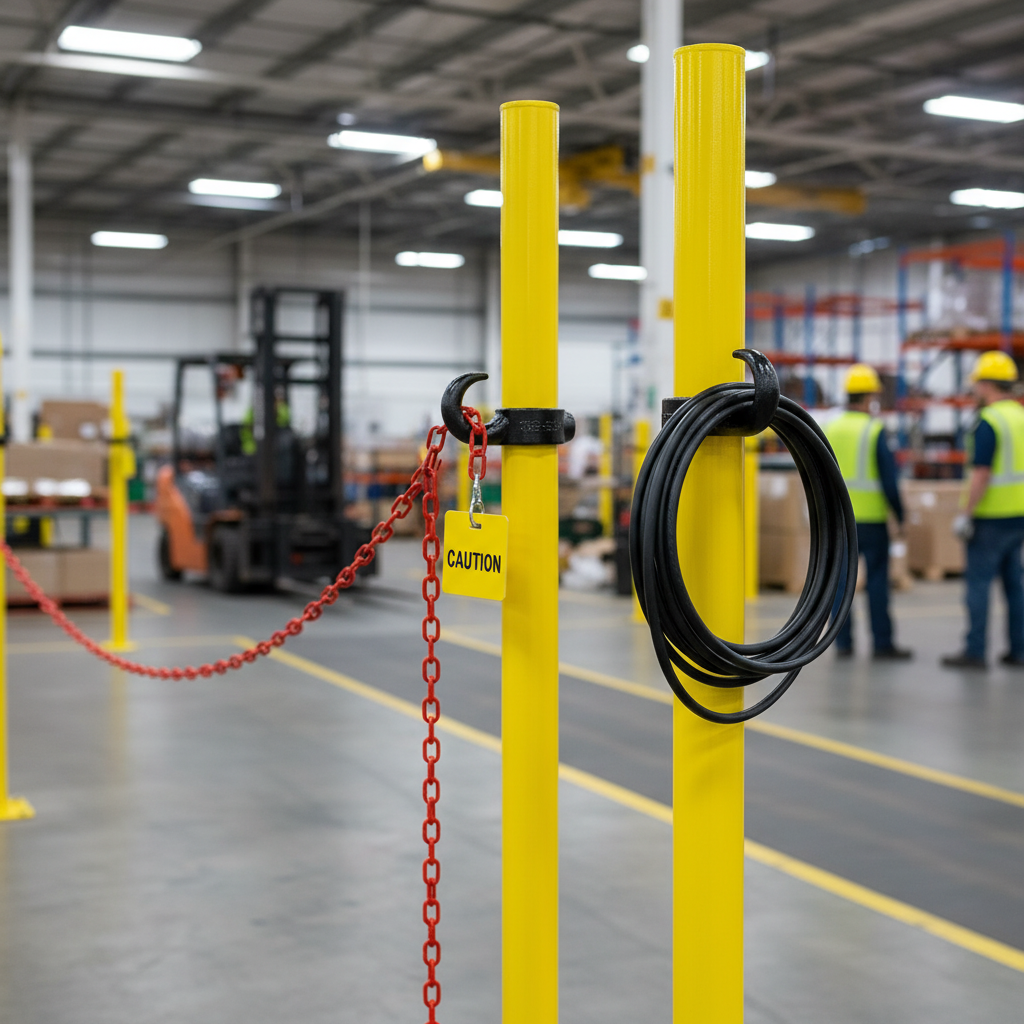

Chains across staff-only areas, bar and counter gaps, cloakroom and storeroom doorways, queue lines, the tops of ladders and stairs to mezzanines, and access gaps in indoor guardrails.
Specifications
| What you get | One hook clip, minimum order 15 |
|---|---|
| Suits tube | 33.7mm outside diameter (size B) |
| Ring width | 24mm |
| Hook position | 34mm from the tube centre |
| Hook | Open, curling upwards, parallel to the tube |
| Grub screw | One hex socket screw |
| Material | Malleable cast iron |
| Finish | Black electrophoretic coat |
| Use | Indoor only |
| Weight | About 0.17 kg |
How many do you need?
| Job | Hook clips |
|---|---|
| One chain across a gap, lift-off at one end | 1, plus a fixed point at the other end |
| One chain across a gap, lift-off at both ends | 2 |
| Two chains, high and low | 2 or 4 |
The chain is not included. Choose a chain with links big enough to sit over the hook.
Choosing the right size
Key clamps are sized by the tube's outside diameter. 33.7mm tube is often sold as 1" or 25mm nominal bore. Measure across the tube before ordering: this fitting will not grip 26.9mm or 42.4mm tube. The same black fitting is made for 26.9mm tube. For outdoor use, choose the galvanised 33.7mm version.
Fitting and care
Slide the clip onto the post, set the height and turn the hook to face the gap, then tighten the grub screw with a hex key. Fit a matching clip or a fixed eye on the post opposite and hang the chain between them. Wipe clean with a damp cloth and touch up chips with black paint. The electrophoretic coat is for indoor use only.
Frequently asked questions
Is the price for one hook clip?
Yes. The price is for one hook clip, with a minimum order of 15.
Is the chain included?
No. The clip only. Use a chain with links that drop easily over the hook.
Can tubes be joined in it?
No. The tube passes through the ring; it does not join two tubes.
Can I use it outside?
No. The black electrophoretic finish is for indoor use. Use galvanised fittings outdoors.
Ordering and delivery
Order 15 or more online, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a full fit-out or mixed fittings, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm availability and delivery before you order.
