Description
Premium Heavy Duty Steel Wheel Guide

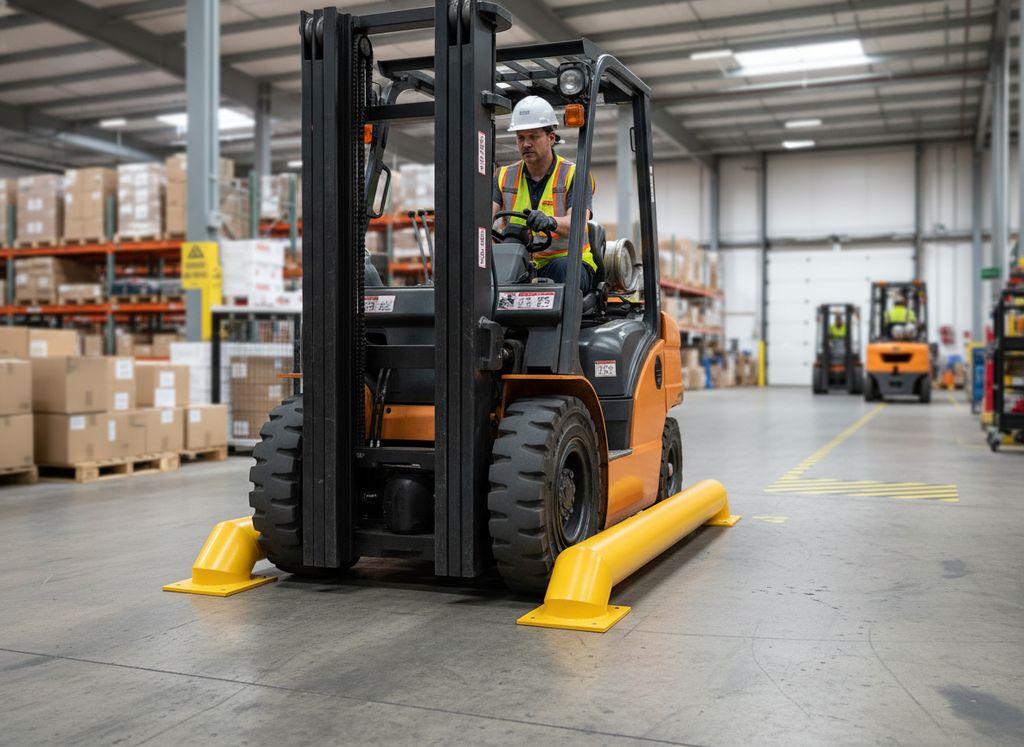

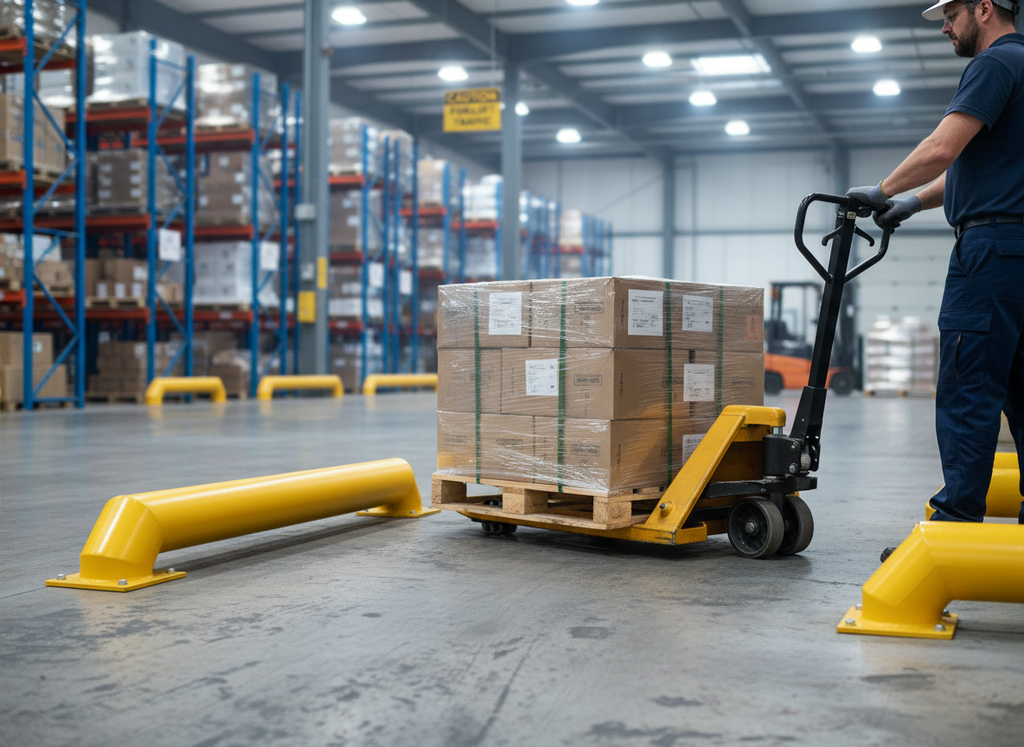

This pair of bolt down wheel guides is designed for durability and efficiency. Made from high-quality galvanized steel and finished with a yellow powder coating, these wheel guides are ideal for use at logistic sites where double-decker trailers or trailers with smaller than average wheel diameters are unloaded. With a height of only 200mm, they are perfectly suited for various loading and unloading applications.
Key Features:
- Constructed from heavy-duty galvanized steel for long-lasting performance
- Yellow powder coating provides added protection and visibility
- Compact height of 200mm suitable for low-clearance environments
- 5mm wall thickness ensures strength and durability
- Requires 6 x R301 M16 fixings per pair of guides for secure installation
Dimensions & Specifications
| Specification | Measurement |
|---|---|
| Length | 2070 mm |
| Width | 250 mm |
| Height | 200 mm |
| Weight | 78 kg |
| Color | RAL1028 Yellow |
Technical Specifications
- Material: Galvanized Steel
- Finish: Yellow Powder Coated
- Wall Thickness: 5mm
- Installation: Requires 6 x R301 M16 fixings per pair
Frequently Asked Questions
-
What is the purpose of the wheel guide?
The wheel guide helps direct and secure the position of trailers during loading and unloading operations. -
Can these wheel guides be used for all trailer sizes?
These guides are ideal for double-decker trailers and those with smaller wheel diameters. -
How are the guides installed?
Each pair requires 6 M16 fixings for secure attachment to the ground.
