316 Stainless Steel Handrail Return End for 48.3 x 2.6mm Tube, 90 Degree Closed End


Price:
Sale price£40.90
Inc. Vat

Express UK Delivery (2 Working Days)

In stock, ready to ship

Trusted by Industry Professionals

Description

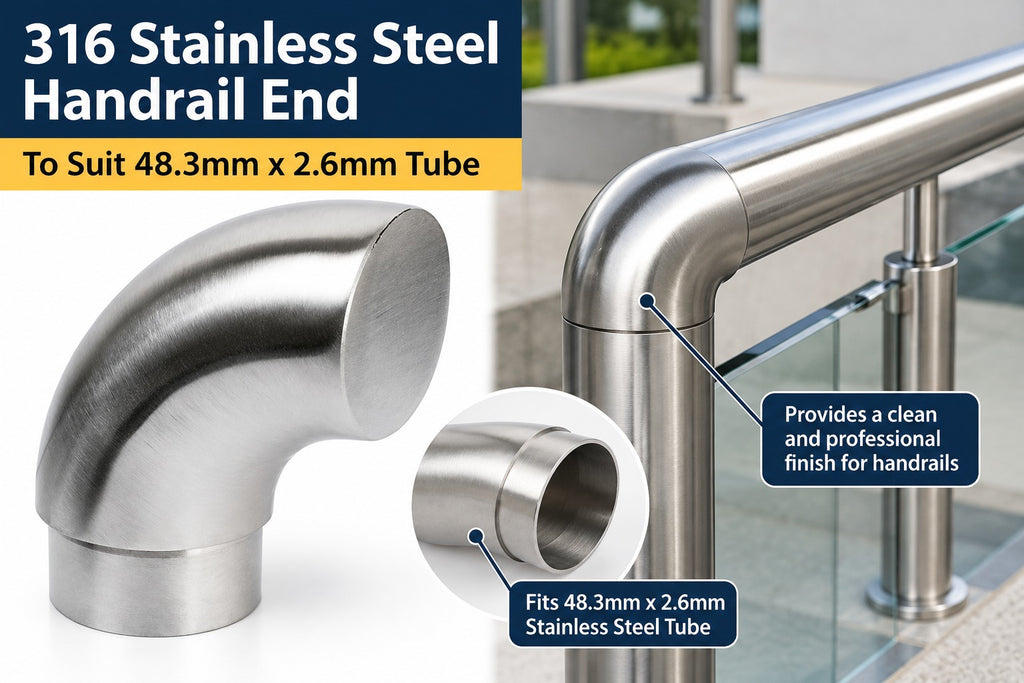

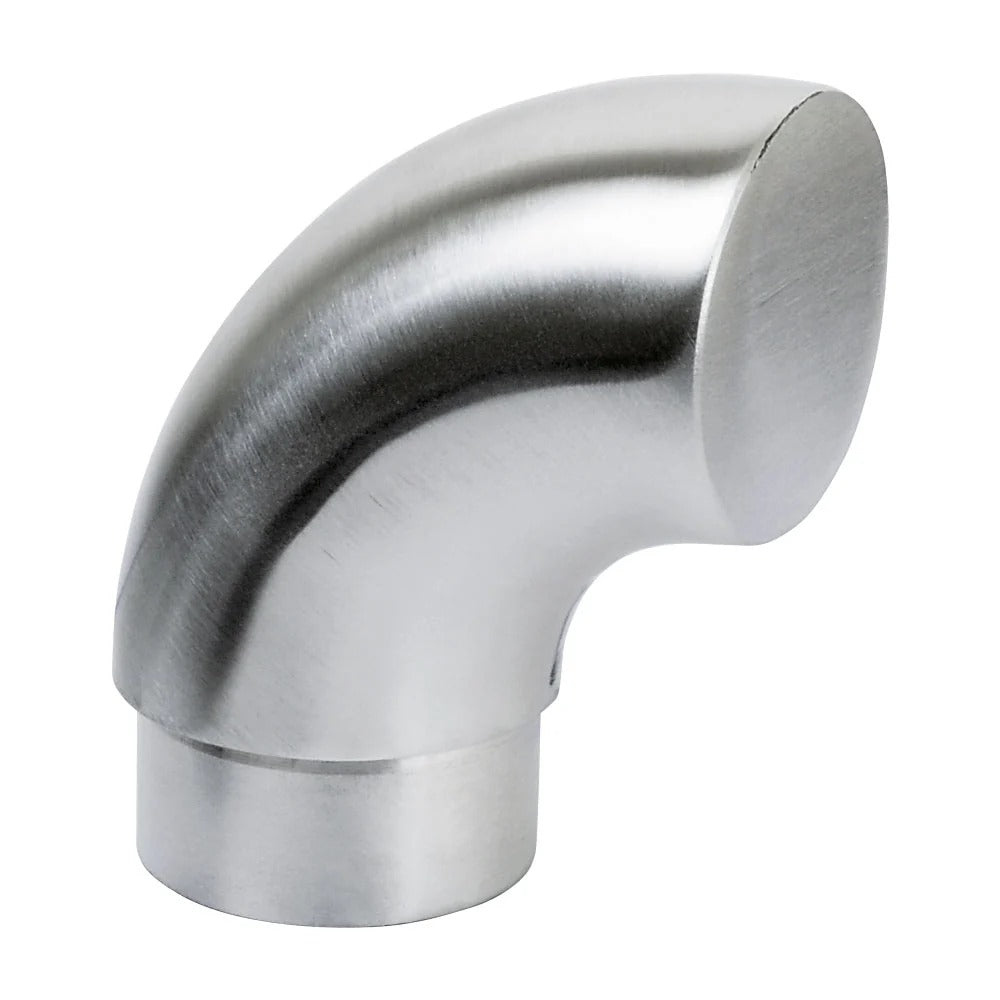

A 316 stainless return end that finishes a 48.3 x 2.6mm handrail by turning it down through 90 degrees to a closed end. A 20mm spigot pushes into the end of the rail, and the radiused bend brings the rail end down towards the floor or wall, so there is no open tube end or square cut edge for clothing, bags or sleeves to catch on. It is the neat, safe way to finish a handrail at the top and bottom of a stair or ramp. Satin 316 suits outdoor, coastal and pool-side work. The price shown is for one return end.

Dimension drawing of the 316 handrail return end for 48.3 x 2.6mm tube: 90 degree radiused bend 74mm across and 76mm high, closed flat end, 20mm spigot 43mm across

What you get

Sold as One return end
Fitting 90 degree radiused return with a closed end and a 20mm push-in spigot, 316 stainless, satin
Not included The tube, weld filler or adhesive

Why choose this return end

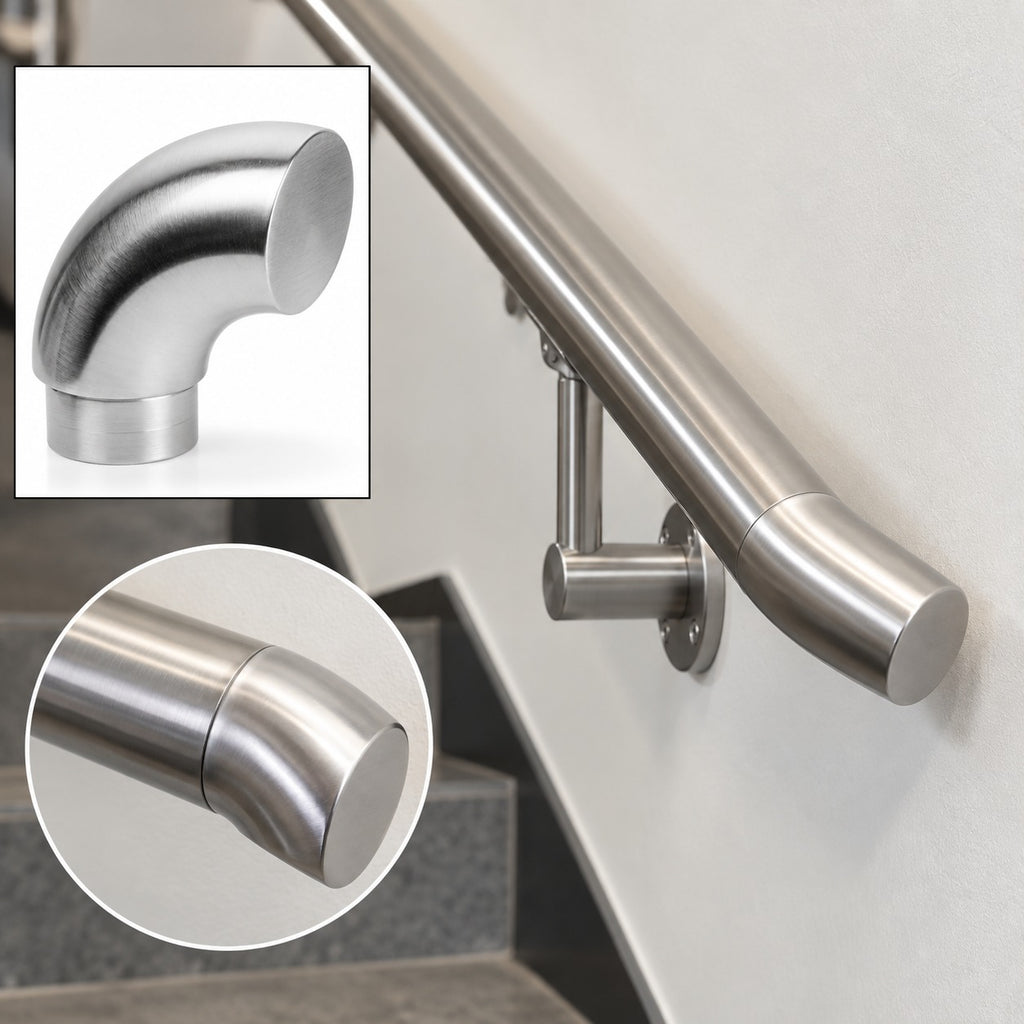

A safer rail end. Turning the end of a handrail down removes the open end that can snag clothing or bags, which is why designers ask for returned rail ends on public stairs and ramps.

Flush with the rail. The bend is the same 48.3mm as the tube and the spigot fits inside it, so the end looks like part of the rail with a single fine joint line.

316 grade for outdoors. 316 stainless contains molybdenum, which gives it much better resistance to salt and chlorine than 304, so it is the right choice by the sea, around pools and on exposed entrances.

Specifications

Material 316 stainless steel, satin finish
Fits 48.3mm tube with a 2.6mm wall (43.1mm bore)
Bend 90 degrees, radiused, 74mm across and 76mm high
End Closed and flat
Spigot 20mm long, 43mm across
Wall 3mm
Weight About 0.33 kg

Is this the right return end?

Your tube Choose
48.3 x 2.6mm, outdoors This 316 return end
48.3 x 2.0mm, outdoors 316 return end 48.3 x 2.0mm
42.4 x 2.0mm, outdoors 316 return end 42.4mm
48.3 x 2.0mm, indoors 304 return end 48.3 x 2.0mm
48.3 x 2.6mm, indoors 304 return end 48.3 x 2.6mm
42.4 x 2.0mm, indoors 304 return end 42.4mm

Fitting

Check the tube first: this return end suits 48.3mm tube with a 2.6mm wall, the heavier tube used on busy public stairs. Cut the rail end square and deburr the inside, push the spigot fully home with the bend pointing the way you want, then weld round the joint, or bond with a structural adhesive made for stainless steel. Dress any weld back along the grain to match the satin finish.

Care

Outdoors, rinse the rail and fittings with fresh water and wipe along the grain every few weeks, more often near the sea or a pool, so salt and chlorine do not leave brown tea staining. Use warm soapy water; avoid chlorine bleach, wire wool and scouring pads.

Frequently asked questions

Is the price for one return end?

Yes, one. A straight run usually needs two, one at each end.

Will it fit 48.3 x 2.0mm tube?

It will go in but sit loose, because 2.0mm wall tube has a bigger bore. Use the 48.3 x 2.0mm return end.

Can it turn towards a wall instead of down?

Yes. Rotate it before you fix it so the end points the way you need.

Ordering and delivery

Order online in any quantity, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a full handrail with tube, bends, brackets and ends, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm the parts and delivery before you order.
