316 Stainless Steel Glass Balustrade End Post Kit 42.4mm with Glass Clamps, Handrail Saddle and Base Plate


Price:
Sale price£224.90
Inc. Vat

Express UK Delivery (2 Working Days)

In stock, ready to ship

Trusted by Industry Professionals

Description

Everything for the outdoor-grade end post of a glass balustrade with a handrail, ready to bolt down. This kit is a 42.4mm x 2.0mm satin 316 stainless post with a 120mm base plate already welded on and the clamp holes already drilled on one side, plus two D-shaped glass clamps, rubbers and screws, a cover plate and a saddle for a 42.4mm handrail. An end post holds one glass panel, on one side, at the start or end of a run, and with the handrail fitted the finished height is 1100mm. The price shown is for one post kit. Glass, handrail tube, handrail end cap and floor fixings are not included.

Dimension drawing of the 316 glass balustrade end post kit showing 1100mm to the top of the handrail, 977mm post, two clamp holes on one side at 665mm centres and 156mm below the top of the post

What is in the kit

Post 42.4mm x 2.0mm 316 stainless, satin, 977mm tall, clamp holes drilled on one side
Base plate 120mm, welded on, with three slotted fixing holes
Glass clamps 2, D-shaped, on one side, with rubbers for 8, 10 or 12mm glass and fixing screws
Cover plate 1, to hide the base plate and bolts
Handrail support 1 saddle for a 42.4mm round handrail
Not included Glass panels, handrail tube, handrail end cap, floor fixings

Why choose this kit

316 grade, for outdoors, the coast and pools. 316 stainless contains molybdenum, which gives it far better resistance to salt and chlorine than 304. Choose it for balconies, roof terraces and cafe terraces near the sea, round swimming pools, and anywhere road salt or de-icer is spread.

A clean finish at each end. The clamps are on one side only, so nothing sticks out past the last panel, and the saddle carries the end of the handrail. The clamp holes are drilled at 665mm centres, matching the 316 mid and corner post kits.

Load tested. A run built from these 42.4mm posts was proof-load tested by an independent UK test house in May 2023 to BS 6180:2011. The test run was three posts, two 10mm laminated glass panels and a 3 metre 42.4mm handrail, each post bolted to concrete with three M8 x 75mm fixings. It took a 0.74 kN point load and a 0.74 kN line load over 1 metre with no permanent set, deflecting about 24mm at full load. Your own run still needs checking by whoever signs off the design, because post spacing, glass, fixings and the floor all change the result.

Where it is used

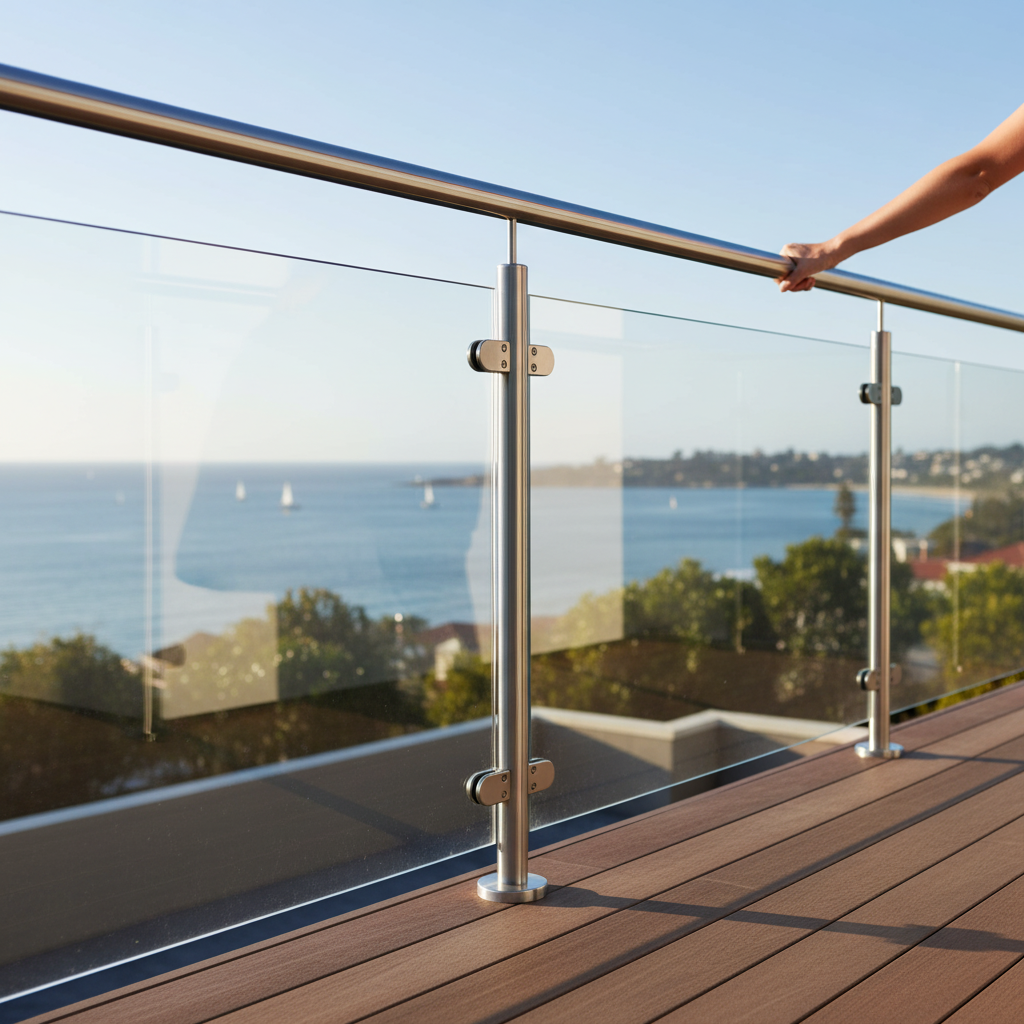

Use it at the start and end of glass balustrades with a handrail on seafront cafe and restaurant terraces, balconies and roof terraces, beside steps down to a beach or garden, round pools and on raised patios.

Specifications

Material 316 stainless steel, satin
Post 42.4mm x 2.0mm
Height to top of post 977mm
Height to top of handrail 1100mm with a 42.4mm rail on the saddle
Height with an end cap instead About 1000mm (end cap not included)
Clamp hole centres 665mm, upper clamp 156mm below the top of the post, one side
Clamp screws M8, supplied
Glass 8, 10 or 12mm, one panel on one side
Base plate 120mm, welded
Weight 4.2 kg

Is this the right post?

Your situation Choose
316 run, the start or end, with a handrail This end post kit
316 run, between two panels 316 mid post kit 42.4mm
316 run, a 90 degree corner 316 corner post kit 42.4mm
A domed cap on top instead of a handrail 316 end post 42.4mm with cap
Indoors or sheltered, away from salt 304 end post kit 42.4mm

Fitting and care

Set out the run and stand each post in place, marking through the slots in the base plate. Turn the end post so its clamps face along the run towards the glass. Fix to the floor with anchors suited to the floor; the tested run used M8 x 75mm fixings into concrete. Slide the cover plate down the post before the handrail goes on. Fit the clamps with the rubbers for your glass thickness, set the panel in and tighten the clamp screws evenly, then lay the handrail in the saddles and finish its end with an end cap.

Outdoors, rinse the posts and handrail with fresh water and wipe them along the grain every few weeks, more often near the sea or a pool, so salt and chlorine do not leave brown tea staining. Avoid chlorine bleach and wire wool.

Frequently asked questions

Is the price for one post?

Yes, one end post kit. A straight run needs two end post kits, plus a mid post kit between each pair of panels.

Is the glass included?

No. Glass, handrail tube, handrail end cap and floor fixings are not included. The clamps take 8, 10 or 12mm glass.

What height is it?

977mm to the top of the post, and 1100mm to the top of a 42.4mm handrail sitting in the saddle. With an end cap instead of a handrail it finishes at about 1000mm.

Can it be used against a wall?

Yes, as the last post next to a wall, with the clamps facing the glass and the plain side towards the wall.

Has it been load tested?

Yes. A three-post run of 42.4mm posts with 10mm laminated glass and a 42.4mm handrail was proof-load tested to BS 6180:2011, taking 0.74 kN point and line loads with no permanent set. Ask us for the details for your designer.

Can I use it by the sea or round a pool?

Yes, that is what 316 is for. Rinse it with fresh water now and then to keep the satin finish clean, and use a 316 handrail and fixings too.

Ordering and delivery

Order one kit per end online, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For a full run with mid and corner posts and handrail, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm the parts, availability and delivery before you order.
