Lattice Knot Medallion 800 x 800mm, 16 x 8mm Flat Bar, for Driveway Gates and Garden Walls

A large square medallion for driveway gates and garden walls. This panel is 800mm across and 800mm high, made from 16 x 8mm flat bar. A rounded, cushion-shaped outer frame with a point at the middle of each side surrounds a straight cross of flat bar running side to side and top to bottom. At the centre sits a diamond lattice grid, and each of the four quarters holds an interlaced loop finished with two heart-shaped curls, with forged collars at the joints. It is 16mm deep and weighs about 11.6kg. Weld it flat to the face of a pair of gates or a railing bay, or fix it to a wall as a bold feature. It comes in raw steel, ready to fit and finish. The price shown is for one medallion.

Why fabricators use it

Big enough for driveway gates. At 800mm across it holds its own in the middle of a full-size gate leaf, where a smaller ornament would look lost.

Straight cross to weld to. The cross bars give long, straight faces that line up with gate bars and rails for clean welds.

Modern and traditional. The lattice centre and interlaced loops suit contemporary homes as well as period houses.

Symmetrical. It is the same in all four directions, so it cannot go in the wrong way.

Mild steel takes any finish. Paint it, powder coat it or have it hot-dip galvanised so it matches the rest of the job.

Where it is used

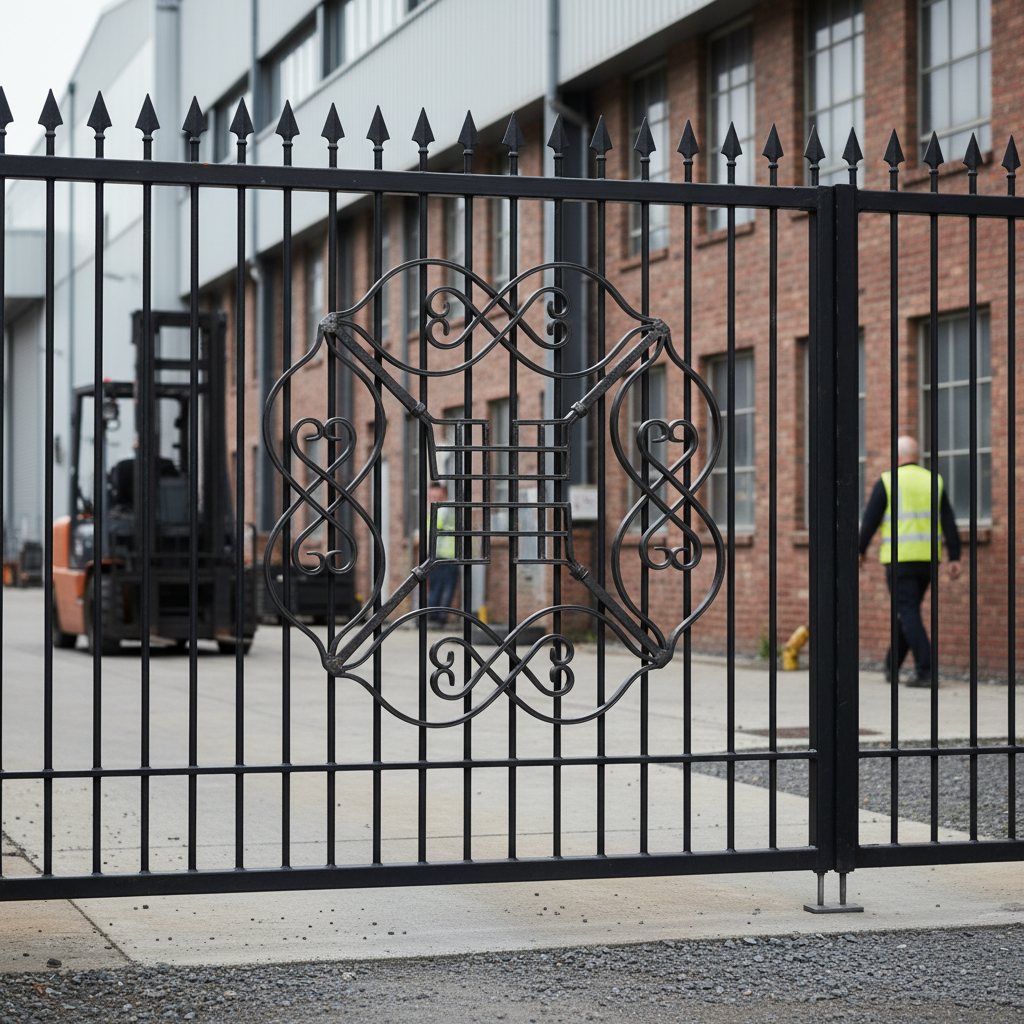

Driveway and estate gates, pedestrian gates, railing feature bays, garden and courtyard walls, garden screens, and entrances to homes, hotels, pubs and offices.

Specifications

How many do you need?

Choosing the right panel

This medallion suits a gate leaf at least 1 metre wide. For a smaller or different piece, compare:

• 620 x 880mm coronet scroll medallion
• 705 x 1500mm oval lattice ornate panel
• 535 x 680mm oval lily bouquet panel
• 410mm round rose panel

See every design in our decorative panels range.

Stairs, landings and balconies in homes: the gaps in the guarding must not let a 100mm sphere pass. Welded to the face of a bar railing that already meets this, the medallion only narrows the gaps.

Fitting and care

Mark the centre of the gate leaf, offer the medallion up and line the cross bars up with the gate bars. Tack it at the four points and the cross, check it is level and central, then weld out and dress the welds. For a wall, fix through the outer frame with stainless anchors. Raw steel will rust if left bare, so finish it the same day or keep it dry. Outdoors, have it hot-dip galvanised, or degrease, prime with a zinc-rich or etch primer and top coat with metal paint.

Frequently asked questions

Ordering and delivery

Order online, with Express UK Delivery to your site and same-day dispatch on orders before 2pm, Monday to Friday. For several pieces, mixed parts or a larger job, call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm availability and delivery before you order.
