Premium Angle Base Fixing 30-45° Fitting for 42.4mm Tube - Light Load Capacity - High-Quality Professional Grade for Industrial and Commercial Appl...

Product Overview

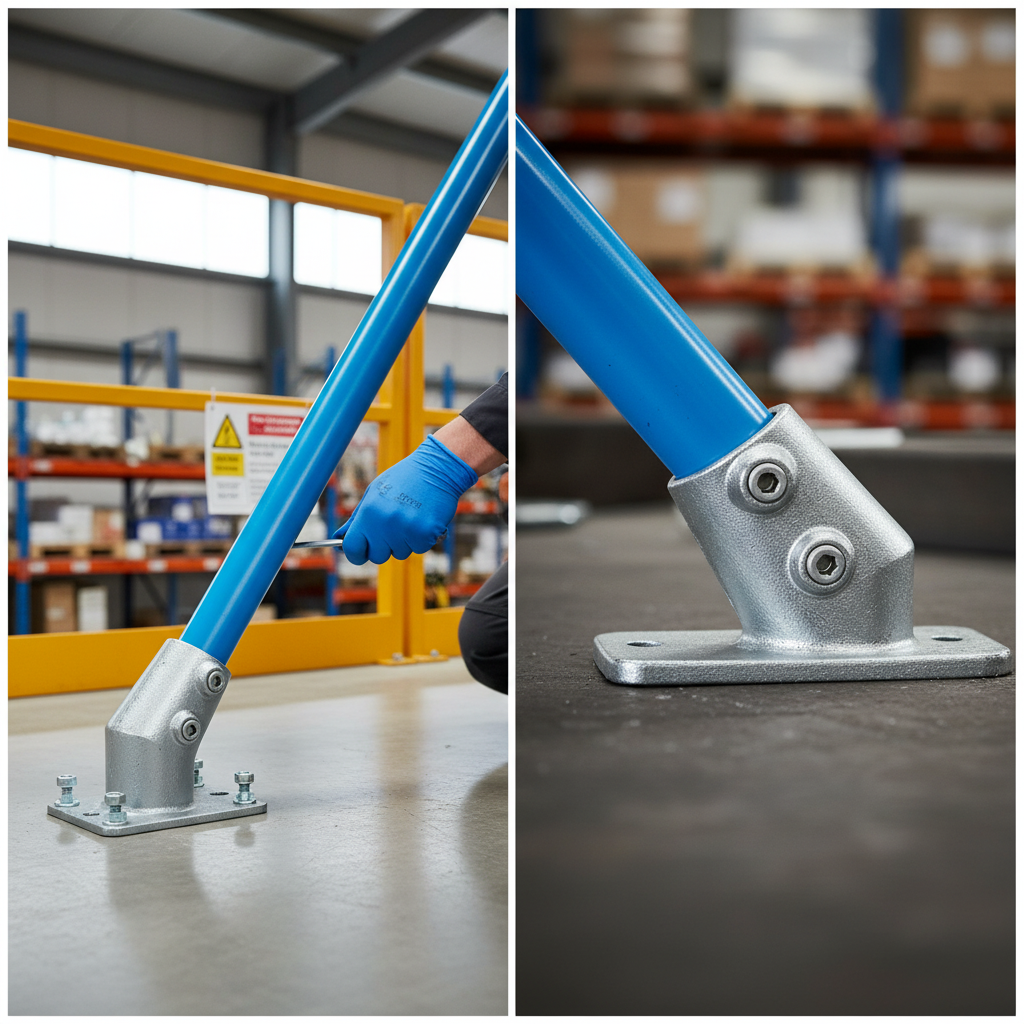

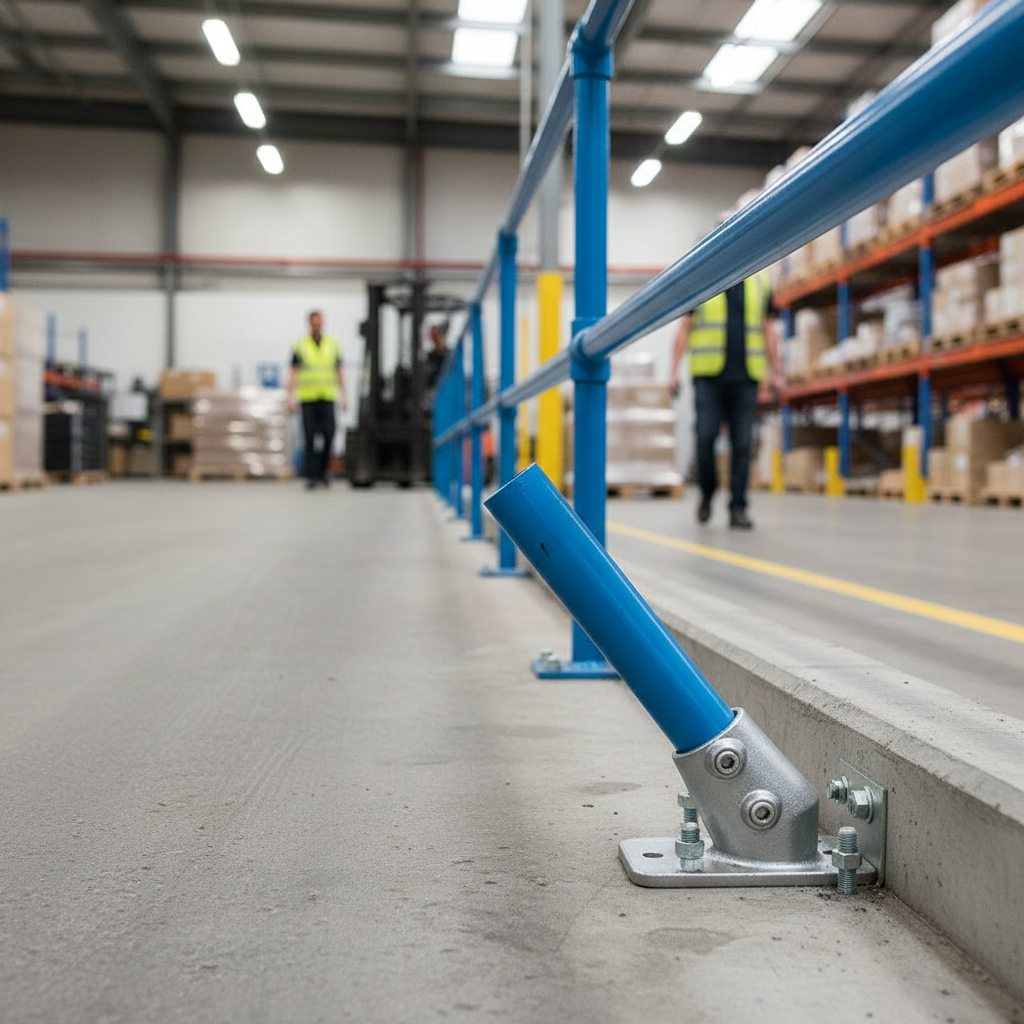

This Premium Angle Base Fixing is designed to securely fit tubes with a diameter of 42.4mm. It is specifically engineered for applications requiring a 30-45° angle, making it an ideal choice for various structural and construction projects.

This fitting is suitable for light loads, ensuring that it can be used safely and effectively in applications where heavy stress is not a factor.

Technical Specifications

• Type: Angle Base Fixing
• Angle Range: 30-45°
• Tube Compatibility: 42.4mm diameter tube
• Load Capacity: Light loads only
• Weight: 1.23 kg
• Length: 165.0mm
• Width: 105.0mm
• Depth: 70.0mm
• Material: Malleable Iron
• Material finish: Galvanised

Usage Instructions

To install, ensure that the fitting is aligned properly between the tube and the support structure at the specified angle. Use appropriate fasteners to secure the fitting in place, ensuring that it is adequately tightened to maintain stability.

Safety Information

Do not exceed the recommended load capacity of this fitting. Ensure that all installations comply with local building regulations and safety standards.

FAQ

• Q: What is the maximum load this fitting can support?
  A: This fitting is designed for light loads only.
• Q: Can this fitting be used for outdoor applications?
  A: It may be suitable for outdoor use, but ensure it is protected from harsh environmental conditions.
• Q: Is it easy to install?
  A: Yes, installation is straightforward with the correct tools and alignment.
