Description
Description

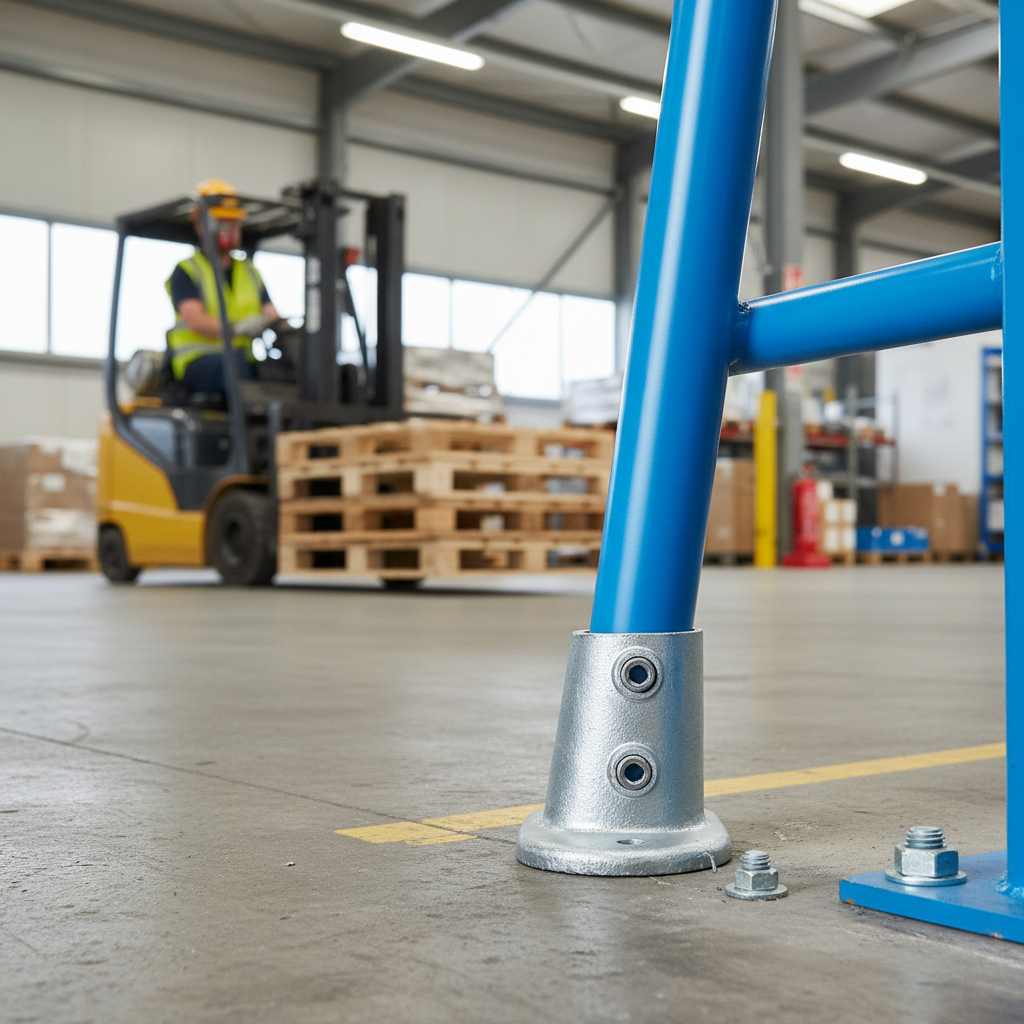

The Premium Adjustable Slope Oval Base Flange is designed to accommodate slopes ranging from 0 to 11 degrees, making it an excellent choice for various applications, particularly for ramp uprights. This flange is compatible with 48.3mm tubes, ensuring a secure and stable connection.
Features
- Adjustable design for slopes between 0° and 11°
- Compatible with 48.3mm tubes
- Durable construction for long-lasting use

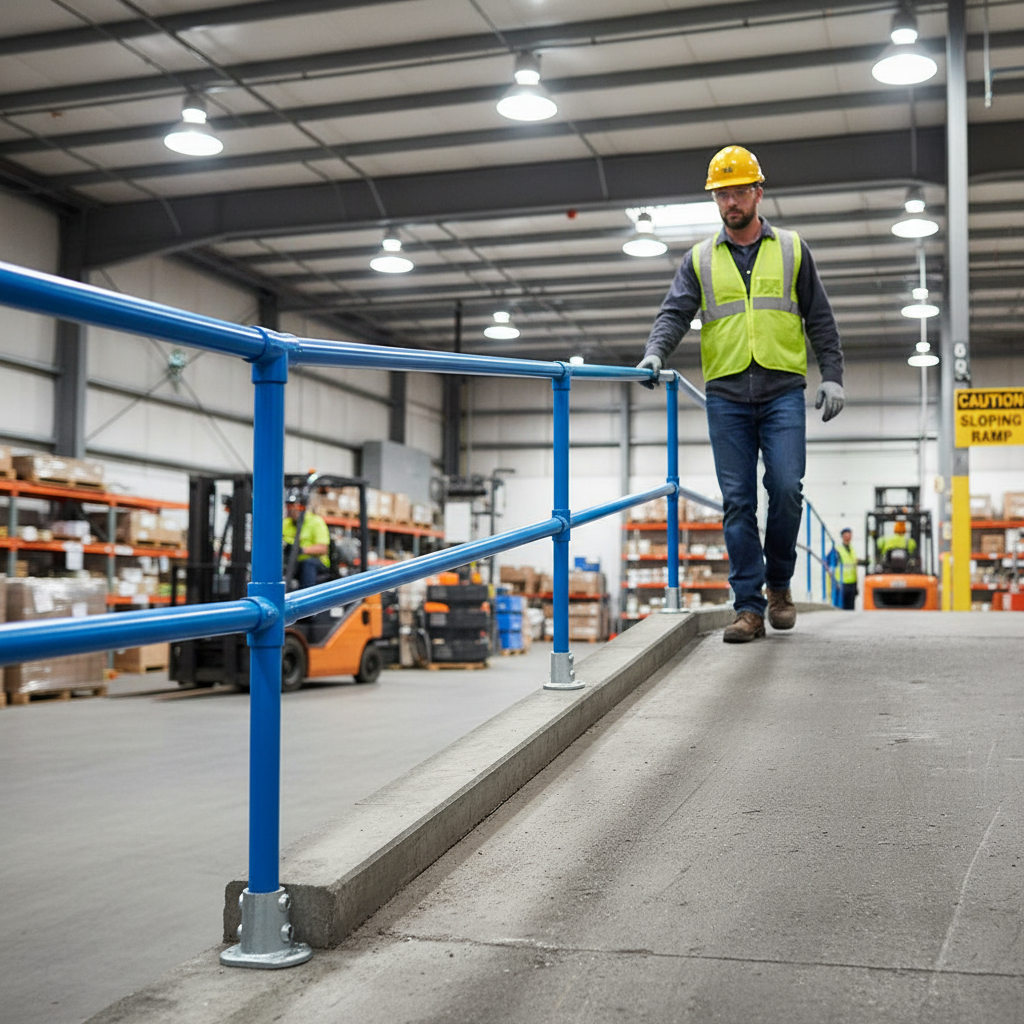

- Ideal for ramp uprights and similar applications
Technical Specifications
| Specification | Measurement |
|---|---|
| Slope Adjustment | 0° - 11° |
| Tube Size Compatibility | 48.3mm |
| weight | 1.33 kg |
| length | 155.0mm |
| width | 102.0mm |
| depth | 97.0mm |
| material | Malleable Iron |
| material finish | Galvanised |
Applications
This adjustable base flange is suited for various uses, particularly in settings where ramp uprights are required. Its robust design allows for dependable support in both commercial and industrial applications.
FAQ
-
What is the maximum slope this flange can accommodate?
This flange can adjust to slopes of up to 11°. -
Is the flange suitable for outdoor use?
Yes, the durable construction makes it suitable for outdoor applications. -
Can it be used with other tube sizes?
This flange is specifically designed for 48.3mm tubes for optimal fit and stability.
