Description
A 4-way adjustable gate hinge with an M16 eyebolt, for steel gates that must hang true and stay that way. A U-shaped grip welds to the post and holds the eye of a hot-dip galvanised M16 eyebolt. The bolt passes through a slotted ear plate that screws to a groove plate welded on the gate. After hanging you can move the gate in and out, sideways, and up or down, and the same hinge works on left or right hand gates. It opens to 180 degrees. The price is for one hinge.
Why choose this hinge
Adjusts four ways. In and out on the eyebolt nuts, sideways along the slot in the ear plate, up and down in the groove plate, and left or right hand. Set the gate perfectly after hanging and correct it later if the post moves.
Opens to 180 degrees. The gate can fold right back against the fence line.
Strong and compact. M16 hot-dip galvanised eyebolt, rated by the maker for gates up to 200kg depending on gate width and hinge spacing.
No left or right hand to stock. One hinge suits both hands of gate.
Where it is used
Pedestrian, garden and side gates, school and playground gates, mesh panel gates in box section, and gates fitted with a hydraulic gate closer.
Specifications
| Sold as | One hinge |
|---|---|
| In the pack | U-shaped grip, M16 eyebolt with nuts and washers, slotted ear plate, groove plate, screws |
| Eyebolt | M16, hot-dip galvanised, 110mm from pivot to bolt end |
| Grip | 40mm wide, 42mm high, 30mm deep |
| Ear plate | 88mm, 60mm high, slotted, zinc plated |
| Groove plate | 80mm high, 36.5mm wide, for gate stiles 40mm and over |
| Height adjustment | About 20mm |
| Opening | 180 degrees, left or right hand |
| Gate weight | Up to 200kg (maker's figure, gate width up to 4m) |
| Weight | About 1.13 kg |
Which 4-way hinge?
| You want | Choose |
|---|---|
| Gates up to 200kg, M16 eyebolt | This hinge |
| Heavy gates up to 400kg, M20 eyebolt | 4-way adjustable hinge, M20 |
| No welding at all, sold as a pair | Bolt-on 180 degree adjustable hinges, pair |
| A gate that closes itself | 180 degree self-closing hinge and closer |
Fitting

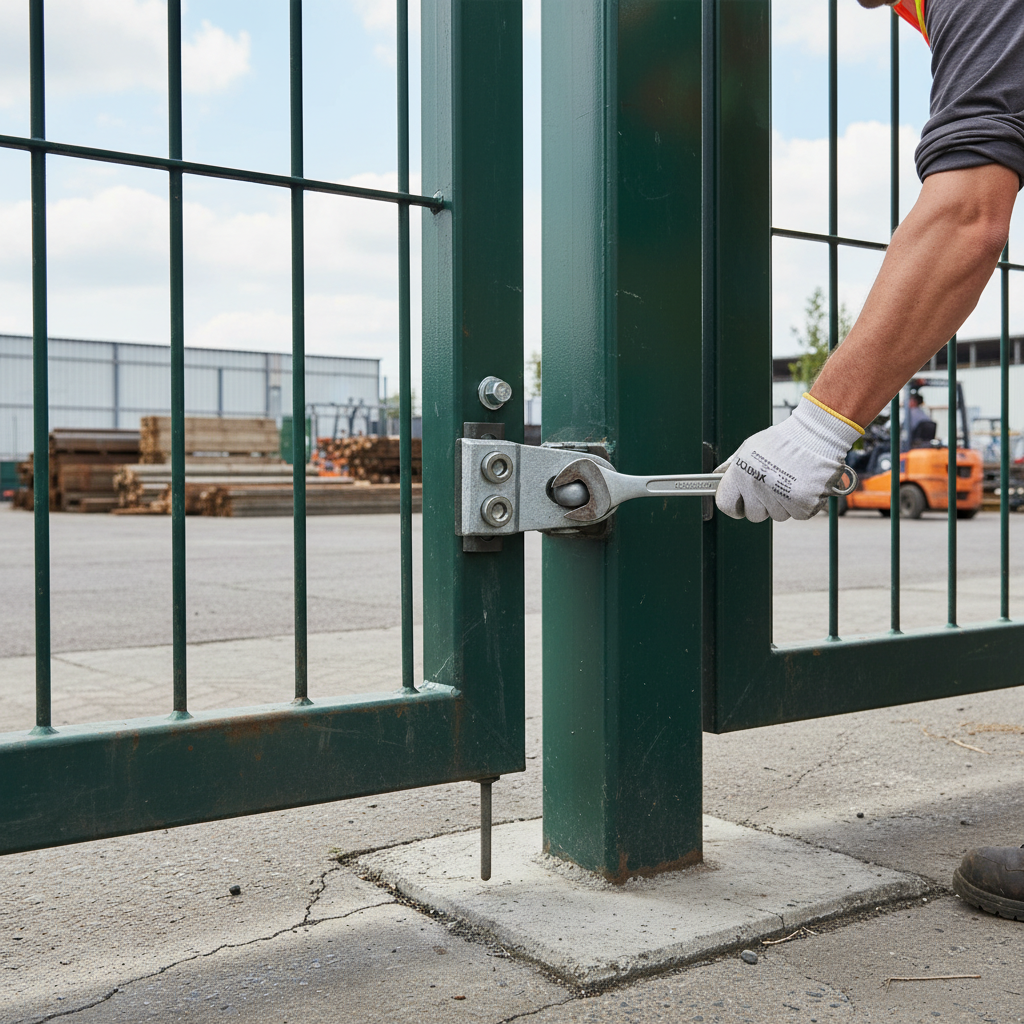

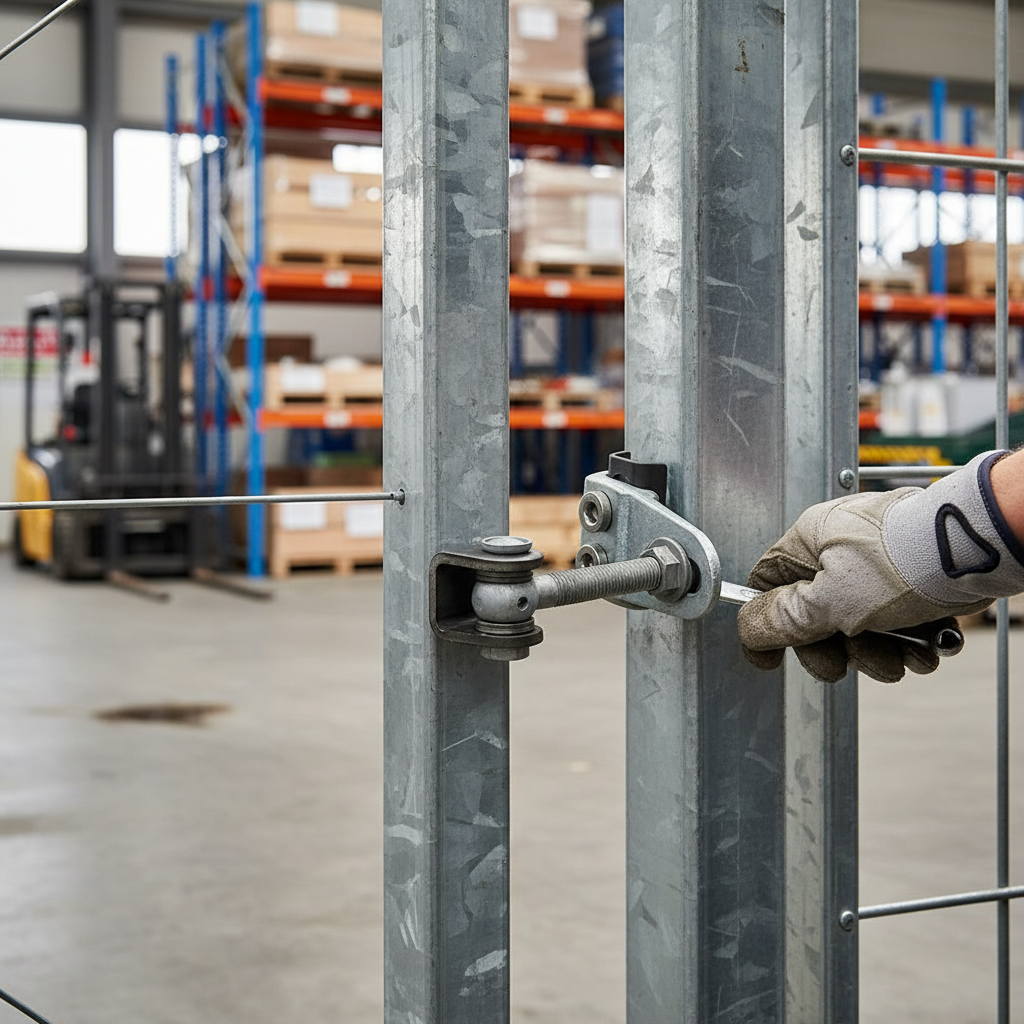

Use two hinges per gate leaf. Weld the grips to the post and the groove plates to the gate stile, one pair near the top and one near the bottom. Fit the eyebolts in the grips, pass them through the slotted ear plates with a nut and washer either side, and screw the ear plates to the groove plates. Stand the gate on packers, set the height in the groove plates, the sideways position in the slots and the gap with the nuts, then tighten everything. Grind the plating off where you weld and paint the welds afterwards.
Care
Grease the eye and check the nuts and screws each spring.
Frequently asked questions
Is the price for one hinge?
Yes, one complete hinge. Most gate leaves need two.
Is it left or right handed?
Neither. The same hinge suits both.
Can I fit a hydraulic gate closer?
Yes. This hinge is designed to work with a hydraulic gate closer on pedestrian and security gates.
Do I have to weld?
Yes, the grip welds to the post and the groove plate welds to the gate. For a no-weld fixing choose the bolt-on hinge pair.
Ordering and delivery
Order online with Express UK Delivery and same-day dispatch on orders before 2pm, Monday to Friday. For larger quantities call 01744 520 110 or email sales@industrialsuppliesco.co.uk and we will confirm stock and delivery before you order.
